BROADCAST TOOLS BT-2X16-DA/RJCONFIGURABLE 2X8 OR 1X16 MONO DISTRIBUTION AMPLIFIER WITH RJ45 I/O PLUS UNBALANCED RCA INPUT.
SKU
BT-2X16-DA-RJ
MFR#
2X16-DA-RJ
was
$439.00
Special Price
$329.00
Availability:
Out of stock
BROADCAST TOOLS BT-2X16-DA/RJCONFIGURABLE 2X8 OR 1X16 MONO DISTRIBUTION AMPLIFIER WITH RJ45 I/O PLUS UNBALANCED RCA INPUT.

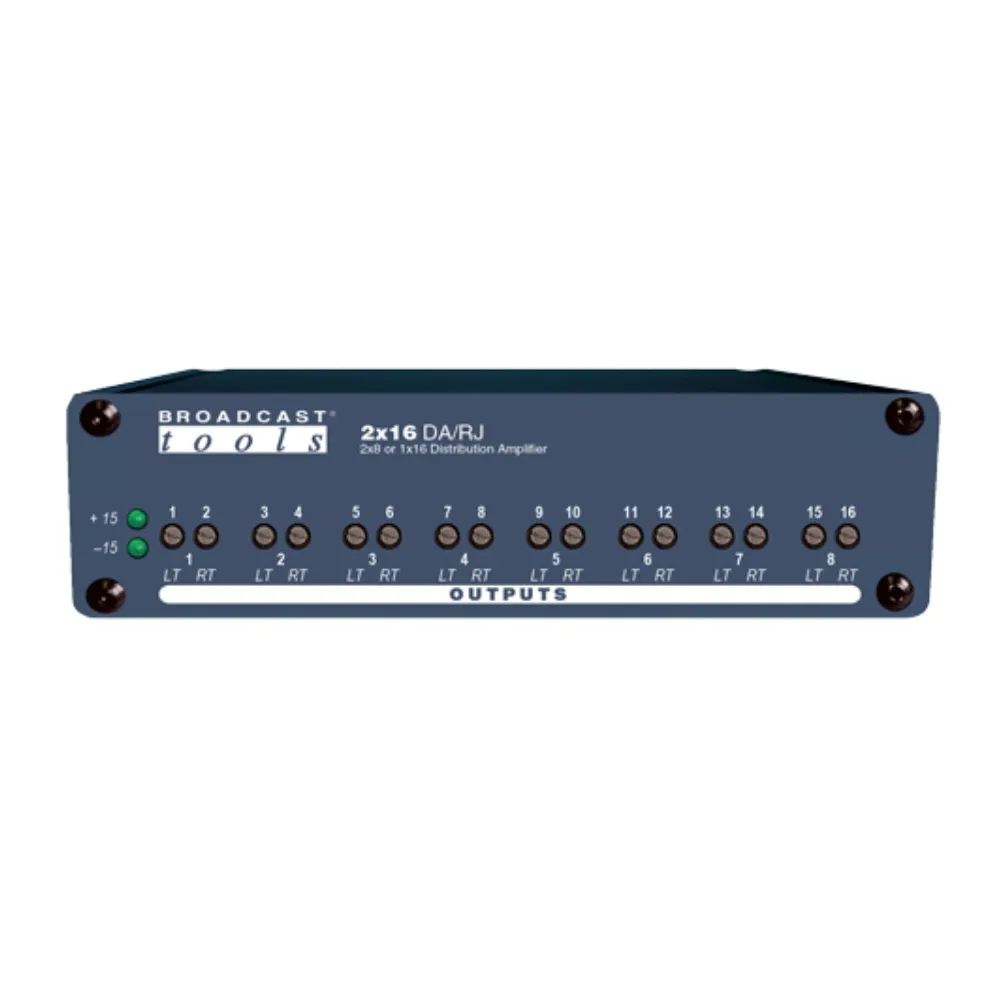

The 2×16 DA/RJ analog stereo distribution amplifier is configurable for stereo (2×8) or monaural (1×16) output via internal jumpers. It is equipped with a stereo line level high-Z input, which accepts either a balanced RJ45 (+4 dBu) or unbalanced RCA (-10 dBV) source with eight active balanced low-Z stereo output amplifiers. Each output amplifier may be paired for stereo operation or each output pair may be summed for monaural operation without affecting the stereo separation of the other outputs. Each output amplifier has a recessed front panel level adjustment trimmer.
Features
- Stereo (2×8) or Monaural (1×16) Output Configurable via Internal Jumpers
- Independent Configuration for Each Output Pair
- Front Panel 12-Turn Output Level Adjustment Trimmers

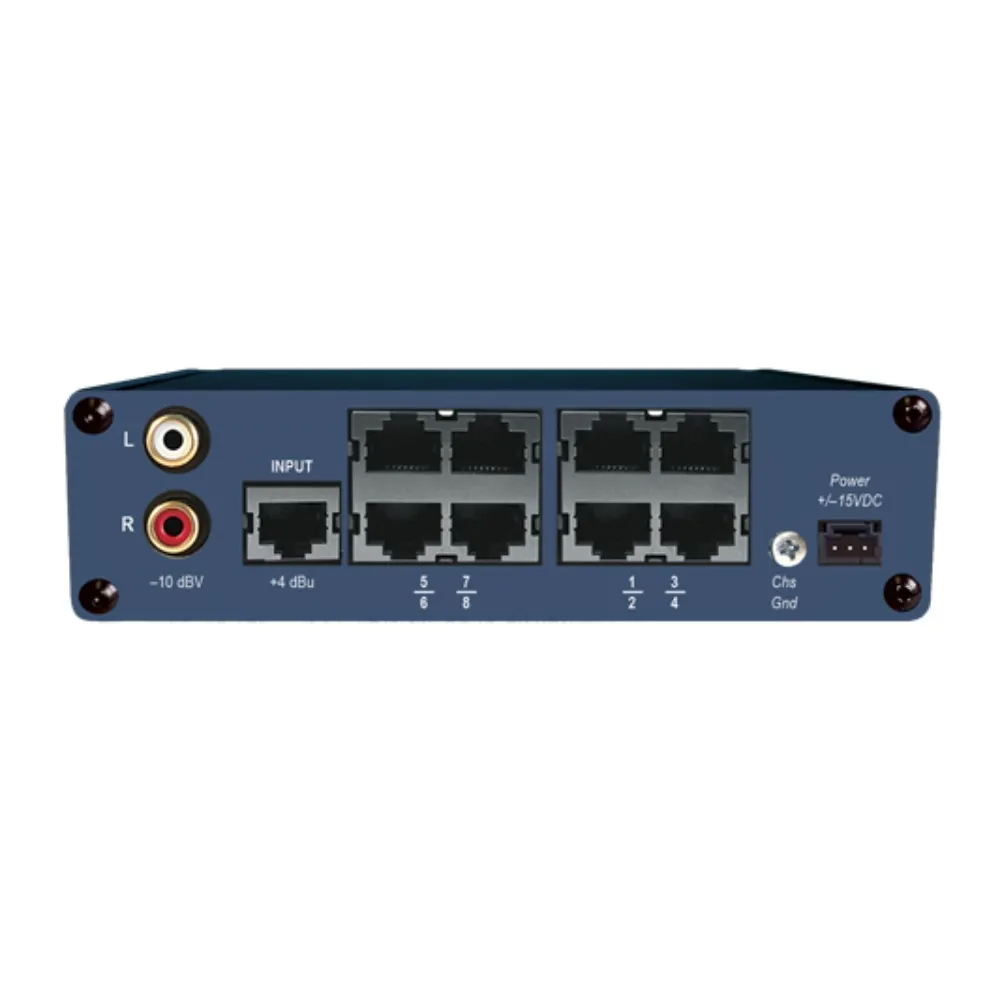

- Balanced +4 dBu RJ45 Audio Input and Unbalanced -10/-15 dBV RCA Input
- Eight RJ45 Audio Output Jacks with Standard Cat5 Audio Pinout
- Fully RFI Proofed Design
- Surge Protected PS-1515 Universal Switching +/-15VDC Desktop Power Supply
- Compatibility with RA-1 Rack Shelf
- Options for Desktop and Wall Mounting
Specifications
- Input Level: -10dBv or +4dBu nominal. +25dBu max, @ 600 Ω.
- Input Impedance: 20K Ω balanced, 10 K Ω unbalanced
- Output Level: +4dBu nominal, + 27dBu max, @ 600 Ω, balanced
- Output Impedance: 100 Ω balanced, 47 Ω unbalanced
- System Gain: 20 dB
- Frequency Response: +/- 0.1dB (22Hz – 22kHz)
- Noise: -98 dBu
- THD+N .002% (22Hz – 22kHz @ +4 dBu)
- IMD .002% (250hz/7kHz)
- Dimensions: 5.66" x 7.125” x 1.58", aluminum extrusion chassis with (4) #6-32 screw thread mounting holes for optional RA-1 rack shelf.
- Options: RA-1 Rack Shelf. 1 RU. Accommodates up to 3 units, filler panels supplied.
