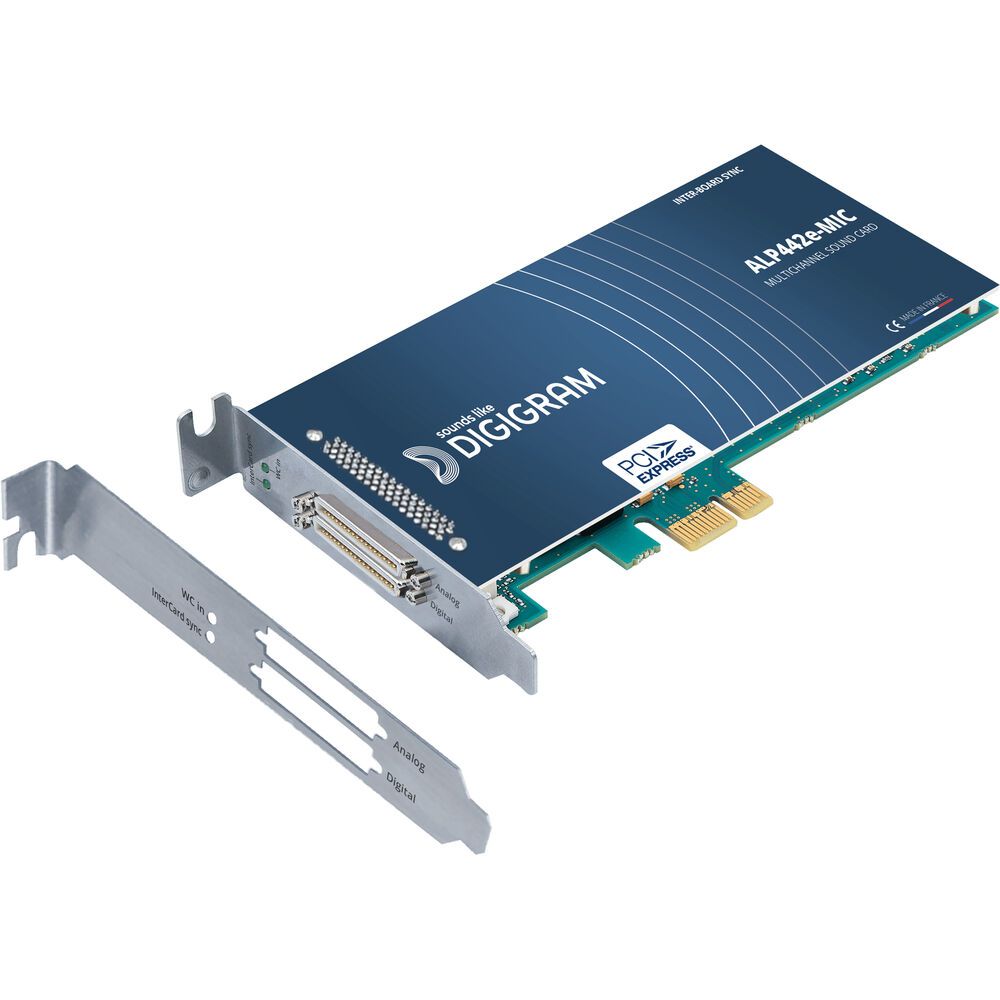

DIGIGRAM ALP442E LOW PROFILE PCIE CARD WITH 4X LINE I/O, 2X AES/EBU I/O WITH SRC ON INPUT FOR WINDOWS AND LINUX (CABLE NOT INCLUDED)

Digigram

SKU

DIG-ALP442E

MFR#

VB2434A0101

$1,490.00

Availability: Out of stock

DIGIGRAM ALP442E LOW PROFILE PCIE CARD WITH 4X LINE I/O, 2X AES/EBU I/O WITH SRC ON INPUT FOR WINDOWS AND LINUX (CABLE NOT INCLUDED)

Be the first to review this product

Description

Features:

For Professional Audio Applications
Fits PCIe Slot, Windows/Linux
4 Mic/Line Analog Inputs
4 Analog Line Outputs
1 AES3 In, 2 AES3 Outs
8 GPIs and 8 GPOs
Wordclock I/O, AES11 Input
24-Bit / 192 kHz AD/DA Conversion
16x16 Onboard Mixer
Low-Latency Drivers

Digigram ALP442e-MICSpecs:

Channels of I/O	Analog: 4 Inputs / 4 Outputs at 44.1/48/88.2/96/176.4/192 kHz Digital: 2 Inputs / 4 Outputs at 44.1/48/88.2/96/176.4/192 kHz
Built-In DSP	No
Maximum Sampling Rate	192 kHz / 32-Bit (PCM)
Number of Microphone Inputs	No
Built-In Microphone	No
Gain/Trim Range	XLR Line Inputs: -24 dB to +16 dB (in 0.5 dB Steps) XLR Line Outputs: -90 dB to +12 dB XLR Mic Inputs: 0 dB to +56 dB (in 0.5 dB Steps) XLR Digital Inputs: -90 dB to +12 dB (in 0.1 dB Steps) XLR Digital Outputs: -90 dB to +12 dB (in 0.1 dB Steps)
High-Pass Filter	No
Solo/Mute	No
Analog Audio I/O	4x XLR 3-Pin Balanced/Unbalanced Line Input (on Optional Breakout Cable) 4x XLR 3-Pin Balanced/Unbalanced Line Output (on Optional Breakout Cable)
Phantom Power	48 V, Selectable On/Off
Digital Audio I/O	4x XLR 3-Pin AES3 In & Out (on Optional Breakout Cable)
Host Connection	No
Host Connection Protocol	PCIe
USB (Non-Host)	No
Sync I/O	2x BNC Word Clock Input or Output (on Optional Breakout Cable)
Network I/O	No
MIDI I/O	No
Expansion Slots	No
Other I/O	2x DB-25 GPIO In/Out (on Optional Breakout Cable)
Wireless	No
Frequency Response	XLR Line Inputs: 20 Hz to 20 kHz ±0.83 dB (at 48 kHz) 10 Hz to 20 kHz ±2.72 dB (at 48 kHz) XLR Line Outputs: 10 Hz to 20 kHz ±0.57 dB
Maximum Input Level	XLR Line Inputs: +24 dBu XLR Mic Inputs: +10 dBu
Maximum Output Level	XLR Line Outputs: +24 dBu
Impedance	XLR Mic/Line Inputs: > 10 Kilohms (Balanced) XLR Line Outputs: < 100 Ohms (Balanced)
SNR	XLR Line Inputs: > 115 dBA (Unweighted) > 112 dB (Unweighted) XLR Line Outputs: > 109 dBA (Unweighted) > 106 dB (Unweighted)
THD+N	XLR Line Inputs: < -98 dB (At 22 dBu, 1 kHz) XLR Line Outputs: < -96 dB (At 22 dBu, 1 kHz)
EIN	XLR Mic Inputs: < -124 dB (at +56 dB Gain, 48 kHz)
Sample Rates	AES3: 32 / 44.1 / 48 / 64 / 88.2 / 96 / 128 / 176.4 / 192 kHz (PCM)
Bit Depths	8 / 16 / 24 / 32-Bit / 32-Bit Float (PCM)
Sync Sources	AES11, Internal, Word Clock
Media/Memory Card Slot	No
OS Compatibility	Windows 10 or Later Linux
Mobile App Compatible	No
Required Hardware	PCIe Card Slot
Power Requirements	PCIe
