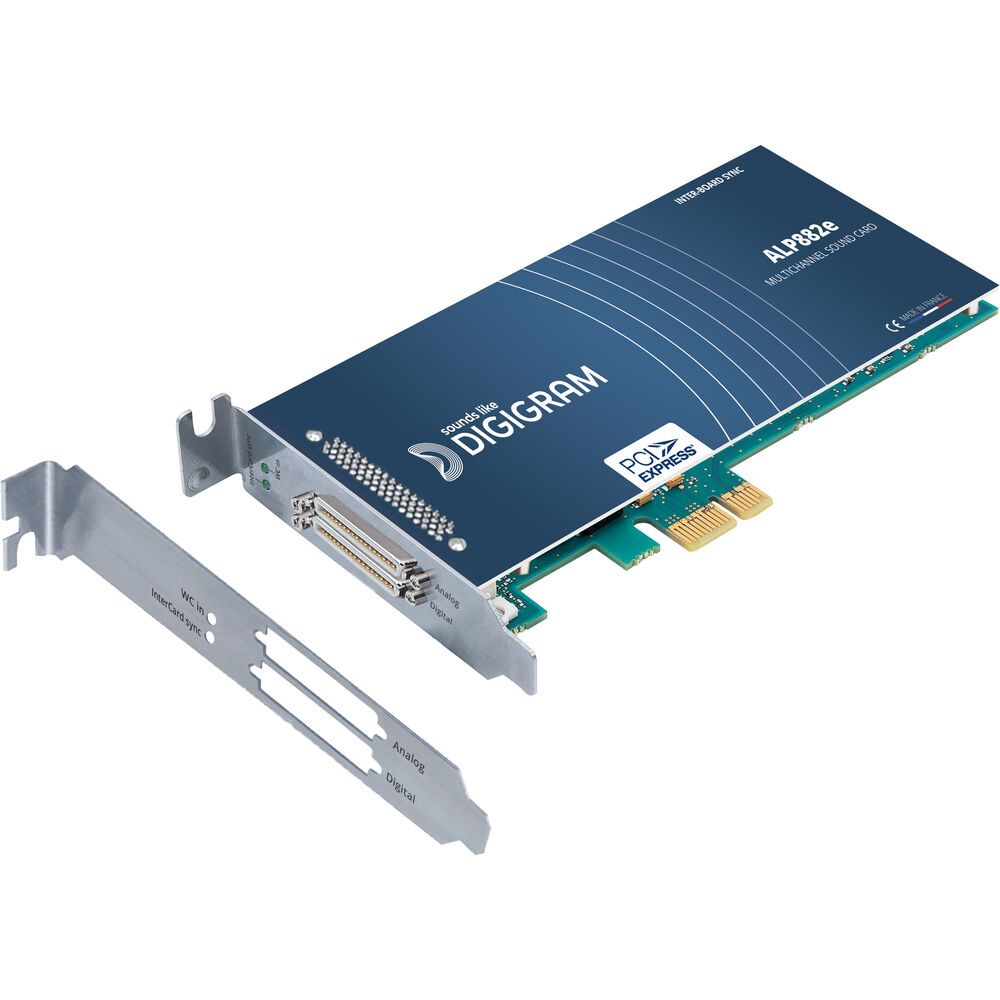

DIGIGRAM ALP882E LOW PROFILE PCIE CARD WITH 8X LINE I/O, 4X AES/EBU I/O WITH SRC ON INPUT FOR WINDOWS AND LINUX (CABLE NOT INCLUDED)
SKU
DIG-ALP882e
MFR#
VB2432A0101
$2,590.00
Availability:
Out of stock
DIGIGRAM ALP882E LOW PROFILE PCIE CARD WITH 8X LINE I/O, 4X AES/EBU I/O WITH SRC ON INPUT FOR WINDOWS AND LINUX (CABLE NOT INCLUDED)
Part of the ALP-X professional sound-card range, the Digigram ALP882e is a versatile, 8-channel PCIe sound card designed for professional PC-based audio systems running Windows or Linux environments. ALP882e is a reliable and stable match for applications such as broadcast (24/7/365), audio production, and outstanding audio quality measurements.
The low-profile ALP882e is equipped with 8 balanced analog line inputs plus 4 stereo AES3 inputs, 8 balanced analog line outputs plus 4 AES3 outputs, 8 GPIs, and 8 GPOs. The zero-latency onboard FPGA 32x32 mixer (8 analog, 8 AES3, 16 software play/record) enables you to route and mix audio channels from physical and software input devices to physical and software output devices. The low-latency drivers are multicard (up to 8 ALP cards) and multiclient. Breakout cables for analog I/Os and digital I/Os are available separately.
Features:
- For Professional Audio Applications
- Fits PCIe Slot, Windows/Linux
- 8 Analog Line Inputs
- 8 Analog Line Outputs
- 4 Stereo AES3 I/Os
- 8 GPIs and 8 GPOs
- Wordclock I/O, AES11 Input
- 24-Bit / 192 kHz AD/DA Conversion
- 32x32 Onboard Mixer
- Low-Latency Drivers
Digigram ALP882ESpecs:
| Channels of I/O | Analog: 8 Inputs / 8 Outputs at 44.1/48/88.2/96/176.4/192 kHz Digital: 8 Input / 8 Output at 44.1/48/88.2/96/176.4/192 kHz |
| Built-In DSP | No |
| Maximum Sampling Rate | 192 kHz / 32-Bit (PCM) |
| Number of Microphone Inputs | No |
| Built-In Microphone | No |
| Gain/Trim Range | XLR Line Inputs: -24 dB to +16 dB (in 0.5 dB Steps, XLR Connector on Optional Cable) XLR Line Outputs: -90 dB to +12 dB (XLR Connector on Optional Cable) XLR Digital Inputs/Outputs: -90 dB to +12 dB (XLR/AES3 Connector on Optional Cable) |
| High-Pass Filter | No |
| Solo/Mute | No |
| Analog Audio I/O | 8x XLR 3-Pin Balanced Line Input (on Optional Breakout Cable) 8x XLR 3-Pin Balanced Line Output (on Optional Breakout Cable) |
| Digital Audio I/O | 8x XLR 3-Pin AES3 In & Out (on Optional Breakout Cable) |
| Host Connection | No |
| Host Connection Protocol | PCIe |
| USB (Non-Host) | No |
| Sync I/O | 2x BNC Word Clock Input or Output (on Optional Breakout Cable) |
| Network I/O | No |
| MIDI I/O | No |
| Expansion Slots | No |
| Other I/O | 2x DB-25 GPIO In/Out (on Optional Breakout Cable) |
| Wireless | No |
| Frequency Response | XLR Line Inputs: 20 Hz to 20 kHz ±0.83 dB (at 48 kHz) XLR Line Outputs: 10 Hz to 20 kHz ±0.57 dB (at 48 kHz) |
| Maximum Input Level | XLR Line Inputs: +24 dBu (Connector on Optional Cable) |
| Maximum Output Level | XLR Line Outputs: +24 dBu (Connector on Optional Cable) |
| Impedance | XLR Line Inputs: > 10 Kilohms (Balanced) XLR Line Outputs: < 100 Ohms (Balanced) |
| SNR | XLR Line Inputs: > 115 dBA > 112 dB (Unweighted) XLR Line Outputs: > 109 dBA > 106 dB (Unweighted) |
| THD+N | XLR Line Inputs: < -98 dB (At 22 dBu, 1 kHz) XLR Line Outputs: < -96 dB (At 22 dBu, 1 kHz) |
| EIN | XLR Mic Inputs: < -124 dB (at +56 dB Gain, 48 kHz) |
| Sample Rates | AES3: 32 / 44.1 / 48 / 64 / 88.2 / 96 / 128 / 176.4 / 192 kHz (PCM) |
| Bit Depths | 8 / 16 / 24 / 32-Bit / 32-Bit Float (PCM) |
| Sync Sources | AES11, Internal, Word Clock |
| Media/Memory Card Slot | No |
| OS Compatibility | Windows 10 or Later Linux |
| Mobile App Compatible | No |
| Required Hardware | PCIe Card Slot |
| Power Requirements | PCIe |
