MACKIE 2404VLZ4 24-CHANNEL 4-BUS FX MIXER WITH USB
SKU
MAC-2404VLZ4
MFR#
2040769-00
$1,349.99
Availability:
Out of stock

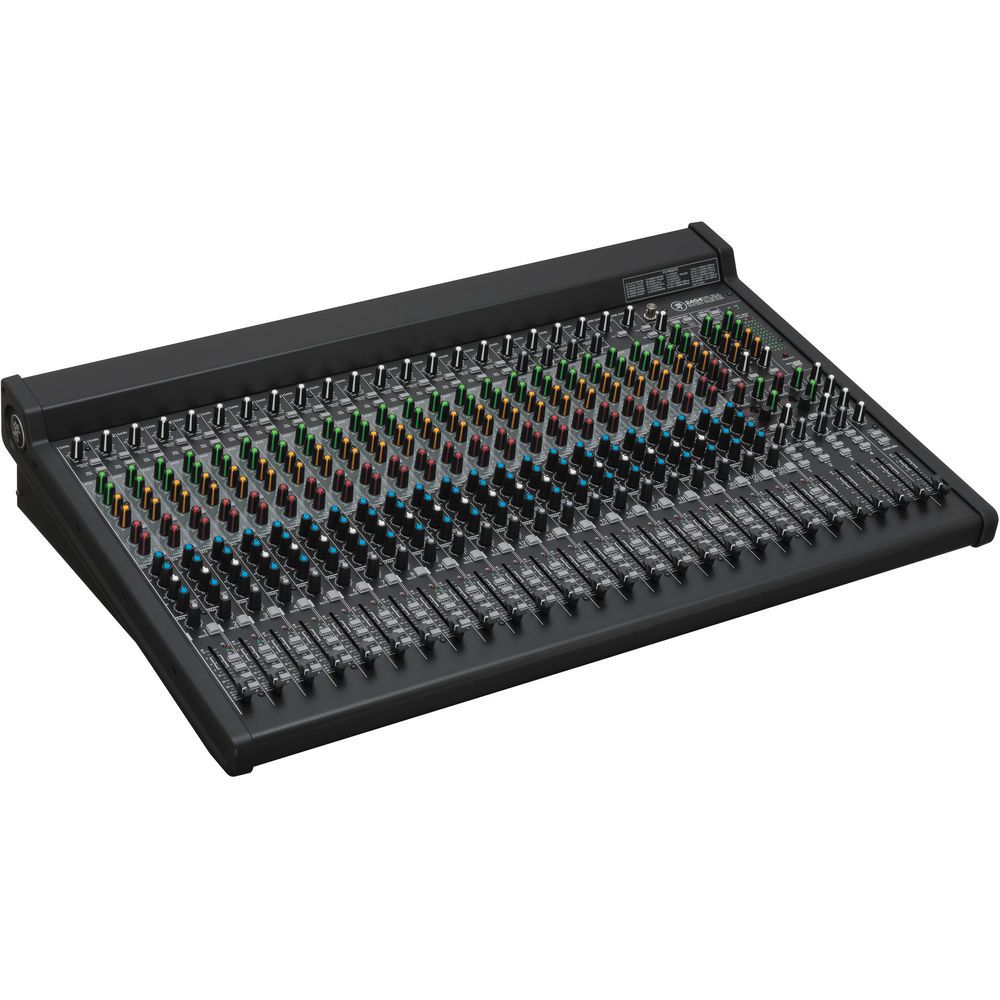

MACKIE 2404VLZ4 24-CHANNEL 4-BUS FX MIXER WITH USB
The Mackie 2404VLZ4 24-Channel 4-Bus FX Mixer with USB from the VLZ4 4-Bus Series features Onyx microphone preamps in a high-headroom / low-noise 4-bus design with a feature set suitable for live sound. The mixer is equipped with dual 32-bit RMFX+ effect processors, each with 24 effects including tap delay. It also includes compression on dedicated channels and subgroups that allow for simple, sweet dynamic control.
Additionally, both of the FX processors feature a tap delay and the delays may easily be synchronized with the song at the tap of a finger. The processed signal may be sent directly to the mains and monitors from the effects section or re-routed to the 2 stereo channels to bring them through the EQ and AUX section, utilizing the 60mm fader to draw them into the mix.
Key Features
- For Sound Reinforcement
- Onyx Mic Preamps
- 3-Band EQ with Sweepable Mid-Range
- Improved RF Rejection
- Phantom Power for Condenser Mics
- PFL / AFL Solo Modes
- 12-Segment Stereo Meters
- 60mm Log-Taper Faders
- Universal Power Supply
Mackie 2404-VLZ4Specs
| Noise |
Main Mix Noise:
Main Mix Fader at Unity, Channel Faders Down: -87 dBu (-91 dB signal to noise ratio, ref +4 dBu) Main Mix Fader at Unity, Channel Faders at Unity: -81.5 dBu (20 Hz to 20 kHz bandwidth, 1/4" main out, channel gains at unity, channel EQs flat, all channels assigned to main mix, odd channels panned left, even channels panned right) |
| Total Harmonic Distortion (THD) |
Microphone In to Insert Send: <0.001%
Microphone In to Main Out: <0.005% (1 kHz at 15 dB gain, 20 Hz to 20 kHz bandwidth) |
| Crosstalk / Attenuation |
Channel Mute Switch Engaged: -90 dBu
Channel Fader Down: -88 dBu (1 kHz relative to +10 dBu, 20 Hz to 20 kHz bandwidth, microphone in, 1/4" main out, gain at unity) |
| Frequency Response |
Microphone input to main output (gain at unity)
+0, -1 dB, 20 Hz to 50 kHz +0, -3 dB, <10 Hz to >100 kHz |
| Equivalent Input Noise |
150 Ω Termination: -128.5 dBu, 20 Hz to 20 kHz
Microphone input to insert send out, maximum gain |
| Common Mode Rejection Ratio |
Better than -70 dB at 1 kHz
|
| Maximum Level |
Microphone In: +21 dBu
All Other Inputs: +21 dBu Main Mix XLR Out: +27 dBu All Other Outputs: +21 dBu |
| Impedance |
Microphone In: 2.7 kΩ
Channel Insert Return: 2.5 kΩ All Other Inputs: 10 kΩ or greater Tape Out: <10 Ω All Other Outputs: 120 Ω |
| Equalizer |
3-Band EQ (Mono Channels):
High Shelving: ±15 dB at 12 kHz Mid Peaking: ±15 dB sweep 100 Hz to 8 kHz Low Shelving: ±15 dB at 80 Hz Low Cut Filter: 18 dB/octave, -3 dB at 100 Hz 4-Band EQ (Stereo Channels): High Shelving: ±15 dB at 12 kHz Hi Mid Peaking: ±15 dB at 2.5 kHz Low Mid Peaking: ±15 dB at 400 Hz Low Shelving: ±15 dB at 80 Hz |
| USB |
Format: USB 1.1
I / O: Stereo Input, 4-Channel Output A / D / A: 24 bit, 44.1 kHz / 48 kHz |
| Power Consumption |
55 W, 100 to 120 VAC, 50 to 60 Hz
|
| Operating Temperature |
32 to 104°F (0 to 40°C)
|
| Dimensions |
Height:
Front: 1.8" (46.3 mm) Rear: 6" (153 mm) W x D: 29.4 x19.1" (748.0 x 486.0 mm) |
| Weight |
31.0 lb (14.1 kg)
|
