MACKIE 1604VLZ4 16-CHANNEL COMPACT 4-BUS MIXER
SKU
MAC-1604VLZ4
MFR#
2040765-00
$1,049.99
Availability:
Out of stock

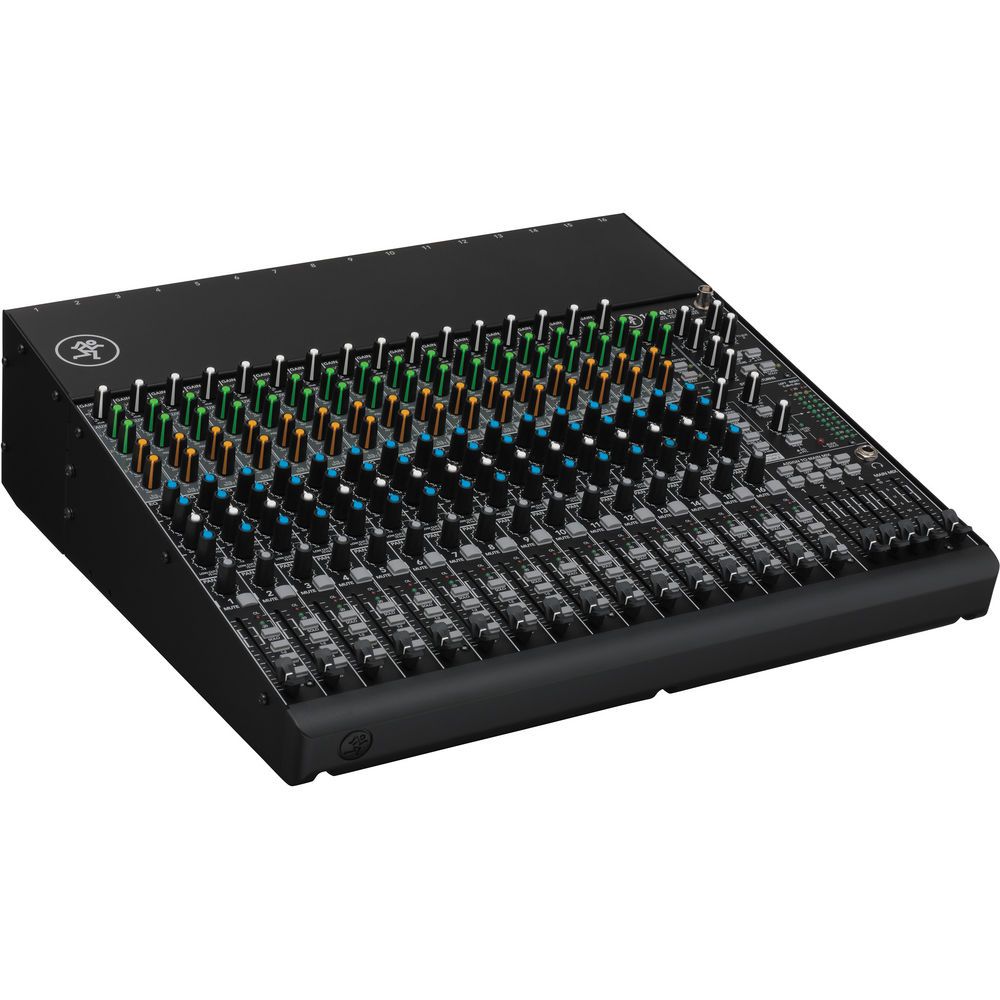

MACKIE 1604VLZ4 16-CHANNEL COMPACT 4-BUS MIXER
The Mackie 1604VLZ4 16-Channel 4-Bus Compact Mixer includes a combination of Onyx preamps and a high-headroom / low-noise design. All 16 channels feature an Onyx microphone preamplifier, line input, and insert in a compact 4-bus design built for application flexibility and professional performance.
The mixer is built-like-a-tank with a rugged solid-steel chassis and high-contrast controls for tactile control. It is a band-friendly analog mixer used in professional broadcast and post facilities. The 1604VLZ4 includes a pair of rack ears and a power cord.
Key Features
- For Sound Reinforcement Applications
- 16x Onyx Preamps
- 3-Band EQ
- LED Meter
- 48V Phantom Power
- Low Noise, High Headroom
- Solid Steel Chassis
- Multi-Voltage Power Supply
- Includes Rack Ears
Mackie 1604-VLZ4Specs
| Noise |
Main Mix Noise:
Main Mix Fader @ Unity, Channel Faders Down: -88.5 dBu (92 dB signal-to-noise ratio, ref +4 dBu) Main Mix Fader @ Unity, Channel Faders @ Unity: -82.5 dBu (20 Hz to 20 kHz bandwidth, 1/4" main out, channel gains at unity, channel EQs flat, all channels assigned to main mix, odd channels panned left, even channels panned right) |
| Total Harmonic Distortion (THD) |
Microphone In to Insert Send: <0.0007%
Microphone In to Main Out: <0.005% (1 kHz @ 35 dB gain, 20 Hz to 20 kHz bandwidth) |
| Crosstalk / Attenuation |
Channel Mute Switch Engaged: -84 dBu
Channel Gain Knob Down: -84 dBu (1 kHz relative to 0 dBu, 20 Hz to 20 kHz bandwidth, line in, 1/4" main out, gain @ unity) |
| Frequency Response |
Microphone Input to Main Output (Gain @ Unity):
+0, -1 dB, 20 Hz to 50 kHz +0, -3 dB, <10 Hz to >100 kHz |
| Equivalent Input Noise |
150 Ω Termination: -128.5 dBu, 20 Hz to 20 kHz
Microphone input to insert send out, maximum gain |
| Common Mode Rejection Ratio |
Better than -70 dB @ 1 kHz
|
| Maximum Level |
Microphone In: +22 dBu
All Other Inputs: +22 dBu Main Mix TRS Out: +28 dBu All Other Outputs: +22 dBu |
| Impedance |
Microphone In: 2.5 kΩ
Channel Insert Return: 2.5 kΩ All Other Inputs: 10 kΩ or greater Tape Out: 1.1 kΩ All Other Outputs: 120 Ω |
| Equalizer |
High Shelving: ±15 dB @ 12 kHz
Mid Peaking: ±15 dB sweep 100 Hz to 8 kHz Low Shelving: ±15 dB @ 80 Hz Low Cut Filter: 18 dB/octave, -3 dB @ 75 Hz |
| Power Consumption |
50 W, 100 to 120 VAC, 50 to 60 Hz
|
| Operating Temperature |
32 to 104°F (0 to 40°C)
|
| Fuse Rating |
100 to 120V: 1 A slo blo, 5 x 20 mm
220 to 240V: 0.5 A slo blo, 5 x 20 mm |
| Dimensions |
17.0 x 17.3 x 5.1" (433.0 x 440.0 x 129.0 mm)
|
| Weight |
20.0 lb (9.1 kg)
|
