MACKIE 1642VLZ4 16-CHANNEL COMPACT 4-BUS MIXER
SKU
MAC-1642VLZ4
MFR#
2040766-00
$799.99
Availability:
Out of stock

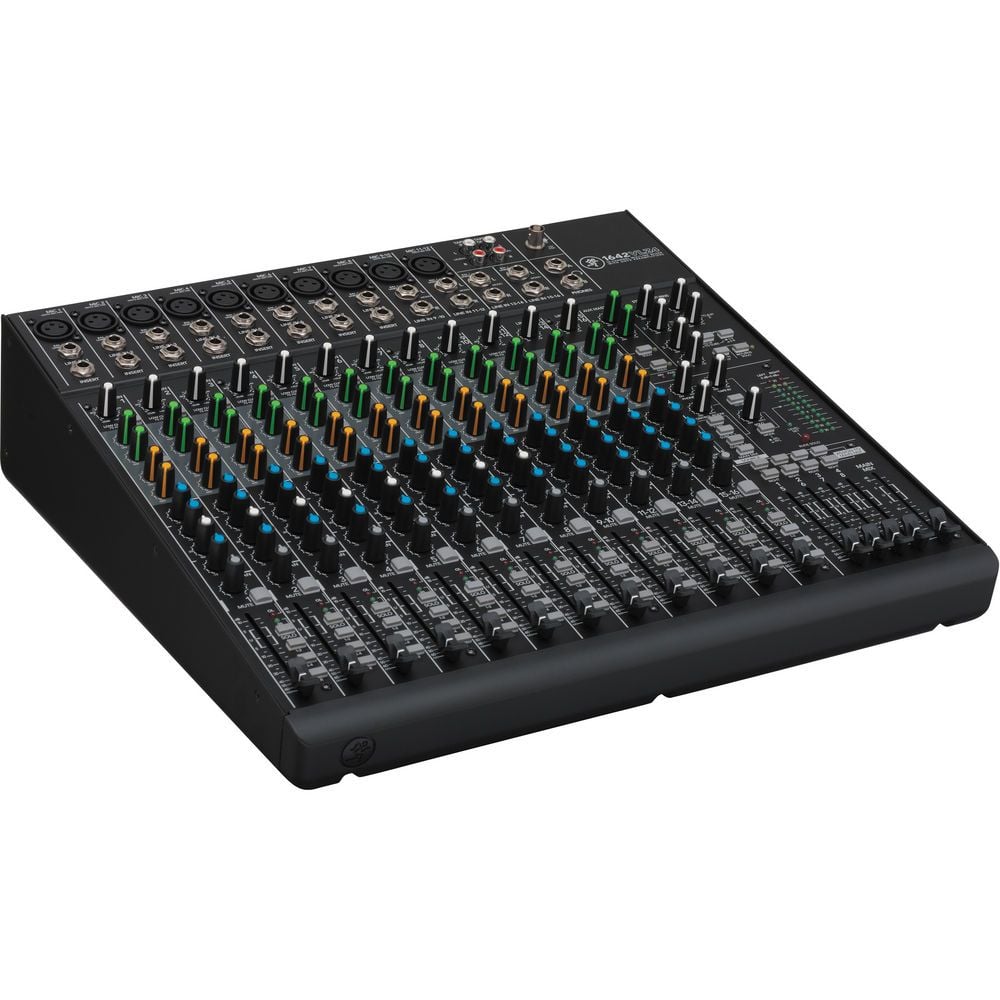

MACKIE 1642VLZ4 16-CHANNEL COMPACT 4-BUS MIXER
The Mackie 1642VLZ4 16-Channel 4-Bus Compact Mixer delivers the proven performance of Onyx preamps in a compact 4-bus mixer design, suitable for bands, clubs, and more. From every input to every output, the mixer is designed to provide the highest headroom and lowest noise possible for maximum signal integrity.
The mixer is built-like-a-tank with a rugged solid-steel chassis and high-contrast controls for tactile control. With features like an expanded return section for no-hassle system integration and a dedicated control room section, the 1642VLZ4 16-Channel 4-Bus Compact Mixer is the go-to mixer choice for any application that demands flexibility and professional performance.
Key Features
- For Sound Reinforcement Applications
- 10x Onyx Preamps
- 3-Band EQ
- LED Meter
- 48V Phantom Power
- Low Noise, High Headroom
- Solid Steel Chassis
- Multi-Voltage Power Supply
Mackie 1642-VLZ4Specs
| Number of Analog Input Channels |
16 (8 Mono / 4 Stereo)
|
| Number of Mic Preamps |
10
|
| Analog Output Channels |
2x Stereo Master Output
1x Mono Master Output 1x Stereo Control Room/Monitor Output 4x Stereo Bus/Subgroup Output 4x Mono Aux Send Output 8x Mono Direct Output 1x Stereo Tape/Record Output 2x Stereo Headphone Output |
| Mix Routing |
Stereo Main Mix / Aux Bus/Subgroup
|
| Faders & Level Adjustment |
12x 2.4" / 60 mm Channel Fader
1x Master Fader |
| Meters |
Main Meter:
2x 12-Segment LED Channel Meter: 2x 2-Segment LED |
| Gain/Trim Range |
60 dB
|
| Dynamic Processing |
No
|
| Sidechain Filters |
No
|
| EQ |
3-Band EQ (Mono Channels)
4-Band EQ (Stereo Channels) |
| EQ Parameters |
Mono Channels:
High: ±15 dB at 12 kHz (Shelving) Mid: ±15 dB at 100 Hz to 8 kHz (Semi-Parametric) Low: ±15 dB at 80 Hz (Shelving) Stereo Channels: High: ±15 dB at 12 kHz (Shelving) Hi-Mid: ±15 dB at 2.5 kHz (Notch/Peak) Lo-Mid: ±15 dB at 400 Hz (Notch/Peak) Low: ±15 dB at 80 Hz (Shelving) |
| Graphic EQ |
No
|
| Filters |
Low-Pass: 75 Hz, 18 dB/Octave
|
| Solo/Mute |
No
|
| Built-In Effects |
No
|
| Frequency Response |
Mic Input to Main Output:
20 Hz to 50 kHz +0/-1 dB (Unity Gain) 10 Hz to 100 kHz +0/-3 dB (Unity Gain) |
| Max Input Level |
Mic Input:
+22 dBu Line Input: +22 dBu |
| I/O Impedance |
Mic Input:
2.5 Kilohms Insert Return: 2.5 Kilohms Line Input: ≥ 10 Kilohms Tape Output: 1.1 Kilohms Main Output: 120 Ohms |
| Crosstalk |
Adjacent Channels, Muted:
-82 dBu at 1 kHz (Min Gain, 20 Hz to 20 kHz) |
| CMRR |
> -70 dB (1 kHz)
|
| EIN |
-128.5 dBu at Max Gain (150-Ohm Input)
|
| Noise Floor |
Main Output:
-86.5 dBu (Master Level at Unity, Channel Levels at -∞, 92 dB SNR, Ref +4 dBu) -86 dBu (Master Level at Unity, Channel Levels at Unity) |
| THD |
Mic Input to Insert Send:
< 0.0007% at +35 dB Gain (1 kHz) |
| Analog Inputs |
10x XLR 3-Pin Balanced Mic Input
8x 1/4" TRS Balanced/Unbalanced Line Input 8x 1/4" TRS Alt Insert 2x 1/4" TRS Aux Insert 8x 1/4" Stereo Line Input (4 Stereo Pairs) 1x Stereo RCA Coaxial Unbalanced Stereo Aux Input (1 Stereo Pair) 8x 1/4" TRS Balanced/Unbalanced Stereo Aux Return (4 Stereo Pairs) |
| Analog Outputs |
8x 1/4" TRS Balanced/Unbalanced Line Output
2x XLR 3-Pin Balanced Stereo Main Output 1x 1/4" TRS Mono Main Output 4x 1/4" TRS Balanced/Unbalanced Aux Send 2x 1/4" TRS Balanced/Unbalanced Stereo Control Room Output 8x 1/4" TRS Balanced/Unbalanced Subgroup Output 2x 1/4" TRS Balanced/Unbalanced Stereo Main Output 2x 1/4" TRS Headphone Output 1x Stereo RCA Coaxial Unbalanced Tape Output (1 Stereo Pair) |
| Phantom Power |
+48 V
|
| Digital I/O |
No
|
| Wireless |
No
|
| AC Input Power |
100 to 120 VAC, 50 / 60 Hz (T 1 A 250 V)
220 to 240 VAC, 50 / 60 Hz (T .5 A 250 V) |
| AC Power I/O |
1x IEC
|
| Power Supply Output |
Included
|
| Power Consumption |
50 W
|
