MACKIE MIX12FX 12-CHANNEL COMPACT MIXER W/ FX
SKU
MAC-MIX12FX
MFR#
2044096-00
$149.99
Availability:
Out of stock

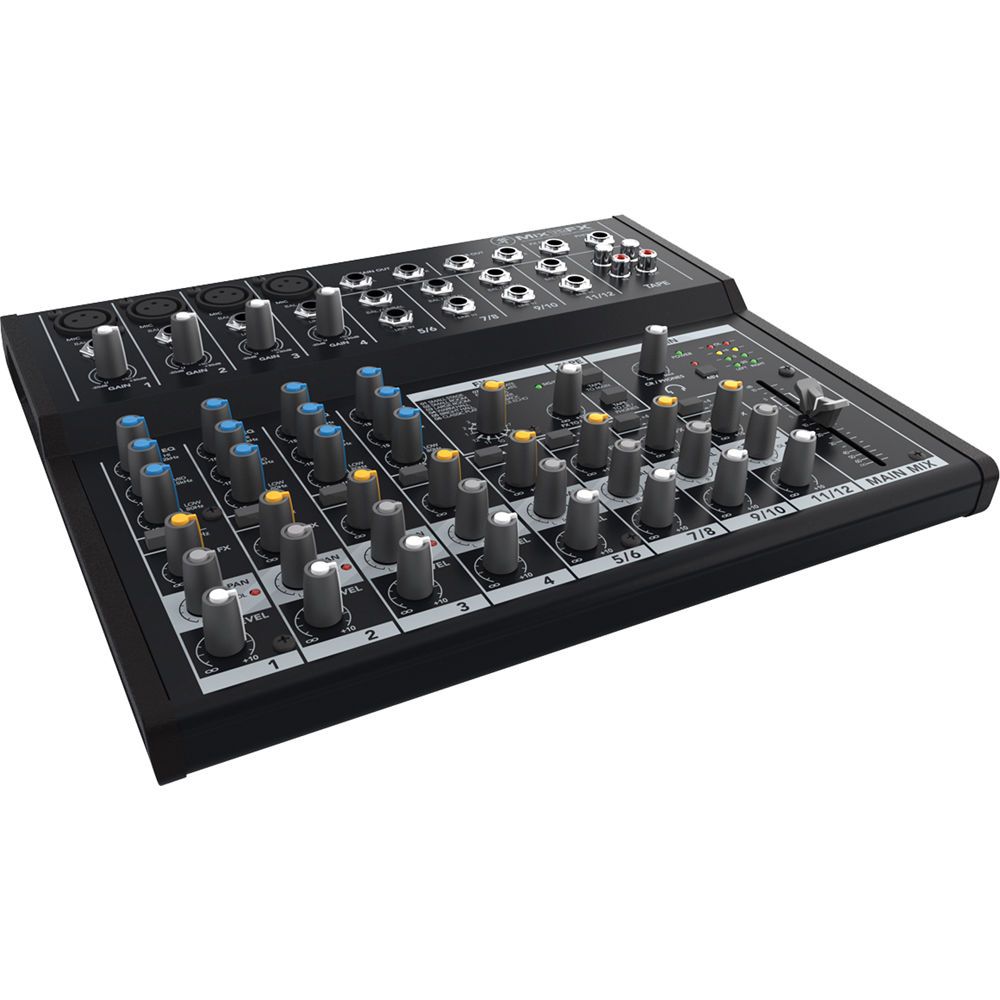

MACKIE MIX12FX 12-CHANNEL COMPACT MIXER W/ FX
The Mackie Mix12FX is a 12-channel compact mixer with built-in effects that features high quality components, a rugged metal chassis, and is designed for a variety of sound reinforcement applications. The mixer features four mic/line inputs with 48V phantom power and four stereo 1/4" line inputs, capable of accommodating dynamic and condenser microphones, keyboards, DJ setups, portable music players, and more.
Each of the four mic/line inputs is equipped with XLR and 1/4" connectors, a dedicated 3-band EQ, high-pass filter at 75 Hz, pan, level control and an LED overload indicator. The four stereo 1/4" line inputs each feature +4/-10dB operation, level control, balance control and also have an LED overload indicator.
Key Features
- 4 Mic/Line Inputs with 3-Band EQ & HPF
- 4 Stereo 1/4" Line Inputs
- Stereo RCA Tape Inputs & Outputs
- Pan, Level & Overload Indication
- 48V for Condenser Mics
- 12 FX - Reverbs, Choruses & Delays
- Dedicated Stereo RCA Inputs
- Headphone & Stereo Control Room Outs
- Compact & Portable
Mackie MIX12FXSpecs
| Number of Analog Input Channels |
12 (4 Mono / 4 Stereo)
|
| Number of Mic Preamps |
4
|
| Analog Output Channels |
1x Stereo Master Output
1x Stereo Control Room/Monitor Output 1x Mono FX Send Output 1x Stereo Tape/Record Output 1x Stereo Headphone Output |
| Mix Routing |
Stereo FX Send / Stereo Main Mix
|
| Faders & Level Adjustment |
8x Channel Knob
1x Master Fader 1x FX Knob |
| Meters |
Main Meter:
1x 4-Segment LED |
| Gain/Trim Range |
-10 Up to +4 dB
|
| Dynamic Processing |
No
|
| Sidechain Filters |
No
|
| EQ |
3-Band EQ
|
| EQ Parameters |
High: ±15 dB at 12 kHz (Shelving)
Mid: ±15 dB at 2.5 kHz (Notch/Peak) Low: ±15 dB at 80 Hz (Shelving) |
| Graphic EQ |
Yes
|
| Filters |
Low-Pass: 75 Hz, 18 dB/Octave
|
| Solo/Mute |
No
|
| Built-In Effects |
Yes
|
| Frequency Response |
Mic Input to Output:
20 Hz to 30 kHz +0/-1 dB (Unity Gain) |
| Max Input Level |
XLR Mic Input:
+19 dBu Line Input: +21 dBu |
| I/O Impedance |
Mic Input:
3.8 Kilohms Line Input: ≥ 10 Kilohms Tape Output: 1 Kilohms Headphone Output: 22 Ohms Main Output: 120 Ohms (Unbalanced) 240 Ohms (Balanced) |
| Crosstalk |
Input to Output:
-85 dB at 1 kHz (20 Hz to 20 kHz) Master Fader Off: -75 dB at 1 kHz |
| CMRR |
> -70 dB at Max Gain (1 kHz, Mic In to Insert Send Out)
|
| EIN |
-122 dBu at Max Gain
|
| Noise Floor |
All Outputs:
-100 dBu (Master Level at -∞, Channel Levels at -∞) -90 dBu (Master Level at Unity, Channel Levels at -∞) -85 dBu (Master Level at Unity, One Channel Level at Unity) |
| THD+N |
Mic Input to Main Output:
< 0.25% (+4 dBu) |
| Analog Inputs |
4x XLR 3-Pin Balanced/Unbalanced Mic Input
4x 1/4" TRS Balanced/Unbalanced Line Input 8x 1/4" TRS Balanced/Unbalanced Stereo Line Input (4 Stereo Pairs) 1x Stereo RCA Coaxial Unbalanced Stereo Tape Input (1 Stereo Pair) |
| Analog Outputs |
2x 1/4" TRS Stereo Main Output (1 Stereo Pair)
2x 1/4" TRS Stereo Control Room Output (1 Stereo Pair) 1x 1/4" TRS Stereo Output 1x 1/4" Alt Send 1x Stereo RCA Coaxial Unbalanced Stereo Tape Output (1 Stereo Pair) |
| Phantom Power |
No
|
| Digital I/O |
No
|
| Wireless |
No
|
