MACKIE PROFX6V3 6 CHANNEL PROFESSIONAL EFFECTS MIXER WITH USB
SKU
MAC-PROFX6V3
MFR#
2051299-00
$189.99
Availability:
Out of stock
MACKIE PROFX6V3 6 CHANNEL PROFESSIONAL EFFECTS MIXER WITH USB

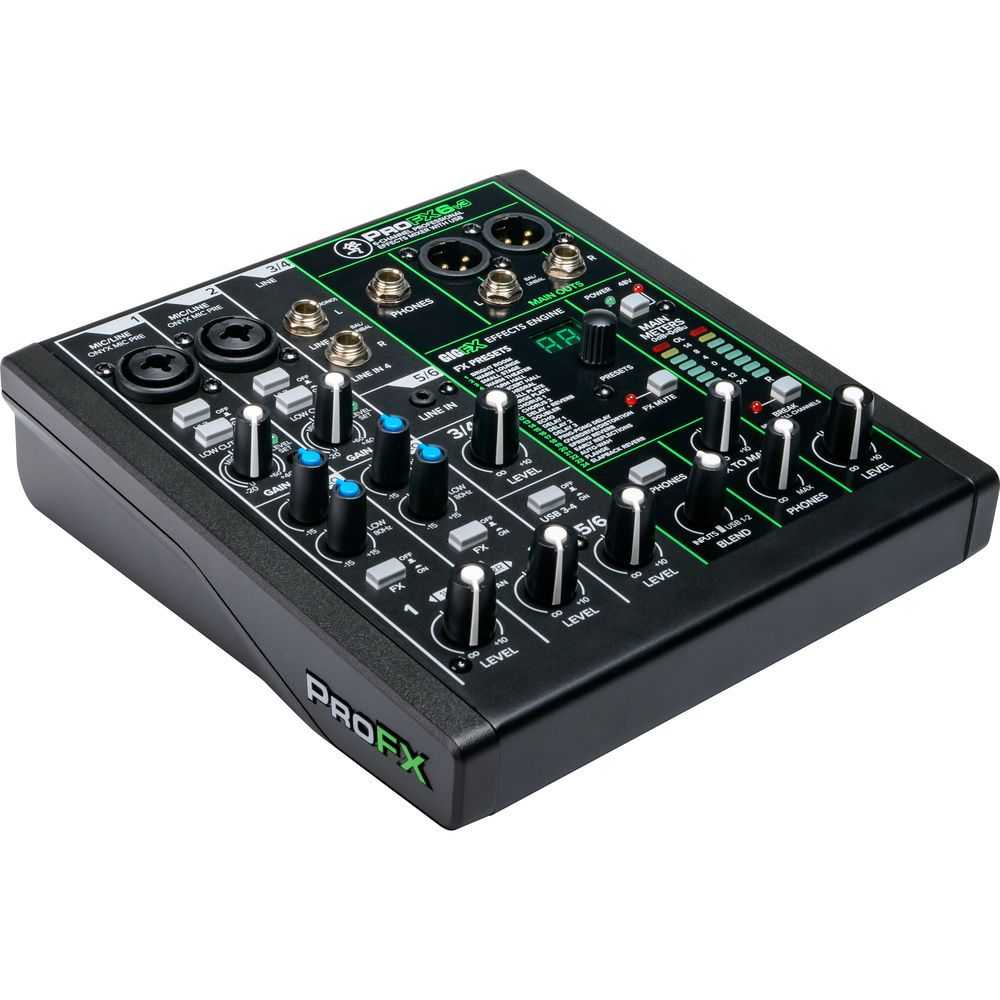

The Mackie ProFX6v3 is a 6-channel mixing console featuring two Onyx microphone preamps with 60 dB of headroom and a built-in effects engine with 24 built-in FX, making it well suited for live sound, home recording, and content creators. The integrated 2x4 USB audio interface offers high-quality 24-bit / 192 kHz recording and playback with zero-latency monitoring.
Channels 1-2 offer combo XLR-1/4" mic/line connections and feature Hi-Z (for guitar and bass), low-cut filters (100 Hz), gain controls, 2-band EQ, stereo linking, level faders, and FX send. Channels 3-4 offer two 1/4" inputs and feature a level control, while channels 5-6 use a 3.5mm stereo input with level fader. Engaging channel 5-6's USB3-4 switch will override the 3.5" input and enables the USB return from a computer. The master output is controlled with a dedicated level knob and features XLR and 1/4" connectors, while the dedicated 1/4" TRS headphone output includes an independent level control. Other features include Input-USB 1-2 blend control, FX mute, and FX to main.
Key Features
- 2 x Mic/Line Inputs
- 2 x Mono/Stereo Line Inputs
- 2-In / 4-Out USB (24-Bit, 192 kHz)
- Gig FX Effects Engine (24 FX Presets)
- Main XLR & 1/4" Outputs + Headphone Out
- 2 x Onyx Mic Preamps with 48V Phantom
- 2-Band EQ on Channels 1-2
- Monitor & FX Sends, Stereo & FX Returns
- Includes Power Supply
Mackie PROFX6V3Specs
| Number of Analog Input Channels |
6
|
| Number of Mic Preamps |
2
|
| Analog Output Channels |
2x Stereo Master Output
1x Stereo Headphone Output |
| Meters |
Main Meter:
2x 8-Segment LED |
| Meter Range |
Main Meter:
-24 dB to +14 dB Plus Peak/Clip |
| EQ Parameters |
Low: ±15 dB at 80 Hz
High: ±15 dB at 12 kHz |
| Filters |
High-Pass: 100 Hz, 18 dB/Octave
|
| Built-In Effects |
24x Preset (Factory)
|
| Bit Depth |
24-Bit
|
| Frequency Response |
Mic Input to Output:
20 Hz to 30 kHz +0/-1 dB (Unity Gain) |
| Max Input Level |
+22 dB
|
| Output Level |
Main Output:
+28 dBu at Max Gain All Other Output: +22 dBu at Max Gain |
| I/O Impedance |
Mic Input:
3.8 Kilohms Insert Return: 10 Kilohms Line Input: ≥ 20 Kilohms Headphone Output: 25 Ohms Main Output: 120 Ohms (Unbalanced) 240 Ohms (Balanced) |
| Crosstalk |
Adjacent Inputs:
-90 dB at 1 kHz Input to Output: -80 dB at 1 kHz Fader Off: -75 dB at 1 kHz Muted: -90 dB at 1 kHz |
| CMRR |
70 dB at Max Gain (1 kHz, Mic In to Main Out)
|
| EIN |
-126 dBu at Max Gain (150-Ohm Input)
|
| Noise Floor |
All Outputs:
-95 dBu (Master Level at -∞, Channel Levels at -∞) -80 dBu (Master Level at Unity, One Channel Level at Unity) |
| THD+N |
Mic Input to Main Output:
< 0.03% (+4 dBu) |
| Phantom Power |
+48 V, Selectable On/Off (Applied to All Inputs)
|
| USB I/O |
1x USB-B 2.0()
|
| USB I/O Capacity |
2x Input / 4x Output
|
