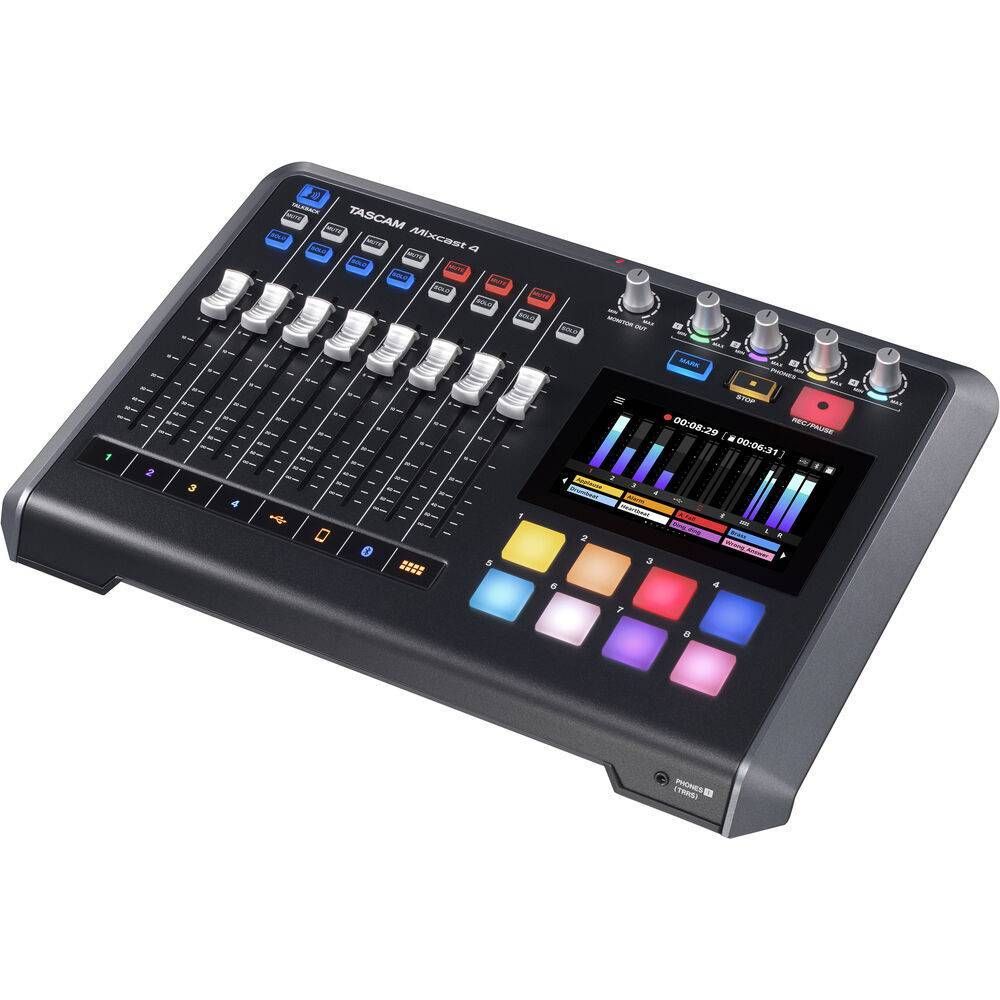

TASCAM MIXCAST 4 PODCAST STATION W/ BUILT IN RECORDER AND USB INTERFACE
SKU
TAS-MIXCAST4
MFR#
MIXCAST 4
was
$799.00
Special Price
$399.00
Availability:
Out of stock
TASCAM MIXCAST 4 PODCAST STATION W/ BUILT IN RECORDER AND USB INTERFACE
Record a podcast with up to four people with the TASCAM Mixcast 4, a tabletop mixer and recorder with sound effects, independent headphone outputs, and mix-minus functionality, for live or streamed guests and more. With the Mixcast 4, you'll have everything you need to record a high-quality multicast podcast straight to an SD card or straight to a stereo USB feed, for instantaneous streaming over your favorite platform.
Key Features
- Podcast Recorder and Mixer in One Box
- 4 Combo XLR-1/4" Mic/Line Inputs
- 8 Faders to Control Audio Levels
- Onboard and USB Multitrack Recording
- Mix-Minus for Phone Call Interviews
- Bluetooth
- 4 Headphone Outputs for Host and Guests
- 8 Pads and 8 Banks for Instant Sound FX
- USB Interface for Streaming
- Includes Software, USB Cable & Adapter
Specs
| Form Factor |
Desktop
|
| Channels of I/O |
USB:
14 Inputs / 2 Outputs |
| Maximum Sampling Rate |
48 kHz / 24-Bit
|
| Number of Microphone Preamps |
4 Preamps
|
| Input Level Adjustment |
4 x via Touchscreen
|
| Analog Audio I/O |
4 x Combo XLR-1/4" TRS Balanced Mic Input
2 x 1/4" TRS Balanced Line Input1 x 1/8" / 3.5 mm TRRS Unbalanced Line/Smartphone Input 1 x 1/8" / 3.5 mm TRRS Unbalanced Headphone Output 4 x 1/4" TRS Unbalanced Headphone Output 2 x 1/4" TRS Balanced Monitor Output 1 x 1/8" / 3.5 mm TRS Unbalanced Line Output |
| Host Connection |
1 x USB-C (Class-Compliant)
|
| OS Compatibility |
Android 10 or Later
iOS 13 or Later iPadOS 13 or Later macOS 10.15 macOS 11 macOS 12 Windows 10 macOS 11 *As of June, 2022: Check with manufacturer for the most up-to-date compatibility |
| Power Requirements |
AC/DC Power Adapter (Included)
|
| Display |
5" Color Touchscreen
|
| Channels of I/O |
USB:
14 Inputs / 2 Outputs |
| Built-In DSP |
Yes
|
| Maximum Sampling Rate |
48 kHz / 24-Bit
|
| Number of Microphone Preamps |
4 Preamps
|
| Built-In Microphone |
None
|
| Input Level Adjustment |
4 x via Touchscreen
|
| Expansion Slots |
None
|
| Pad |
None
|
| Gain/Trim Range |
Mic Inputs:
66.5 dB |
| High-Pass Filter |
None
|
| Solo/Mute |
Solo, Mute per Input Channel
|
| Analog Audio I/O |
4 x Combo XLR-1/4" TRS Balanced Mic Input
2 x 1/4" TRS Balanced Line Input 1 x 1/8" / 3.5 mm TRRS Unbalanced Line/Smartphone Input 1 x 1/8" / 3.5 mm TRRS Unbalanced Headphone Output 4 x 1/4" TRS Unbalanced Headphone Output 2 x 1/4" TRS Balanced Monitor Output 1 x 1/8" / 3.5 mm TRS Unbalanced Line Output |
| Phantom Power |
48 V (Selectable on Individual Inputs)
|
| Digital Audio I/O |
None
|
| Host Connection |
1 x USB-C (Class-Compliant)
|
| Host Connection Protocol |
USB 2.0
|
| USB (Non-Host) |
None
|
| Sync I/O |
None
|
| Network I/O |
None
|
| MIDI I/O |
None
|
| Wireless |
Bluetooth
|
| Wireless Connectivity |
Bluetooth (Audio Streaming)
|
| Frequency Response |
Mic Inputs:
20 Hz to 20 kHz ±0.3 dB (JEITA) |
| Maximum Input Level |
Mic Inputs:
+10 dBu (Min Gain) 1/4" Line Inputs: +24 dBu 1/8" / 3.5 mm Line Inputs: +8 dBV |
| Maximum Output Level |
1/4" Monitor Outputs:
+20 dBu 1/8" / 3.5 mm Line Outputs: +6 dBV |
| Headphone Output Power |
1/4": 45 mW per Channel into 32 Ohms (0.1% THD)
|
| Impedance |
Mic Inputs:
2.1 Kilohms 1/4" Line Inputs: 11 Kilohms 1/8" / 3.5 mm Line Inputs: 12 Kilohms 1/8" / 3.5 mm Headphone Inputs: 2 Kilohms 1/4" Monitor Outputs: 200 Ohms 1/8" / 3.5 mm Line Outputs: 200 Ohms |
| SNR |
Mic Inputs:
101 dB (A-Weighted) |
| THD |
Mic Inputs:
0.003% (A-Weighted) |
| Crosstalk |
≥ 95 dB
|
| EIN |
Mic Inputs:
≤ -125 dBu (150-Ohm Source, Max Gain) |
| OS Compatibility |
Android 10 or Later
iOS 13 or Later iPadOS 13 or Later macOS 10.15 macOS 11 macOS 12 Windows 10 macOS 11 *As of June, 2022: Check with manufacturer for the most up-to-date compatibility |
| Included Software |
None
|
| Compatible Software (Not Included) |
Any Core Audio (Mac) Compliant Software
|
| Mobile App Compatible |
No
*As of January, 2023: Check with manufacturer for the most up-to-date compatibility |
| Required Hardware |
Available USB-A Port
|
| Internet Connection |
Required for Registration
|
| Power Requirements |
AC/DC Power Adapter (Included)
|
| AC/DC Power Adapter |
12 VDC, Center-Positive (Included)
|
| Power Consumption |
12.5 W (Maximum)
|
| Anti-Theft Features |
Kensington Security Slot
|
| Operating Temperature |
32 to 104°F / 0 to 40°C
|
| Dimensions |
14.8 x 10.4 x 2.2" / 37.5 x 26.4 x 5.7 cm
14.8 x 10.5 x 2.8" / 37.5 x 26.7 x 7.1 cm (Including Controls and Protrusions) |
| Weight |
5.7 lb / 2.6 kg
|
