TASCAM ML-32D ANALOG / DANTE CONVERTER
SKU
TAS-ML-32D
MFR#
ML-32D
was
$3,399.00
Special Price
$2,999.00
Availability:
Out of stock

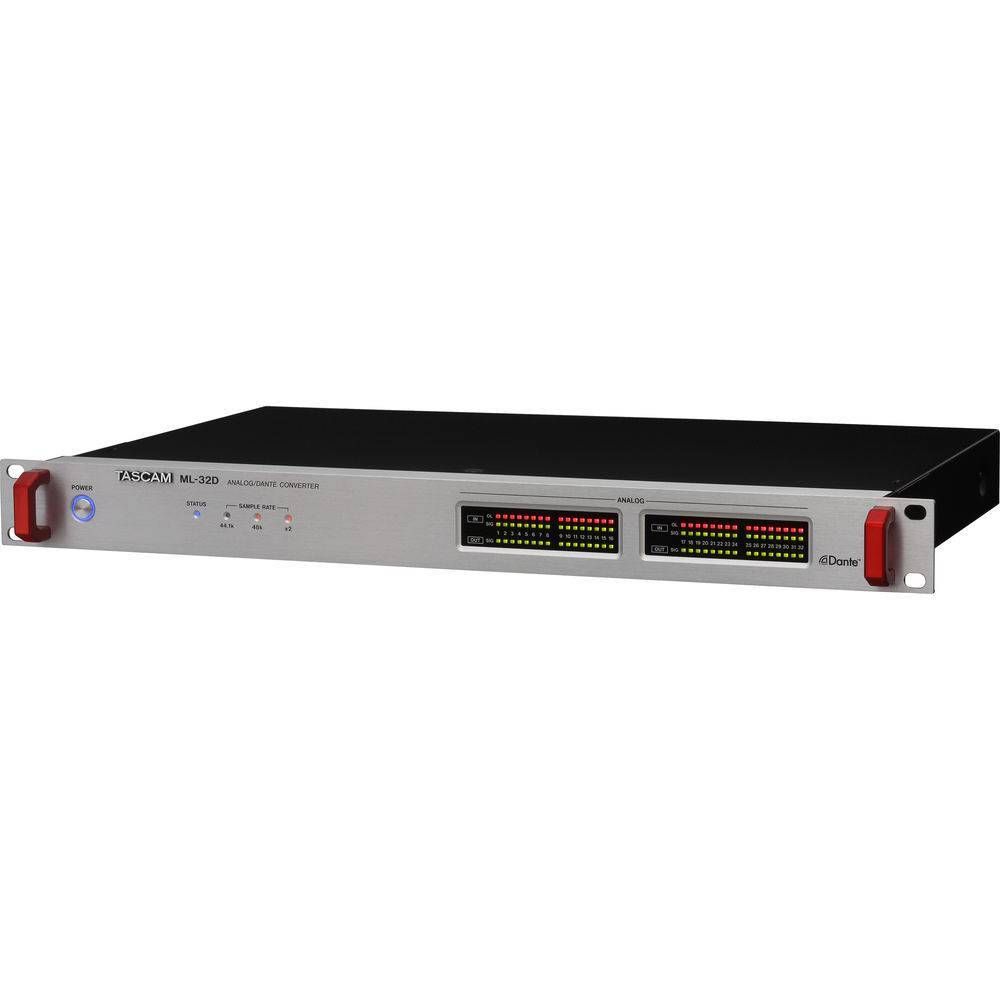

TASCAM ML-32D DANTE/ANALOG CONVERTER
The ML-32D Dante / Analog Converter from Tascam is a Dante-focused converter designed to insert or extract analog audio into or out of a Dante (Digital Audio Network Through Ethernet) network using external breakout devices that utilize D-Sub format connectors.
Key Features
- For External Audio, In or Out of Dante
- 32-Channel Inputs and Outputs
- 24-Bit, 48 kHz / 96 kHz Format
- 8x D-Sub Connectors
- LED Display for Signal Levels
Specs
| Channels of I/O |
32 Input / 32 Output
|
| Built-In DSP |
None
|
| Maximum Sampling Rate |
96 kHz / 24-Bit
|
| Number of Microphone Preamps |
None
|
| Built-In Microphone |
None
|
| Analog Audio I/O |
4 x DB-25 25-Pin 8-Channel Input
4 x DB-25 25-Pin 8-Channel Output |
| Digital Audio I/O |
None
|
| Host Connection / USB |
None
|
| Host Connection Protocol |
None
|
| USB (Non-Host) |
None
|
| Sync I/O |
None
|
| Network I/O |
2 x RJ45 Dante
|
| MIDI I/O |
None
|
| Frequency Response |
20 Hz to 20 kHz +0.1/-0.5 dB (at 48 kHz, JEITA)
20 Hz to 40 kHz +0.1/-0.5 dB (at 96 kHz, JEITA) |
| Impedance |
DB-25 Inputs:
≥ 10 Kilohms |
| SNR |
113 dB
|
| THD+N |
0.001%
|
| Sample Rates |
44.1 / 48 / 88.2 / 96 kHz
|
| Sample Rate Conversion |
None
|
| Bit Depths |
16 / 24-Bit
|
| Sync Sources |
Dante
|
| OS Compatibility |
Windows
macOS *As of August, 2022: Check with manufacturer for the most up-to-date compatibility |
| Included Software |
None
|
| Included Plug-Ins |
None
|
| Power Requirements |
AC/DC Power Adapter (Included)
|
| AC Input Power |
100 to 240 VAC, 50 / 60 Hz
|
| Power Consumption |
22 W
|
| Rackmount Size |
1 RU
|
| Operating Temperature |
32 to 104°F / 0 to 40°C
|
| Dimensions |
19 x 12 x 1.8" / 483 x 303.8 x 45 mm
|
| Weight |
7.7 lb / 3.5 kg
|
