TASCAM US-16X08 16X8 CHANNEL USB AUDIO INTERFACE
SKU
TAS-US-16x08
MFR#
US-16x08
was
$599.00
Special Price
$399.00
Availability:
Out of stock

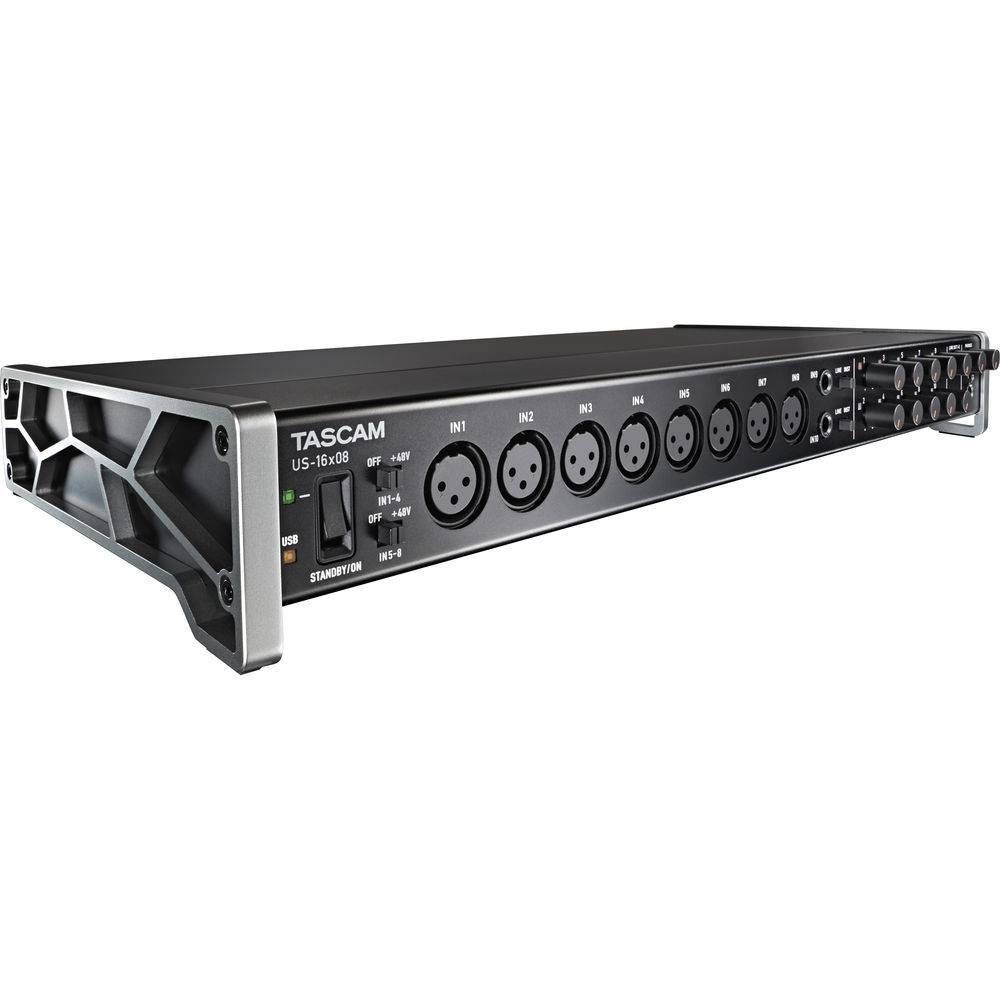

TASCAM US-16x08 TASCAM US-16x08 16X8 CHANNEL USB AUDIO INTERFACE
Allowing you to record up to 16 channels simultaneously in up to 24-bit/96 kHz resolution, the US-16x08 USB Audio/MIDI Interface from TASCAM features 8 XLR microphone inputs with their Ultra-HDDA preamps and 8 TRS line level inputs, 2 of which can be switched to instrument level for DI recording. A DSP mixer allows you to route any signal to any output and gives you a 4-band EQ and compression for each channel, allowing you to tweak a monitor or headphone mix.
Key Features
- 24-bit/96 kHz Resolution
- 8x XLR Mic Inputs & 8x TRS Line Inputs
- DSP Monitor Mixer with EQ & Compression
- Ultra-HDDA Microphone Preamps
- 5-Pin DIN MIDI I/O
- Angled Design for Desktop Use
- Mac, Windows, iOS Compatible
- Includes Rack Ears & USB Cable
Specs
| Display |
None
|
| Channels of I/O |
16 Input / 8 Output
|
| Built-In DSP |
Yes
|
| Maximum Sampling Rate |
96 kHz / 24-Bit
|
| Number of Microphone Preamps |
8 Preamps
|
| Built-In Microphone |
None
|
| Input Level Adjustment |
10 x Knob
|
| Expansion Slots |
None
|
| Pad |
None
|
| Gain/Trim Range |
Hi-Z Inputs:
45 dB Line Inputs: 45 dB Mic Inputs: 56 dB |
| High-Pass Filter |
None
|
| Solo/Mute |
None
|
| Analog Audio I/O |
8 x XLR 3-Pin Mic Input
2 x 1/4" TRS Line/Hi-Z Input 6 x 1/4" TRS Balanced Line Input 8 x 1/4" TRS Balanced Line Output 1 x 1/4" TRS Headphone Output |
| Phantom Power |
48 V
|
| Digital Audio I/O |
None
|
| Host Connection |
USB-B
|
| Host Connection Protocol |
USB 2.0
|
| USB (Non-Host) |
None
|
| Sync I/O |
None
|
| Network I/O |
None
|
| MIDI I/O |
1 x DIN 5-Pin Input
1 x DIN 5-Pin Output |
| Frequency Response |
Line Outputs:
20 Hz to 20 kHz ±0.3 dB (at 48 kHz, JEITA) 20 Hz to 40 kHz ±0.3 dB (at 96 kHz, JEITA) |
| Maximum Input Level |
Hi-Z Inputs:
+24 dBu Mic Inputs: +8 dBu Line Inputs: +24 dBu |
| Maximum Output Level |
Line Outputs:
+24 dBu |
| Headphone Output Power |
70 mW per Channel
|
| Impedance |
Hi-Z Inputs:
≥ 1 Megohm Line Inputs: ≥ 10 Kilohms Line Outputs: 100 Ohms Mic Inputs: 2.4 Kilohms |
| SNR |
100 dB
|
| THD |
< 0.008%
|
| THD+N |
0.001%
|
| EIN |
< -125 dBu
|
