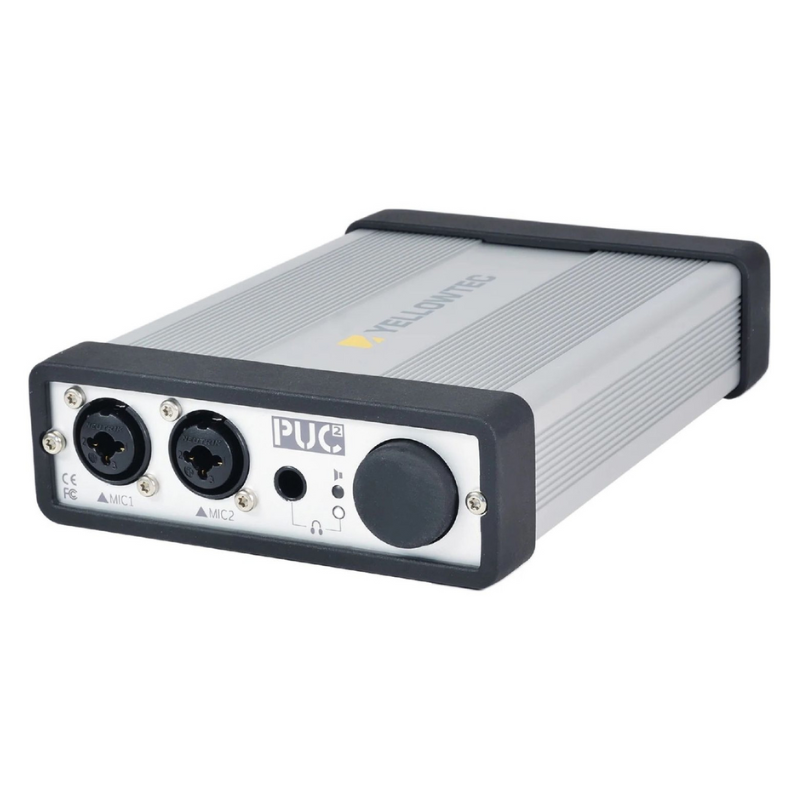

The PUC2 is a compact, two-channel, USB 2 bus-powered audio interface. The newáPUC Mic LEAáintegrates the real-time LEA DSP Engine from the iXm digital recording microphone into a class-leading audio interface. The LEA technology allows crystal clear recordings without time-consuming post-processing by capturing perfect levels without clipping or artefacts.
The LEA Engine is a unique technology for levelling your interviews while recording. In comparison to standart AGC`s and Limiters the LEA engine knows to excel by not creating artefacts or common pumping noises. Even with blanking levels or loud ambient noise the LEA Engine works perfectly and levels smoothly, just like an engineer inside your mic.
All versions are housed in an extruded aluminium case (127 x 42 x 185 mm) weighing 600g. A modular design with each version employing different analogue I/O boards internally, and different end panels externally. The computer connection panel features AES3 inputs and outputs on XLRs, along with an USB (B-type) port and a yellow-ringed 3.5mm socket, which is used to configure the zero-latency monitoring modes.
Product Specs:
Power (via Dual USB) | < 1000 mA | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Clocking |
Jitter: < 15 mUI peak |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Input Selection | Automatic with AES Detection | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
á | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Digital Input | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Format | AES 3 + SPF/DIF | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Connectors | XLR | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
SUB-D Module Connections | SUB-D 25 pin | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Sampling Rate | 44,1 kHz, 48 kHz, 88,2 kHz, 96 kHz, 176,4 kHz, 192 kHz | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Bit Depth | 24 Bit | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
á | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Digital Output | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Format | AES 3 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Connectors | XLR | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
SUB-D Module Connections | SUB-D 25 pin | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Sampling Rate | 44,1 kHz, 48 kHz, 88,2 kHz, 96 kHz, 176,4 kHz, 192 kHz | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Bit Depth | 24 Bit | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Analog Input | +18 dBu | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Impedance | Mic typ 1.2 kOhm | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
á | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
USB Connector | USB 2.0 Type B | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Phantom Power | 48 V - 5 mA | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Headphone Output |
3.5mm Jack, 6.3mm Jack: Adjustable Volume |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Microphone Input | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Gain | 0.05% | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Input Referred Noise | -127dBuá@ 150 Ohm | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Impedance | 1.2 kOhm | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
á | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
AD/DA Converter | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Dynamic | 108 dB | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
THD+N ADC | -107 dB THD+N | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
THD+N DAC | -103 dB THD+N | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Sampling Rate DAC | 44,1 kHz, 48 kHz, 88,2 kHz, 96 kHz, 176,4 kHz, 192 kHz | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Bit Depth | 24 Bit | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Length | 185mm | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Width | 127mm | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Height | 41,5mm | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Weight | 600g
