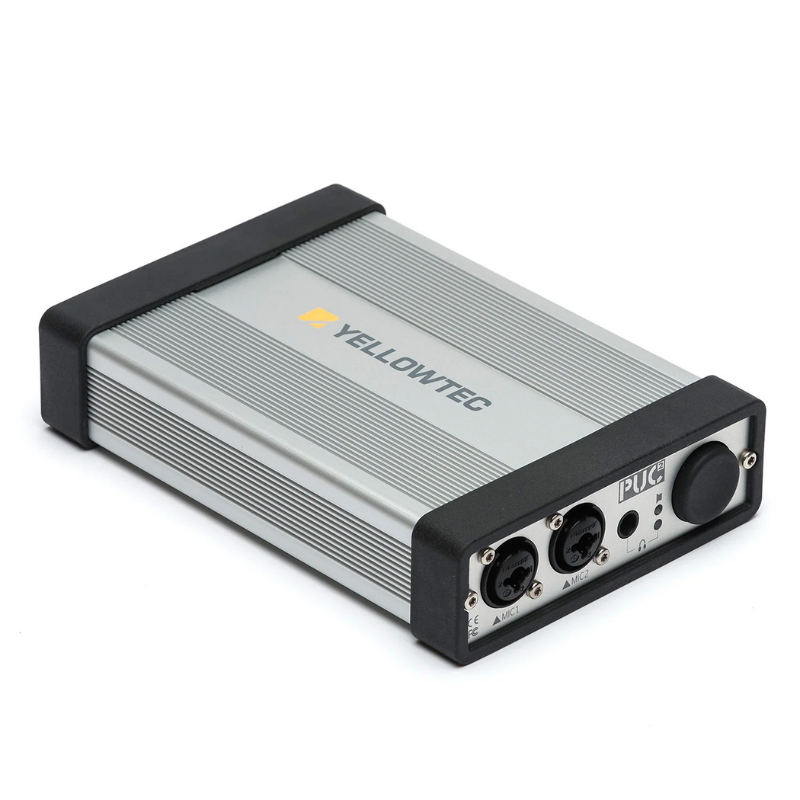

YELLOWTEC YT4321 PUC2 MIC LEA WAVELAB BUNDLE
As a combination of Yellowtec's PUC2 Mic LEA and a special Yellowtec Edition of Steinberg's WaveLab mastering software, our PUC2 WaveLab Bundle is the perfect all-in-one package for voice recording and editing. By adding up perfectly leveled recordings with WaveLab's editing tools, the PUC2 WaveLab Bundle offers a production environment to optimize journalistic workflows.
Choose the bundle with PUC2 Mic LEA to equip yourself with the out-of-the-box solution designed to record audio at your workplace. The setup is simple. Just connect PUC2 to your PC or Mac's USB port. To edit your recordings, we equip you with the WaveLab Yellowtec Edition production software which delivers enhanced tools for superb editing results. Providing an easy-to-use interface with a dedicated Yellowtec feature ribbon, it gives quick access to all essential functions. Known as a go-to audio mastering software for many engineers the world over, Steinberg's WaveLab includes professional editing and analysis tools plus metadata management.
Features:
- High-definition USB Audio Interface
- Perfect choice for any voice recording made by journalists, commentators and radio hosts
- Integrates the iXm Recording Mic's real-time LEA DSP Engine into an audio interface
- Perfectly leveled recordings without time-consuming post-processing
- Optionally set individual preferences within the included PUC2 software
- Perfect audio levels no matter the surroundings or ambient noise
- LEA excels without creating any artifacts or common pumping noise
- Plug'n'play concept allows for fast handling
- Stream two channels of mic recordings via US
- Alternatively use it as a stand-alone A/D converter
- Delivers highest available audio standards
- Zero latency for your microphone signals
- Allows for zero-latency monitoring
- Sturdy aluminum unibody serves as a conductor and heat sink
Product Specs:
| Power via dual-USB | < 1000 mA |
| Clocking Jitter Frequency Accuracy |
< 15 mUI Peak +/- 10 ppm |
| Input Selection | Automatic with AES Detection |
| Digital Input | |
| Format | AES 3 + SPF/DIF |
| Connectors | XLR |
| SUB-D Module Connections | SUB-D 25 pin |
| Sampling Rate | 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz |
| Bit Depth | 24 Bit |
| Digital Output | |
| Format | AES 3 |
| Connectors | XLR |
| SUB-D Module Connections | SUB-D 25 pin |
| Sampling Rate | 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz |
| Bit Depth | 24 Bit |
| Analog Input | |
| Electronically balanced Input Level 1 (switchable) Input Level 2 (switchable) Input Level 3 (switchable) |
-? ... +18dBu |
| Impedance | Mic typ 1.2 kOhm Line typ 10 kOhm |
| Analog Output | |
| Output Level 1 (switchable) Output Level 2 (switchable) Output Level 3 (switchable) |
Not balanced Adjustable Volume |
| Impedance | < 16 Ohm, Headphones with up to 600 Ohm can be used |
| USB | |
| Connector | USB 2.0 Type B |
| Phantom Power | |
| Switchable Voltage Electricity | 48 V 5 mA |
| Headphone Output | |
| Type | 3,5 mm Jack 6,3 mm Jack |
| Impedance | < 16 Ohm |
| Microphone Input | Electronically balanced |
| GAIN | |
| Impedance | 1,2 kOhm |
| Input referred Noise | 0,05% |
| EIN | -127 dBu @ 150 Ohm |
| AD/DA Converter | |
| Dynamic Range | 108 dB |
| THD+N ADC | -107 dB THD+N |
| THD+N DAC | -103 dB THD+N |
| Sampling Rate DAC | 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz |
| Bit Depth | 24 Bit |
| Weight and Dimensions | |
| Length Width Height | 185 mm 127 mm 41,5 mm |
| Weight | 600g |
