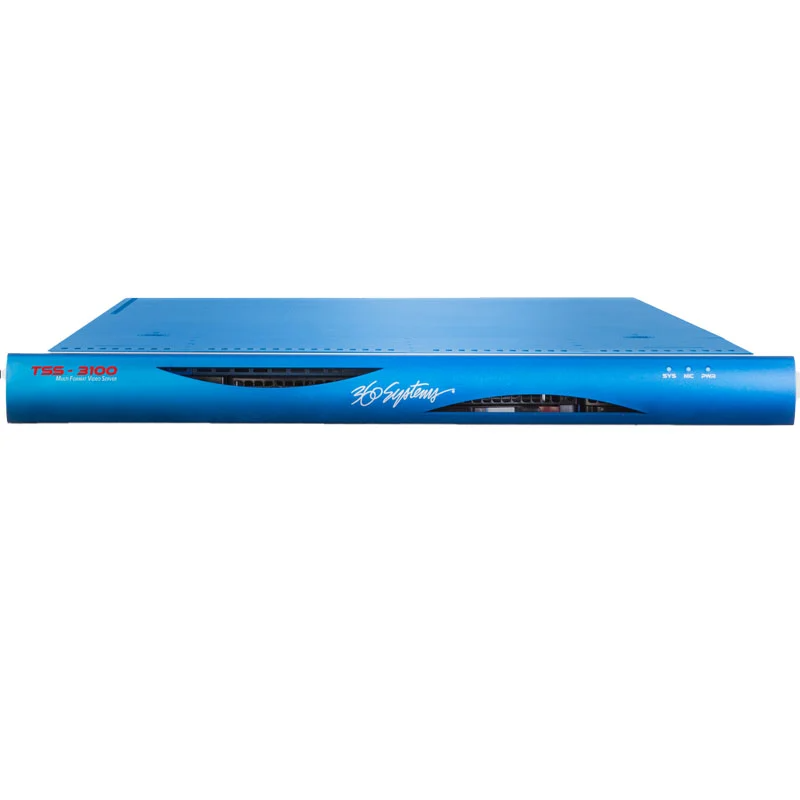

360 SYSTEMS TSS-3100 3 CHANNEL HD/SD SERVER ( 1 RECORD / PLAY AND 2 PLAYOUT) 4 TB STORAGE WITH REMOTE WORKSTATION.

Features:

• General:
  • 3 Channels, 1 Record/Playout and 2 Playout
  • 16 Channels Embedded Audio
  • H.264 and MPEG2 Encoding / Decoding
  • Automatic Up/Down/Cross Conversion of HD or SD content
  • Remote Control From PC's via Ethernet
  • Redundant Power / Cooling
  • 1U Form Factor
• Video:
  • Record and play in 720p, 1080i or SD on any channel
  • Various standard codec and file formats are accepted for playout, such as H.264 or MPEG-2 in .mxf, .mp4, .mpg or .mov containers.
  • Independently configure each output to broadcast in 720p, 1080i or SD
  • Perform jog and shuttle for rapid movement within a clip
  • Smooth slow motion playout
  • 16 channels of embedded audio per video channel
  • Configurable for 29.97/59.94 or 25/50
  • High quality 10 bit video and 24 bit audio support
• Reliability:
  • Redundant cooling and power
  • Redundant RAID 5 storage
  • Linux based operating system
• Connectivity:
  • HD-SDI, SD-SDI compatibility
  • Gigabit Ethernet
  • Serial port control for each channel via the VDCP or Odetics protocols for use with automation or remote controls
  • Independent GPI inputs and outputs (12 each) for external triggering or control
• Software:
  • Automatic conversion plays SD and HD files back-to-back
  • Local software GUI
  • Remote control from a PC
  • Record & playlisting

Specifications:

• Video:
  • Video Input: 1 Channel
  • Video Outputs: 3 Channels
  • Simultaneous video streams: 3 (1 record, 2 playout, or 3 playout)
  • HD Input/Output: HD-SDI (SMPTE 292M), SD-SDI (SMPTE 259M)
  • Video Format: 1080i at 29.97 or 25 Hz; 720p at 59.94 or 50 fps; 525/60 NTSC; 625/50 PAL
  • Encoding Format: H.264 or MPEG2
  • HS/SD Scaling: Up, Down, and Cross Conversion of Any File Format to Selected Output
  • Jog/Shuttle: Zero to 128X, forward/reverse
  • Slow Motion Play with audio: Zero to +/- 2X, forward/reverse
  • Frame Accuracy: Frame accurate play, pause, and stop
  • Genlock Input: Blackburst or tri-level
• Ancillary Data:
  • Ancillary Data: HD – 608/708 in VANC; SD – Line 21 VBI
  • Audio Inputs/Outputs (per video channel):
    • SDI Embedded Audio: 16 channels
  • Storage:
    • Disk Storage System: SAS array, four – 1 or 2 Terabyte drives, Hardware RAID 5 controller
    • Total Capacity: 4 Terabytes, standard model (8 Terabytes available separately. Contact your Sales Pro for more details.)
    • Drive Replacement: Hot Swappable, removable from behind front panel
  • Connectivity:
    • Networking: Gigabit Ethernet
    • Serial Control: 3, VDCP or Odetics protocols, 9-pin on CXP-5 module (optional- sold separately)
    • GPI Control: 12 Inputs, Outputs, Programmable on CXP-5 module (optional- sold separately)
  • Miscellaneous:
    • Fault Monitoring LEDs: Front Panel LEDs, power, system, network
    • Fault Monitoring Output: GPI output, open collector
    • Software Updates: USB
    • Power Supply: Dual Redundant, 100-250V – 50/60 Hz. 460W, rear panel plug-in
    • Cooling: Redundant fans
    • Chassis: 1-RU x 19" Rack, Weight: approx 48 lb. (22 kg)
  • Expansion Modules:
  • CXP-5: Serial and GPI control module. 1 RU (sold separately)
