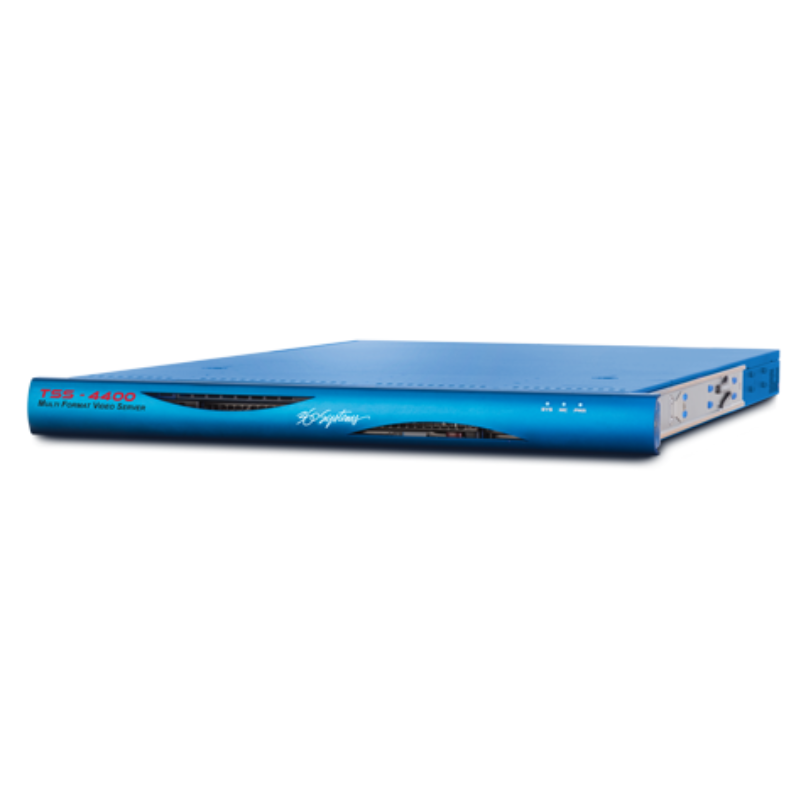

360 SYSTEMS TSS-4400 4 CHANNEL HD/SD SERVER ( 4 BI-DIRECTIONAL) SERVER , 4 TB STORAGE 1U FORM FACTOR WITH REMOTE WORKSTATION.
SKU
360-TSS-4400
MFR#
TSS-4400
$40,995.00
Availability:
Out of stock
360 SYSTEMS TSS-4400 4 CHANNEL HD/SD SERVER ( 4 BI-DIRECTIONAL) SERVER , 4 TB STORAGE 1U FORM FACTOR WITH REMOTE WORKSTATION.
TSS-4400 puts 4 independent bi-directional (record or playout) channels all in a small 1U form factor. Recording in a variety of file formats for easy transfer for editing or archiving as well as capturing closed caption data and other ancillary data. In addition, the TSS-4400 contains the same great standard feature set as all other TSS servers.
Features:
- 4 Channels, 4 Record or Playout – TSS -4400
- 4 Channels, 2 Record/Playout and 2 Playout – TSS – 4200
- 1U, Chassis Form Factor
- 16 Channels Embedded Audio
- H.264 and MPEG2 Encoding / Decoding
- Automatic Up/Down/Cross Conversion of HD or SD content
- Remote Control From PC’s via Ethernet
- Redundant Power / Cooling
Specifications:
| VIDEO | |
| Video Input | 4 Channels (2 Channels on 4200) |
| Video Outputs | 4 Channels |
| Simultaneous video streams | 4 total in any configuration of record or playout.
(For the TSS-4200, 2 record and 2 playout,1 record and 3 playout or 4 playout) |
| HD Input/Output | HD-SDI (SMPTE 292M), SD-SDI (SMPTE 259M) |
| Video Format | 1080i at 29.97 or 25 Hz; 720p at 59.94 or 50 fps; 525/60 NTSC; 625/50 PAL |
| Encoding Format | H.264 or MPEG2 |
| HS/SD Scaling | Up, Down, and Cross Conversion of Any File Format to Selected Output |
| Jog/Shuttle | Zero to 128X, forward/reverse |
| Slow Motion Play with audio | Zero to +/- 2X, forward/reverse |
| Frame Accuracy | Frame accurate play, pause and stop |
| Genlock Input | Blackburst or tri-level |
| ANCILLARY DATA | |
| Ancillary Data | HD – 608/708 in VANC; SD – Line 21 VBI |
| AUDIO INPUTS / OUTPUTS (per video channel) | |
| SDI Embedded Audio | 16 channels |
| STORAGE | |
| Disk Storage System | SATA array, four – 1 or 2 Terabyte drives, Hardware RAID 5 controller |
| Total Capacity | 8 Terabytes (4 Terabytes standard model) |
| Drive Replacement | Hot Swappable, removable from behind front panel |
| CONNECTIVITY | |
| Networking | Gigabit Ethernet |
| Serial Control | VDCP or Odetics protocols, 9-pin on CXP-5 module (optional). |
| GPI Control | 12 Inputs, Outputs, Programmable on CXP-5 module (optional) |
| MISCELLANEOUS | |
| Fault Monitoring LEDs | Front Panel LEDs, power, system, network |
| Fault Monitoring Output | GPI output, open collector |
| Software Updates | USB |
| Power Supply | Dual Redundant, 100-250V – 50/60 Hz. 750W, rear panel plug-in |
| Cooling | Redundant fans |
| Chassis | 1-RU x 19” Rack, Weight: approx 45 lb. (22 kg) |
| EXPANSION MODULES | |
| CXP-5 | Serial and GPI control module. 1 RU (optional) |
