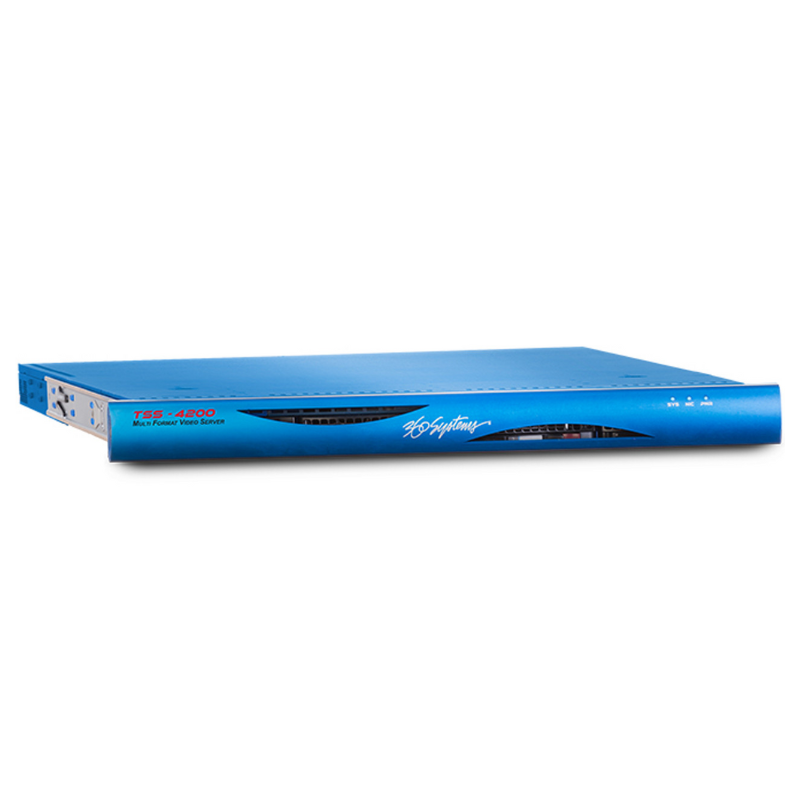

360 SYSTEMS TSS-4200 4 CHANNEL HD/SD SERVER ( 2 BI-DIRECTIONAL, 2 PLAYOUT ONLY ) 4 TB STORAGE 1U FORM FACTOR WITH REMOTE WORKSTATION.
SKU
360-TSS-4200
MFR#
TSS-4200
$36,149.00
Availability:
Out of stock
360 SYSTEMS TSS-4200 4 CHANNEL HD/SD SERVER ( 2 BI-DIRECTIONAL, 2 PLAYOUT ONLY ) 4 TB STORAGE 1U FORM FACTOR WITH REMOTE WORKSTATION.
TSS-4200 puts 4 channels all in a small 1U form factor. Recording in common file formats for easy transfer for editing or archiving as well as capturing closed caption data and other ancillary data. In addition, the TSS-4200 contains the same great standard feature set as all other TSS servers.
Features:
- 4 Channels, 4 Record or Playout – TSS -4400
- 4 Channels, 2 Record/Playout and 2 Playout – TSS – 4200
- 1U, Chassis Form Factor
- 16 Channels Embedded Audio
- H.264 and MPEG2 Encoding / Decoding
- Automatic Up/Down/Cross Conversion of HD or SD content
- Remote Control From PC’s via Ethernet
- Redundant Power / Cooling
Specifications:
| VIDEO | |
| Video Input | 4 Channels (2 Channels on 4200) |
| Video Outputs | 4 Channels |
| Simultaneous video streams | 4 total in any configuration of record or playout.
(For the TSS-4200, 2 record and 2 playout,1 record and 3 playout or 4 playout) |
| HD Input/Output | HD-SDI (SMPTE 292M), SD-SDI (SMPTE 259M) |
| Video Format | 1080i at 29.97 or 25 Hz; 720p at 59.94 or 50 fps; 525/60 NTSC; 625/50 PAL |
| Encoding Format | H.264 or MPEG2 |
| HS/SD Scaling | Up, Down, and Cross Conversion of Any File Format to Selected Output |
| Jog/Shuttle | Zero to 128X, forward/reverse |
| Slow Motion Play with audio | Zero to +/- 2X, forward/reverse |
| Frame Accuracy | Frame accurate play, pause and stop |
| Genlock Input | Blackburst or tri-level |
| ANCILLARY DATA | |
| Ancillary Data | HD – 608/708 in VANC; SD – Line 21 VBI |
| AUDIO INPUTS / OUTPUTS (per video channel) | |
| SDI Embedded Audio | 16 channels |
| STORAGE | |
| Disk Storage System | SATA array, four – 1 or 2 Terabyte drives, Hardware RAID 5 controller |
| Total Capacity | 8 Terabytes (4 Terabytes standard model) |
| Drive Replacement | Hot Swappable, removable from behind front panel |
| CONNECTIVITY | |
| Networking | Gigabit Ethernet |
| Serial Control | VDCP or Odetics protocols, 9-pin on CXP-5 module (optional). |
| GPI Control | 12 Inputs, Outputs, Programmable on CXP-5 module (optional) |
| MISCELLANEOUS | |
| Fault Monitoring LEDs | Front Panel LEDs, power, system, network |
| Fault Monitoring Output | GPI output, open collector |
| Software Updates | USB |
| Power Supply | Dual Redundant, 100-250V – 50/60 Hz. 750W, rear panel plug-in |
| Cooling | Redundant fans |
| Chassis | 1-RU x 19” Rack, Weight: approx 45 lb. (22 kg) |
| EXPANSION MODULES | |
| CXP-5 | Serial and GPI control module. 1 RU (optional) |
