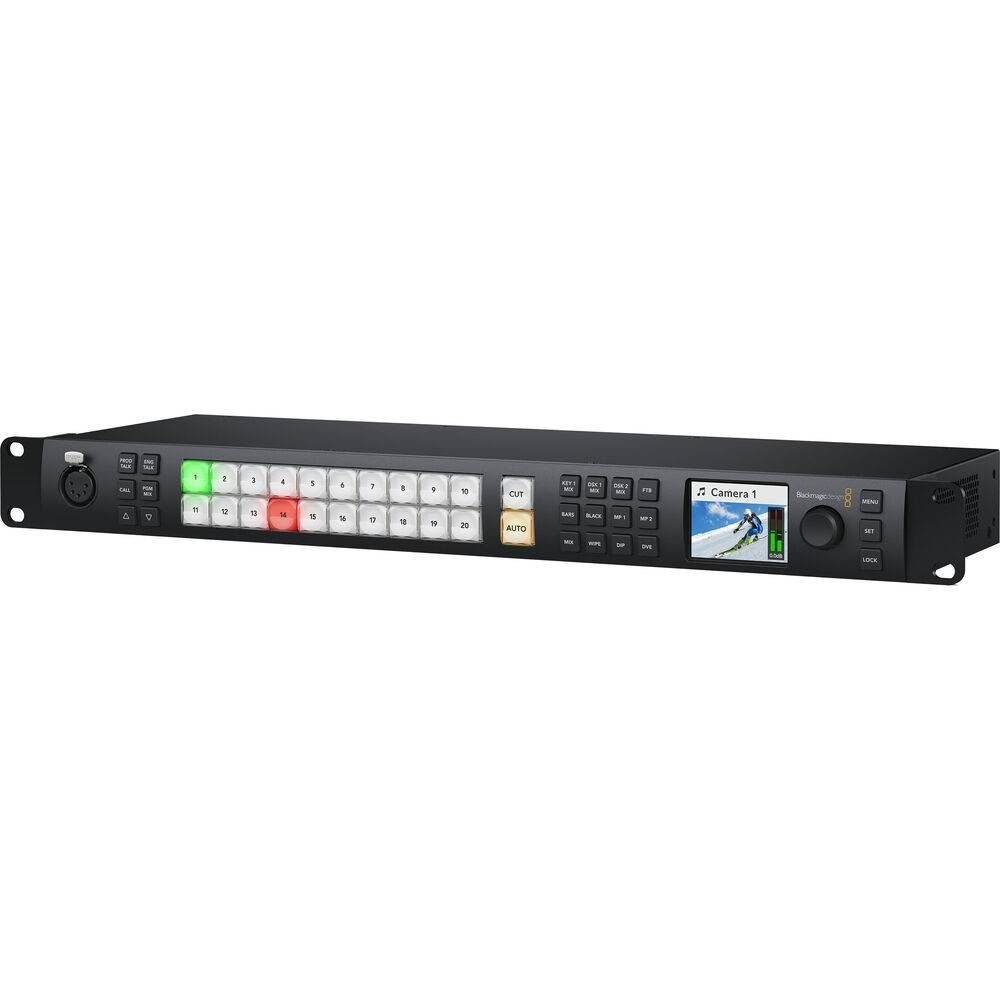

main product photo
Loading...
BLACKMAGIC DESIGN ATEM 1 M/E CONSTELLATION HD

BLACKMAGIC DESIGN ATEM 1 M/E CONSTELLATION HD

BLACKMAGIC DESIGN ATEM 4 M/E CONSTELLATION HD

BLACKMAGIC DESIGN ATEM 4 M/E CONSTELLATION HD

BLACKMAGIC DESIGN BMD-SWATEMSCN2/1ME2/HD ATEM 2 M/E CONSTELLATION HD

Black Magic Design
SKU
BMD-SWATEMSCN2/1ME2/HD
MFR#
BMD-SWATEMSCN2/1ME2/HD
$1,695.00
Availability: Out of stock
BLACKMAGIC DESIGN ATEM 2 M/E CONSTELLATION HD
Be the first to review this product
Add to Wish List:

SPECIAL SHIPPING RATES

On orders over $1000

WHOLESALING PRICING

Ask us how to become a Wholesaler

SECURED PAYMENT

Guaranteed safe payment options

Powerful live event HD switching, supporting up to 20 individual 3G/HD-SDI inputs built into a 1 RU chassis, is at hand with the Blackmagic Design ATEM 2 M/E Constellation HD Live Production Switcher. Supporting 3G-SDI and HD-SDI signals, the switcher connects to a wide range of cameras and sources, delivering program output via 12 3G-SDI BNC outputs or a webcam output via USB Type-C. In addition, the switcher has two multiview outputs with up to 16 routable windows that can display inputs, keyed video, graphics, and stills from the media pool, as well as the program output. Each input connects to a built-in Fairlight audio mixer supporting up to 48 channels of audio.

Your Rating

ATEM 2 M/E Constellation HD Live Production Switcher Features

  • Supports 3G/HD-SDI at 10-Bit
  • 20 x 3G-SDI Inputs, 12 x 3G-SDI Outputs
  • Up to 16-Multiview Monitoring Windows
  • Webcam Output via USB Type-C
  • Frame Rate/Format Converter per Input
  • 48-Channel Audio Mixer
  • 8 x Upstream, 2 x Downstream Keyer
  • Chroma/Luma Keyers
  • Color/Pattern Generators
  • Hardware or Software Mac/Windows Control

General

Available M/E Layers 2 M/E
Effect Types 8 x Chroma Key
11 x Luma Key
2 x Stinger
6 x DVE
Downstream Keys 2 x Chroma, Luma, DVE
Generators 2 x Color
11 x Pattern
Audio Mixing 48-Channel Mixing
Switching Type Pushbutton, Software
Latency 10 Lines
Color Processing 10-Bit 4:2:2

Input / Output

Number of Video Input Sources 20
Video Inputs 20 x BNC (3G-SDI)
Input Video Format SDI (10-Bit 4:2:2)
1080p at 23.98/24/25/29.97/30/50/59.94/60 fps
1080i 50/59.94/60 fps
720p 50/59.94/60 fps
Audio Inputs 2 x 1/4" TRS Stereo Analog Female
Input Audio Format Analog
Embedded Audio Input SDI: 2-Channel (per Input)
Video Output Channels 12
Video Outputs 12 x BNC (3G-SDI)
1 x USB-C (USB Video) (Program)
Output Video Format SDI (10-Bit 4:2:2)
1080p at 23.98/24/25/29.97/30/50/60 fps
1080i 50/59.94/60 fps
720p 50/59.94/60 fps
Embedded Audio Output SDI
USB-C
Multiview Output 16-Way Multiview viaSDI

Connectivity / Hardware

Other I/O 1 x BNC Blackburst, Reference, Tri-Level Sync Input
1 x RJ45 Control
1 x RJ45 Talkback Input/Output
1 x XLR 5-Pin Talkback Input/Output
Video Standard Compliance SMPTE 292M/296M/424M/425M-A/425M-B
HDCP Support None
IP Video 1280 x 720 to 1920 x 1080 Encoding
Display Size 2.2"
OS Compatibility macOS 11.1
macOS 12.0 or Later
Windows 10
Windows 11
*As of April, 2022: Check with manufacturer for the most up-to-date compatibility
Wi-Fi None
Bluetooth None
Power I/O 1 x IEC C14 Input
Power Consumption Device: 52 W

Environmental

Operating Temperature 32 to 72°F / 0 to 40°C
Storage Temperature -4 to 140°F / -20 to 60°C
Operating Humidity 0 to 90% (Non-Condensing)
Rack Form Factor 1 RU
Dimensions 19 x 7.16 x 1.74" / 48.3 x 18.19 x 4.42 cm
Weight 6.57 lb / 2.98 kg
