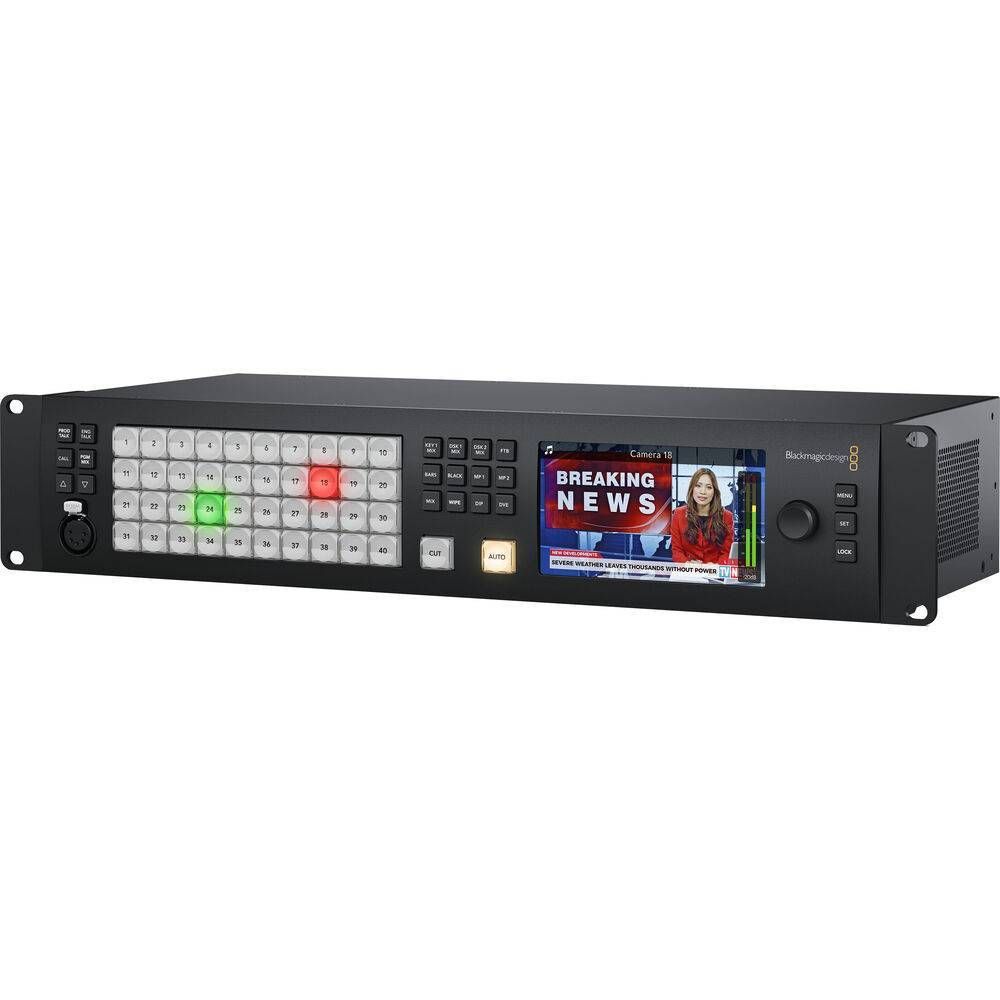

Powerful live event HD switching, supporting up to 40 individual 3G-/HD-SDI inputs built into a 2 RU chassis, is at hand with the Blackmagic Design ATEM 4 M/E Constellation HD Live Production Switcher. Supporting 3G-SDI and HD-SDI signals, the switcher connects to a wide range of cameras and sources, delivering program output via 24 3G-SDI BNC outputs or a webcam output via USB Type-C. In addition, the switcher has four multiview outputs with up to 16 routable windows that can display inputs, keyed video, graphics, and stills from the media pool, as well as the program output. Each input connects to a built-in Fairlight audio mixer supporting up to 156 channels of audio.
ATEM 4 M/E Constellation HD Live Production Switcher Features
General
Available M/E Layers | 4 M/E |
Effect Types | 16 x Chroma Key 21 x Luma Key 4 x Stinger 12 x DVE |
Downstream Keys | 4 x Chroma, Luma, DVE |
Generators | 2 x Color 21 x Pattern |
Audio Mixing | 156-Channel Mixing |
Switching Type | Pushbutton, Software |
Latency | 10 Lines |
Color Processing | 10-Bit 4:2:2 |
Input / Output
Number of Video Input Sources | 40 |
Video Inputs | 40 x BNC (3G-SDI) |
Input Video Format | SDI (10-Bit 4:2:2) 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps 1080i 50/59.94/60 fps 720p 50/59.94/60 fps |
Audio Inputs | 2 x 1/4" TRS Stereo Analog Female 1 x BNC Stereo MADI |
Input Audio Format | Analog |
Embedded Audio Input | SDI: 2-Channel (per Input) |
Video Output Channels | 24 |
Video Outputs | 24 x BNC (3G-SDI) 1 x USB-C (USB Video) (Program) |
Output Video Format | SDI (10-Bit 4:2:2) 1080p at 23.98/24/25/29.97/30/50/60 fps 1080i 50/59.94/60 fps 720p 50/59.94/60 fps |
Audio Outputs | 2 x 1/4" TRS 2 x BNC Stereo MADI |
Output Audio Format | Analog |
Embedded Audio Output | SDI USB-C |
Multiview Output | 16-Way Multiview viaSDI |
Connectivity / Hardware
Other I/O | 1 x BNC Blackburst, Reference, Tri-Level Sync Input 1 x RJ45 Control 1 x RJ12 Control 1 x RJ45 Talkback Input/Output 1 x XLR 5-Pin Talkback Input/Output |
Video Standard Compliance | SMPTE 292M/296M/424M/425M-A/425M-B |
HDCP Support | None |
IP Video | 1280 x 720 to 1920 x 1080 Encoding |
Display Size | 5" |
OS Compatibility | macOS 11.1 macOS 12.0 or Later Windows 10 Windows 11 *As of April, 2022: Check with manufacturer for the most up-to-date compatibility |
Wi-Fi | None |
Bluetooth | None |
Power I/O | 2 x IEC C14 Input |
Power Consumption | Device: 147 W |
Environmental
Operating Temperature | 32 to 72°F / 0 to 40°C |
Storage Temperature | -4 to 140°F / -20 to 60°C |
Operating Humidity | 0 to 90% (Non-Condensing) |
Rack Form Factor | 2 RU |
Dimensions | 19 x 9.1 x 3.48" / 48.3 x 23.1 x 8.84 cm |
Weight | 11.53 lb / 5.23 kg |
