BLACKMAGIC DESIGN ATEM CAMERA CONVERTER
SKU
BMD-SWRCONV
$625.00
Availability:
In stock

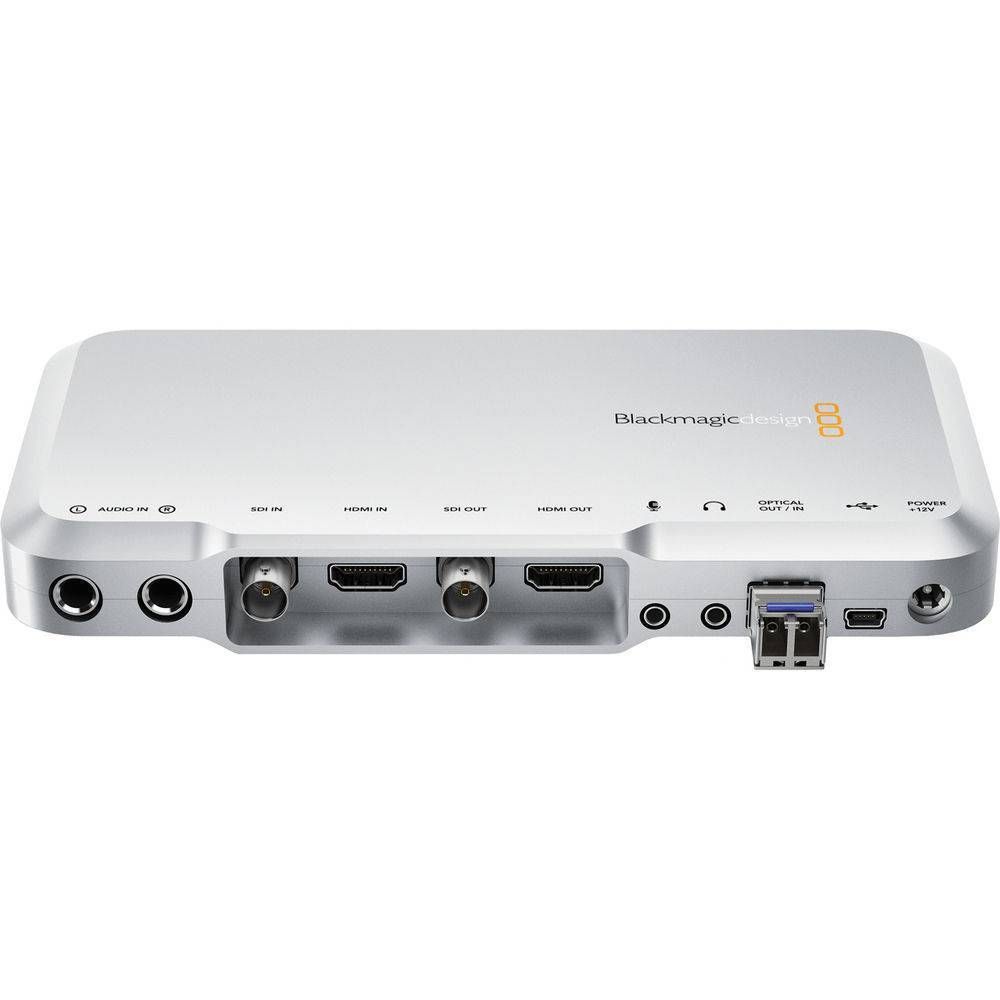

BLACKMAGIC DESIGN ATEM CAMERA CONVERTER
The Blackmagic Design ATEM Camera Converter enables extension of SDI (serial digital interface) / HDMI cameras to distances up to 28 miles (45km) via an optical fiber link. You can connect your camera to the SDI/HDMI inputs to convert videos to optical signals. This optical fiber input can be connected to the switcher program feed to convert to SDI/HDMI outputs for monitoring. In addition, the SDI/HDMI outputs can be switched between return program and camera input for monitoring.
ATEM Camera Converter Features
- Enables Extension of SDI/HDMI Cameras
- Transmission Distance - 28 miles (45km)
- Internal Battery
- Talkback Function
- 12V Power Connection
- 2 Tally LEDs
- Integrated Belt Clip / Camera Mount
- Microphone Inputs
- Aircraft-grade Aluminum Construction
- Built-in Button Pad
General
| Video Input | SDI Video Input:1 x 10 bit SD/HD switchable SDI Video Output: 1 x 10 bit SD/HD switchable DMI Video Input: 1 x HDMI 1.3 type A connector HDMI Video Output: 1 x HDMI 1.3 type A connector Optical Fiber Video Input: 1 x LC type, 10 bit SD/HD switchable Optical Fiber Video Output: 1 x LC type, 10 bit SD/HD switchable Only single-mode LC type fiber optic cables are recommended for all fiber optic connections above |
| Analog Audio | 2 x balanced 1/4" TRS connectors (stereo), line or microphone level in. When connected, replaces audio from SDI In or HDMI In. 1 x 3.5mm stereo connector for talkback microphone. 1 x 3.5mm stereo connector for stereo headphones (compatible with iPhone compatible headsets) |
| Computer Interface | 1 x USB 2.0 high speed interface for configuration and firmware updates |
| SDI Compliance | SMPTE 259M, SMPTE 292M |
| Video Sampling | 4:2:2 |
| Audio Sampling | Television standard sample rate of 48Khz, 24 bit A/D conversion |
| Color Precision | 10 bit |
| Color Space | 4:2:2 YUV |
| Multiple Rate Support | SDI and HDMI switches between 270Mb/s SD-SDI and 1.5Gb/s HD-SDI |
| Firmware Upgrade | Firmware built into software driver. Loaded at system startup or via updater software |
| Power Supply | 12V power supply included with international socket adaptors for all countries |
| Operating Systems Supported | Microsoft Windows XP, Windows Vista. Windows 7 and Apple Mac OS X |
