BLACKMAGIC DESIGN ATEM STUDIO CONVERTER 2
SKU
BMD-SWRCONVRCK2
$2,035.00
Availability:
In stock

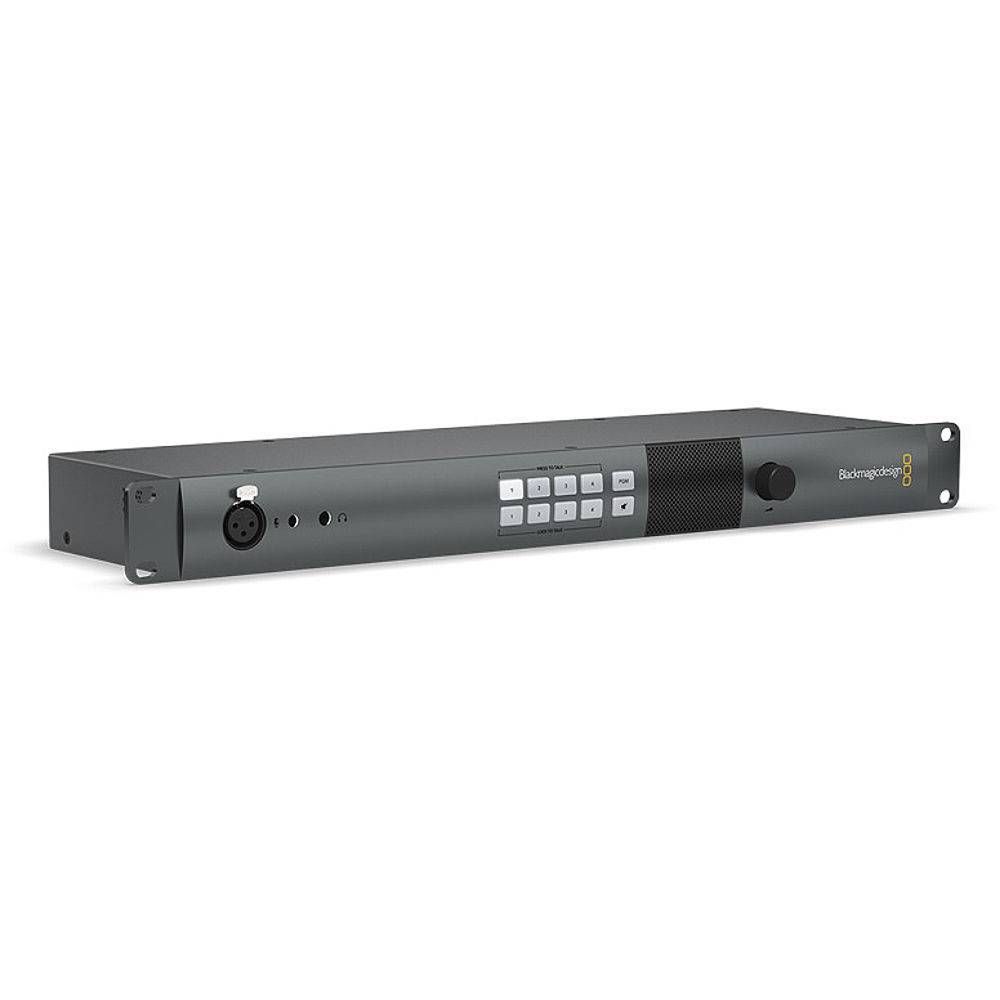

BLACKMAGIC DESIGN ATEM STUDIO CONVERTER 2
The Blackmagic Design Studio Converter 2 inputs video signals transmitted over optical fiber and convert the signals to SDI for use with video switchers. When used in conjunction with the Blackmagic Design ATEM Camera Converter, you can send video signals up to 28 miles between the camera and the switcher using available optical fiber cables. By comparison, sending an HD-SDI signal over traditional copper cable is usually limited to about 300 feet, depending on the quality of the cable.
ATEM Studio Converter 2 Features
- 4 Bidirectional Converters in 1 RU Unit
- Optical Fiber Signal Range 28 Miles
- Connects up to 4 ATEM Camera Converters
- 4 x Fiber to SDI 10-bit Converters
- 4 x Switchable SD/HD-SDI Outputs
- Camera Talkback with Select, Vol & Mute
- Connect to ATEM Switchers/Converters
- Supports SDI Switcher Tally Output
- Send PGM Feed to Fiber Connected Cameras
Standards
| Format Support | 4K DCI 4096 x 2160p: 60/50/30/29.97/25/24/23.98 UHD 3840 x 2160p: 60/59.94/50/30/29.97/25/24/23.98 2K 2048 x 1080p: 25/24/23.98 2048 x 1080PsF: 25/24/23.98 HD 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080PsF: 60/59.94/50/30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 SD NTSC 525i: 59.94 PAL 625i: 50 |
Video / Audio
| SDI Video Input | 4 x 10-bit SD/HD switchable camera inputs 1 x 10-bit SD/HD switchable program input from the switcher, including Tally information embedded in the SDI signal |
| SDI Compliance | SMPTE 259M, SMPTE 292M |
| Video Sampling | 4:2:2 |
| Color Precision | 10-bit |
| Color Space | REC 601 REC 709 |
| Optical Fiber Video Input | 4 x single mode SD/HD switchable camera inputs with LC connector |
| Optical Fiber | Input 4 x single-mode LC connectors for video with embedded audio Channels 1 & 2 are camera audio Channels 15 & 16 are talkback audio Output 4 x single-mode LC connectors for video with embedded audio Channels 1 & 2 are camera audio Channels 15 & 16 are talkback audio |
| Audio Sampling | 48 kHz 24-bit A/D conversion |
| Analog Audio Output | 4 x 3-Pin XLR Balanced Audio Pairs (1 x pair per fiber input) 2 x RCA jacks provide a L/R stereo pair |
| Talkback | 1 x 1/4" TRS headphone jack 1 x .206" TRS mic input for use with aviation-style headset 1 x 3-pin XLR connector for talkback microphone 1 x Integrated speaker |
| Talkback Control | 8 x Front panel buttons for camera operator selection, lock, mute and un-mute |
| AES/EBU Talkback Loops | Input 1 x BNC mic input 1 x BNC headphone input Output 1 x BNC mic output 1 x BNC headphone output |
General
| OS Compatibility | Mac OS X 10.7 Lion and later OS X 10.8 Mountain Lion and later Windows Windows 7 Windows 8 |
| Computer Interface | 1 x mini-B type USB 2.0 connector for initial setup, firmware updates and Converter Utility software control |
| Temperature | Operating 32 to 104°F (0 to 40°C) Storage -4 to 113°F (-20 to 45°C) |
| Power Requirements | 110 - 220 VAC, 50/60 Hz 12 - 31 VDC redundant input Note: IEC power cord is required/not included, redundant power supply not included |
| Dimensions | 1.7 x 18.9" (44 x 482 mm) 1 RU size with built-in rackmount ears |
| Weight | 4 lb (1.81 kg) |
