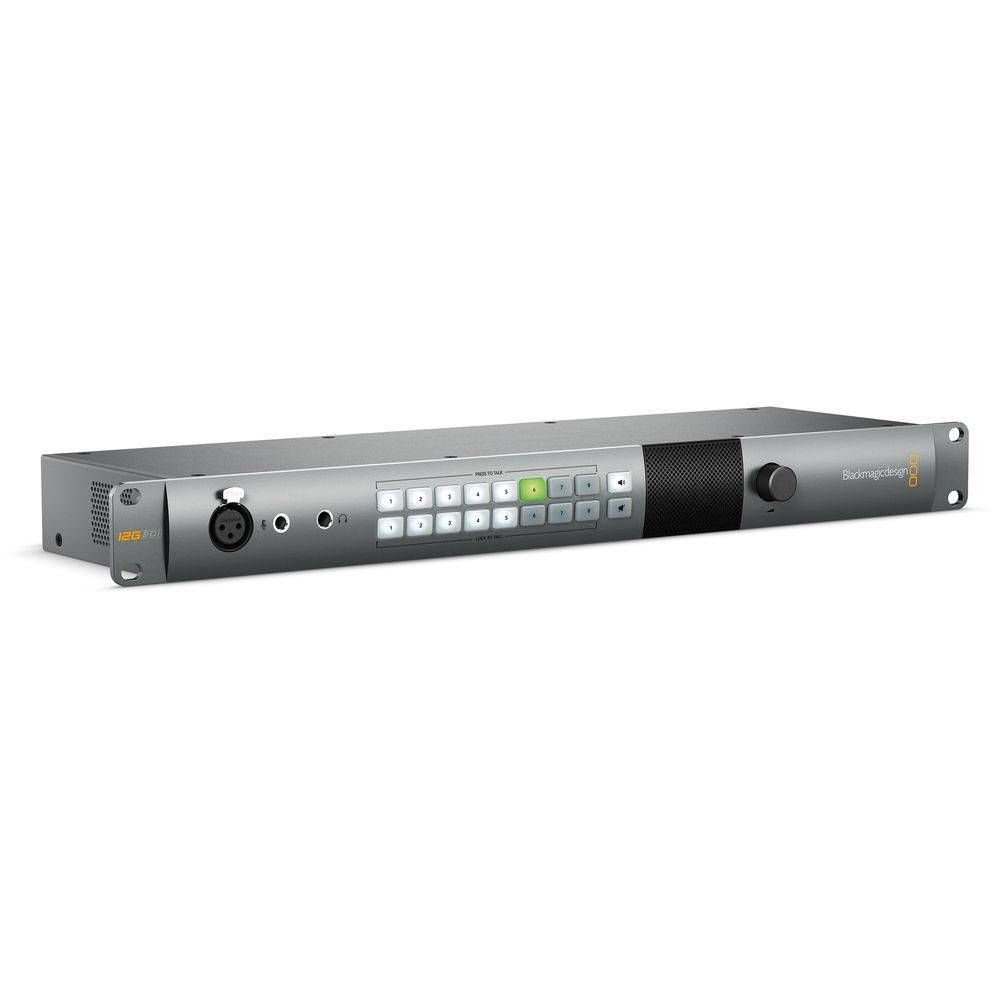

With 12G-SDI, Blackmagic Design's ATEM Talkback Converter 4K accepts high-resolution video from up to eight studio cameras or ATEM Camera Converters and allows the control room to interact with the camera operators. The 12G-SDI connections can support video with resolutions up to 4096 x 2160 at 60 fps and rout those individual signals to a switcher via SDI outputs, to a program monitor via its own SDI output, and back to the camera operator while carrying talkback audio over a single cable. Talkback audio can be captured via a microphone plugged into the XLR jack on the front, or a headset mic plugged into the appropriate jack, also on the front panel.
This unit can be upgraded to accept fiber optic connections, which carry, bi-directional 4K video, audio, and talkback for up to 28 miles without signal degradation. And because of its 1 RU size, it can easily fit into industry-standard rack-mount equipment and furniture.
ATEM Talkback Converter 4K Features
Connections

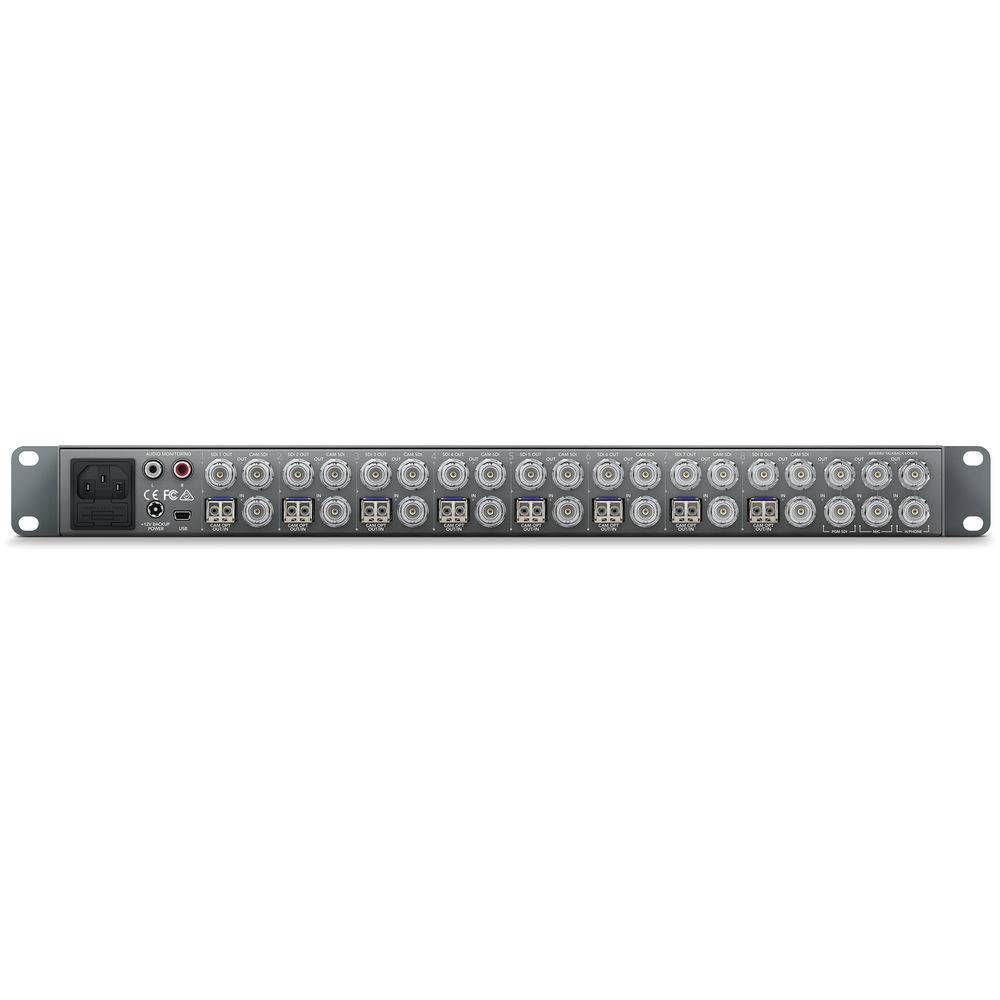

I/O | 1 x SDI Program Input 1 x SDI Program Output 1 x XLR for Talkback Microphone 1 x 1/4" TRS Headset Connector 1 x 3/16" TRS Microphone Connector 1 x Stereo RCA Monitoring Output 8 x 10-Bit SD/HD/UHD 4K Camera Input 8 x 10-Bit SD/HD/UHD 4K Camera Output 8 x 10-Bit SD/HD/UHD 4K Output With Optional Connectors 8 x LC Fiber SD/HD/UHD I/O with Audio |
Computer Interface | 1 x USB Mini-B Connector (for Firmware Updates) |
Supported Formats
SD Format Support | 525/29.97 NTSC 625/25 PAL |
HD Format Support | 1920 x 1080p: 23.98/24/25/29.97/30/50/59.94/60 1920 x 1080PsF: 23.98/24/25/29.97/30 1920 x 1080i: 50/59.94/60 1280 x 720p: 50/59.94/60 |
2K Format Support | 2048 x 1080p: 23.98/24/25 2048 x 1080PsF: 23.98/24/25 |
4K Format Support | 4096 x 2160p: 23.98/24/25/29.97/30/50/60 3840 x 2160p: 23.98/24/25/29.97/30/50/60 |
SDI Compliance | SMPTE 259M, 292M, 296M, 372M, 424M Level B, 425M |
Video Processing | Sampling: 4:4:4, 4:2:2 Color Precision: 10-Bit Color Space: REC 601, REC 709 Rate Support: SDI Automatically Switches Between SD, HD, and UHD 4K |
Audio Sampling | 24-Bit, 48 kHz A/D Conversion |
Other Specs
Compatible Operating Systems | Mac OS X 10.9 and Newer Windows 7 and 8 |
Environmental | Operating Temperature: 41 to 104°F / 5 to 40°C Storage Temperature: -4 to 113°F / -20 to 45°C Relative Humidity: 0 to 90% Non-Condensing |
Certifications | EMC, UL, FCC, CE, C-Tick, KCC |
Power Supply | 110 to 240 VAC Input with Redundant 12 to 31 VDC Input |
Power Usage | 60 W |
Dimensions | 19 x 6.3 x 1.75" / 483 x 160 x 44 mm Form Factor: 1 RU |
Weight | 5 lb / 2.3 kg |
