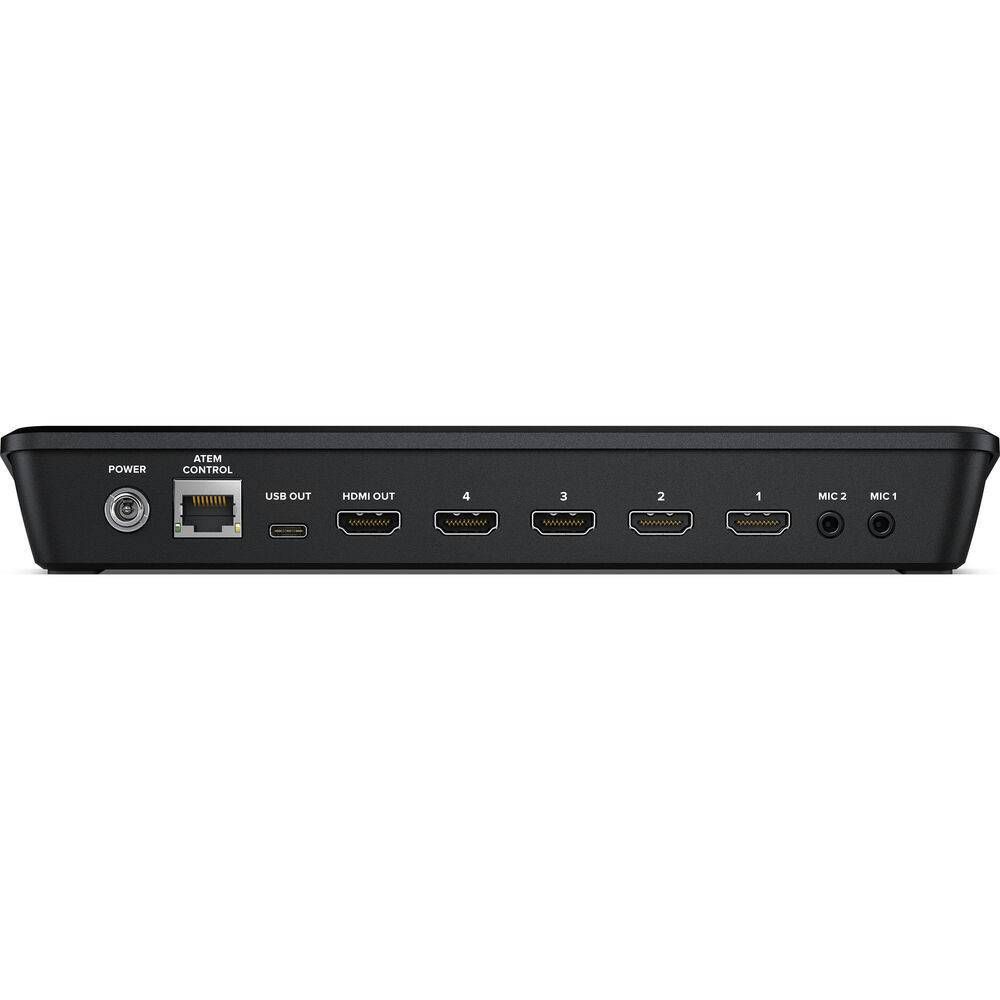

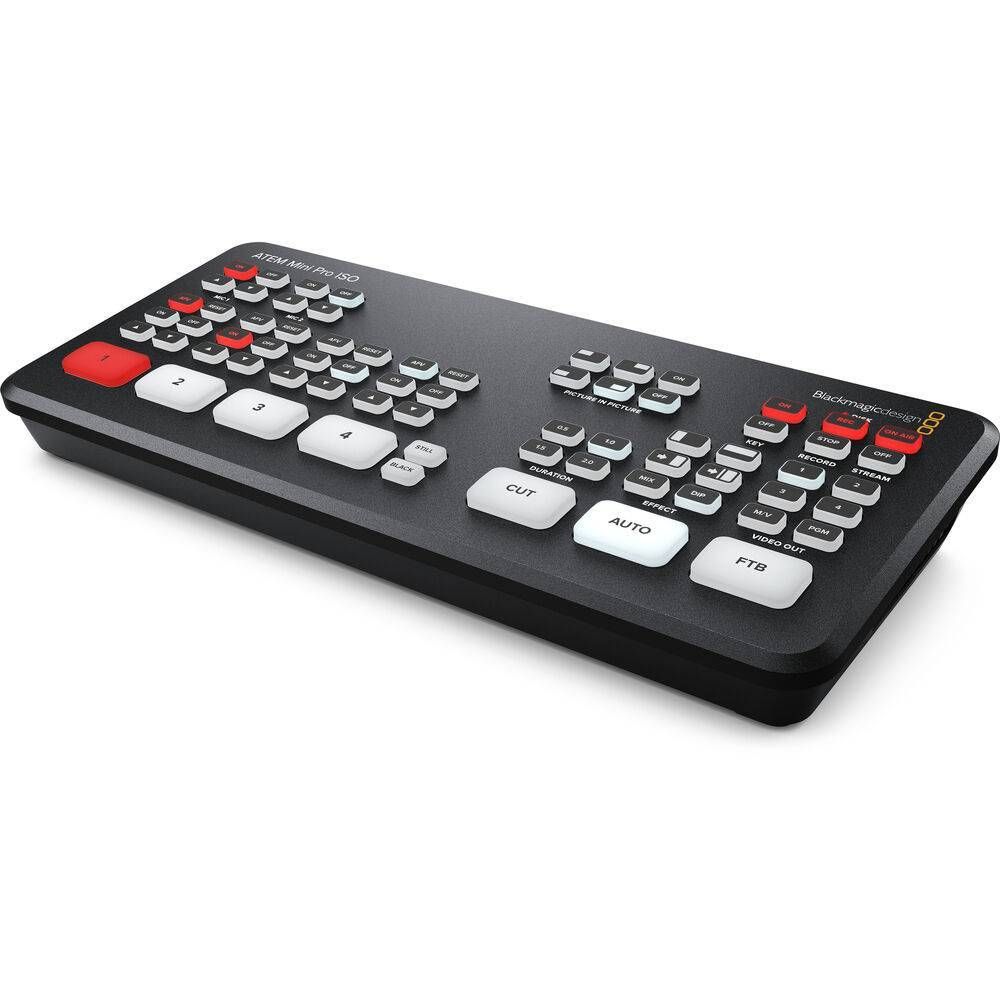

The ATEM Mini Pro ISO HDMI Live Stream Switcher from Blackmagic Design is a four-input live production switcher with an integrated control panel designed for multicamera live streaming up to HD video to the internet via Ethernet output. It features a USB output that allows you to record the program output as well as record the individual HDMI inputs to an external USB drive (not included). In addition to recording the program stream and individual inputs, the ATEM Mini Pro ISO also records the embedded audio and analog audio inputs, generating a DaVinci Resolve project file of your live stream. This allows you to take your live production into DaVinci Resolve to make tweaks or adjustments using the source material that is already on your USB drive.
ATEM Mini Pro ISO HDMI Live Stream Switcher Features
General
Available M/E Layers | 5 M/E |
Effect Types | 1 x DVE, Graphic, Transition, Chroma Key, Alpha Key, Luma Key |
Downstream Keys | 1 x Chroma, DVE 2 x Luma |
Generators | 1 x Pattern 2 x Color |
Audio Mixing | 2-Channel Mixing |
Switching Type | Pushbutton |
Color Processing | 10-Bit 4:2:2 YUV |
Input / Output
Number of Video Input Sources | 4 |
Video Inputs | 4 x HDMI Female |
Input Video Format | HDMI (10-Bit 4:2:2 YUV) 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps 1080i 50/59.94/60 fps 720p 50/59.94/60 fps |
Audio Inputs | 2 x 1/8" / 3.5 mm TRS Stereo Analog Female |
Input Audio Format | Analog |
Embedded Audio Input | HDMI: 2-Channel (per Input) |
Video Output Channels | 1 |
Video Outputs | 1 x HDMI |
Output Video Format | HDMI / RJ45 (10-Bit 4:2:2 YUV) 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps |
Embedded Audio Output | HDMI: 2-Channel (per Output) |
Multiview Output | Yes |
Monitor Output | 1 x HDMI |
Connectivity / Hardware
Other I/O | 1 x RJ45 LAN, Sync, Tally, Timecode, Firmware, Control Input/Output 1 x USB-C Firmware, Control Input/Output |
IP Video | H.264: 1920 x 1080 at 23.98p, 24p, 25p, 29.97p, 30p, 50p, 59.94p, 60p Encoding |
Transport Protocols | RTMP |
Simultaneous Streams | 1 Streams |
OS Compatibility | macOS 10.14 or Later Windows 10 *As of August, 2020: Check with manufacturer for the most up-to-date compatibility |
Wi-Fi | None |
Bluetooth | None |
Power I/O | 1 x Barrel (12 VDC) Input |
Power Consumption | 36 W |
Environmental
Operating Temperature | 41 to 104°F / 5 to 40°C |
Storage Temperature | 14 to 140°F / -10 to 60°C |
Operating Humidity | 0 to 90% |
Dimensions | 9.35 x 4.07 x 1.38" / 23.75 x 10.34 x 3.51 cm |
Weight | 19.4 oz / 550 g |
