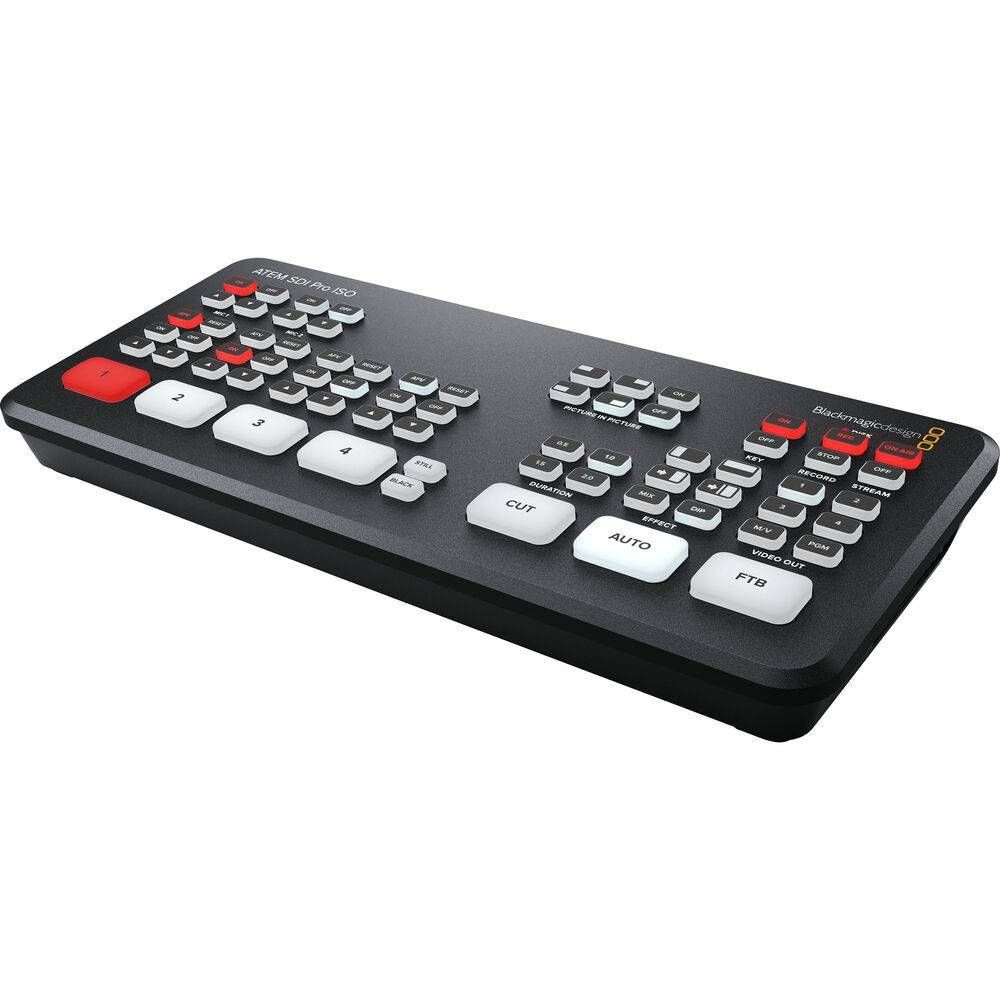

The ATEM ATEM SDI Pro ISO Switcher from Blackmagic Design is a four-input live-production switcher with an integrated control panel designed for multi-camera live streaming up to HD video to the internet via Ethernet output. It features a USB output that allows you to record the program output as well as record the individual 3G-SDI inputs to an external USB drive (not included). In addition to recording the program stream and individual inputs, the ATEM Mini Pro ISO also records the embedded audio and analog audio inputs, generating a DaVinci Resolve project file of your live stream. This allows you to take your live production into DaVinci Resolve to make tweaks or adjustments using the source material that is already on your USB drive.
ATEM SDI Pro ISO Switcher Features
General
Available M/E Layers | 5 M/E |
Effect Types | DVE, Transition, Chroma Key |
Generators | 1 x Pattern 2 x Color |
Audio Mixing | 2-Channel Mixing |
Switching Type | IR Remote, Pushbutton, Software |
Input / Output
Number of Video Input Sources | 4 |
Video Inputs | 4 x BNC (3G-SDI) |
Input Video Format | SDI (10-Bit 4:2:2 YUV) 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps 1080i at 56/59.94/60 fps 720p at 50/59.94/60 fps |
Audio Inputs | 2 x 1/8" / 3.5 mm TRS Stereo Analog Female |
Input Audio Format | Analog |
Embedded Audio Input | SDI: 2-Channel (per Input) |
Video Output Channels | 3 |
Video Outputs | 2 x BNC (3G-SDI) 1 x USB-C |
Output Video Format | SDI (10-Bit 4:2:2 YUV) 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps USB-C (10-Bit 4:2:2 YUV) 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps |
Embedded Audio Output | SDI |
Multiview Output | None |
Connectivity / Hardware
Other I/O | 1 x RJ45 Control Input/Output |
HDCP Support | None |
OS Compatibility | macOS 11 macOS 12 or Later Windows 10 Windows 11 *As of July, 2022: Check with manufacturer for the most up-to-date compatibility |
Wi-Fi | None |
Bluetooth | None |
Power I/O | 1 x Barrel (12 VDC) Input |
Power Consumption | Device: 36 W |
Environmental
Operating Temperature | 37 to 72°F / 5 to 40°C |
Storage Temperature | 14 to 140°F / -10 to 60°C |
Operating Humidity | 0 to 90% (Non-Condensing) |
Dimensions | 9.35 x 4.67 x 1.38" / 23.75 x 11.86 x 3.51 cm |
Weight | 23.9 oz / 678 g |
