BLACKMAGIC DESIGN BMD-HYPERD/AVIDA12/7HDR VIDEO ASSIST 7 " 12G-SDI/HDMI HDR RECORDING MONITOR 0525
SKU
BMD-HYPERD/AVIDA12/7HDR
MFR#
BMD-HYPERD/AVIDA12/7HDR
$915.00
Availability:
Out of stock

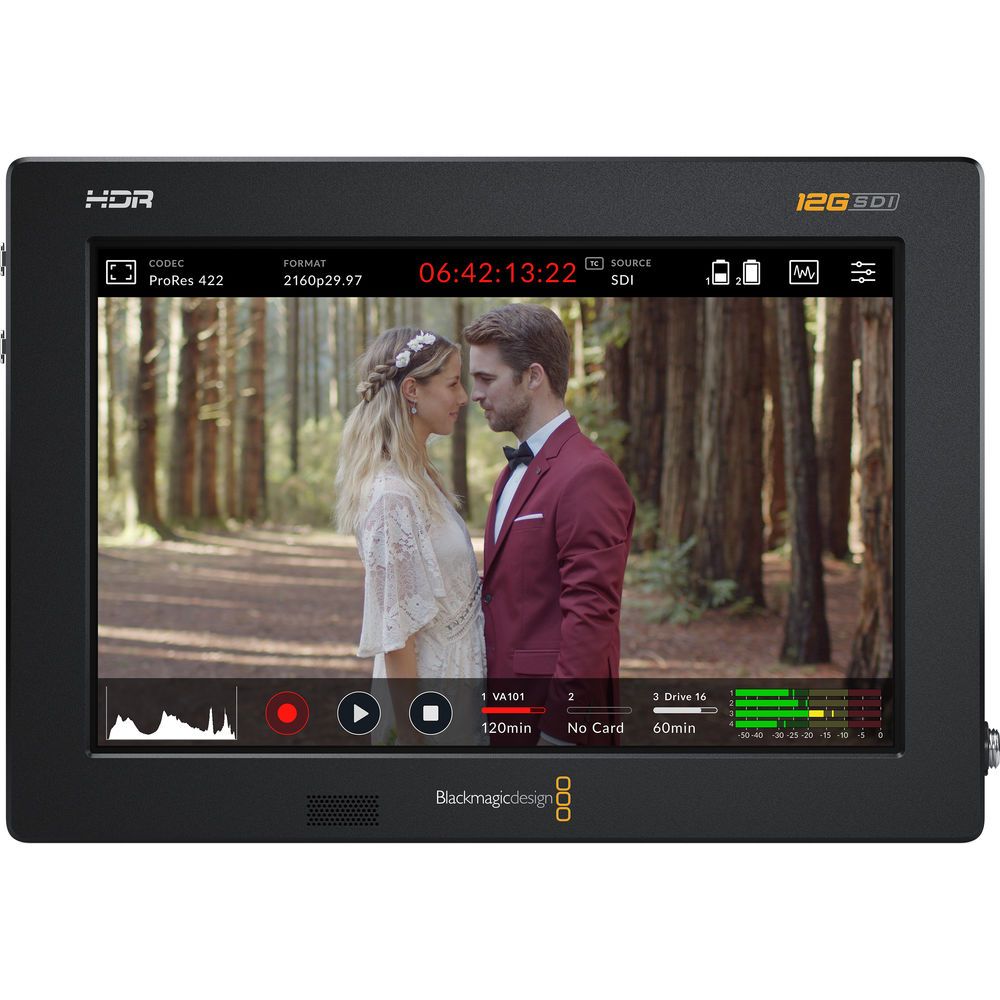

BLACKMAGIC DESIGN BMD-HYPERD/AVIDA12/7HDR VIDEO ASSIST 7" 12G
Add professional monitoring and high-quality recording to virtually any camera with the Video Assist 7" 12G-SDI/HDMI HDR Recording Monitor from Blackmagic Design. It features a bright 7", 1920 x 1200 display with 2500 cd/m² brightness to help you frame and focus your shots and provides 12G-SDI and HDMI inputs for recording the video output from professional and consumer cameras. The monitor also features two balanced 3-pin mini-XLR inputs with 48V phantom power support for crisp audio recording. You can monitor and record HDR video up to DCI 4K, UHD 4K, 2K, or HD 10-bit 4:2:2, and up to 16 channels of embedded 24-bit 48 kHz audio. Blackmagic Raw recording is available for select Canon, FUJIFILM, Nikon, Panasonic, and SIGMA cameras.
Key Features
- 7" 1920 x 1200 Touchscreen LCD
- Record up to DCI or UHD 4K HDR Video
- HDMI and 12G-SDI Video Inputs & Outputs
- 10-Bit, 4:2:2 ProRes & DNxHD Encoding
- Blackmagic Raw with Select Cameras
- 3D LUTs, 2500 cd/m² Brightness
- Stores to Dual SDHC/XC Memory Slots
- Two Balanced Mini-XLR Audio Inputs
- Histogram, Waveform, Vectorscope
- Dual L-Series Battery Slots, AC Adapter
Blackmagic Design Video Assist 12G HDRSpecs
| Panel Type |
IPS-Type LCD
|
| Display Size |
7.0" / 17.8 cm
|
| Native Resolution |
1920 x 1200
|
| Aspect Ratio |
16:10
|
| Touchscreen |
Yes
|
| Maximum Brightness |
2500 nits / cd/m2
|
| Color Support |
1.07 Billion Colors (10-Bit)
|
| HDR Support |
Yes, HDR10/Hybrid Log Gamma
|
| Pixels Per Inch (ppi) |
323 ppi
|
| Color Gamut |
100% Rec. 709
100% Rec. 2020 |
| LUT Support |
Yes
|
| Image Controls |
Histogram, Picture-in-Picture, RGB Parade, Vectorscope, Waveform
|
| Video I/O |
1x HDMI 2.0a Input
1x BNC (12G-SDI) Input 1x HDMI 2.0a Output 1x BNC (12G-SDI) Output |
| Embedded Audio |
HDMI: 8-Channel
SDI: 16-Channel |
| Audio I/O |
1x 1/8" / 3.5 mm Headphone Output
2x Mini-XLR Mic/Line Input |
| Built-In Speaker |
Mono
|
| Power I/O |
1x Barrel (12 VDC) Input
|
| Other I/O |
1x USB-C
1x 2.5 mm (LANC) |
| Media/Memory Card Slot |
Dual Slot: SD/SDHC/SDXC (UHS-II)
|
| Wi-Fi |
No
|
| Bluetooth |
No
|
| Mobile App Compatible |
No
|
| Video Format |
SDI (10-Bit 4:2:2 RGB)
DCI 4K: 25/24/23.98 UHD 4K: 60/59.94/50/30/29.97/25/24/23.98 DCI 2K: 25/24/23.98 DCI 2K PsF: 25/24/23.98 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080PsF: 30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 576i: 50 480i: 59.94 HDMI (10-Bit) DCI 4K: 25/24/23.98 UHD 4K: 60/59.94/50/30/29.97/25/24/23.98 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 576i: 50 480i: 59.94 |
| Gamma Curve |
HDR-HLG, Rec709, Rec2020
|
| Timecode Support |
Yes
|
| Pre-Roll Record |
No
|
| Encoding Formats |
Up to 4096 x 2160
Blackmagic Raw ProRes 422, 422 HQ, LT, Proxy 10-Bit 4:2:2 at up to 60 fps DNxHD HQX, LB, LB MXF, SQ, SQ MXF 10-Bit 4:2:2 at up to 60 fps |
| Maximum Audio Tracks |
16
|
| Phantom Power |
+48 V
|
| Input Power |
100 to 240 VAC, 50 / 60 Hz
12 VDC |
| Built-In Battery |
No
|
| Battery Type |
2x L-Series
|
| Power Consumption |
36 W
|
