BLACKMAGIC DESIGN BMD-HYPERD/AVIDA12/5HDR VIDEO ASSIST 5 " 12G-SDI/HDMI HDR RECORDING MONITOR 0525
SKU
BMD-HYPERD/AVIDA12/5HDR
MFR#
BMD-HYPERD/AVIDA12/5HDR
$685.00
Availability:
Out of stock

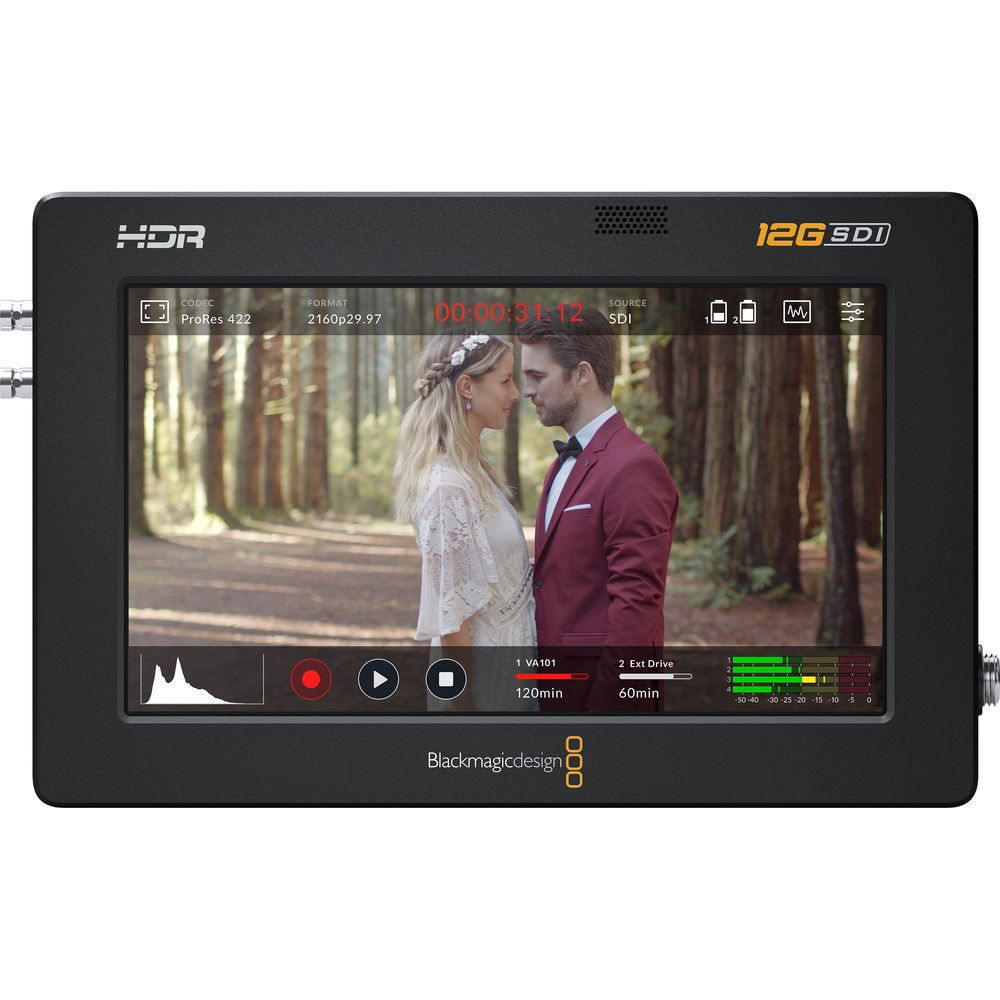

BLACKMAGIC DESIGN VIDEO ASSIST 5" 12G
Add professional monitoring and high-quality recording to virtually any camera with the Video Assist 5" 12G-SDI/HDMI HDR Recording Monitor from Blackmagic Design. It features a bright 5", 1920 x 1080 display with 2500 cd/m² brightness to help you frame and focus your shots and provides 12G-SDI and HDMI inputs for recording the video output from professional and consumer cameras. You can monitor and record HDR video up to DCI 4K, UHD 4K, 2K, or HD 10-bit 4:2:2, and up to 16 channels of embedded 24-bit 48 kHz audio. Blackmagic Raw recording is available for select Canon, FUJIFILM, Nikon, Panasonic, and SIGMA cameras.
Key Features
- 5" 1920 x 1080 Touchscreen LCD
- Record up to DCI or UHD 4K HDR Video
- HDMI and 12G-SDI Video Inputs & Outputs
- 10-Bit, 4:2:2 ProRes & DNxHD Encoding
- Blackmagic Raw with Select Cameras
- 3D LUTs, 2500 cd/m² Brightness
- Stores to Single SDHC/XC Memory Slot
- Histogram, Waveform, Vectorscope
- Dual L-Series Battery Slots, AC Adapter
Blackmagic Design Video Assist 12G HDRSpecs
| Panel Type |
IPS-Type LCD
|
| Display Size |
5.0" / 12.7 cm
|
| Native Resolution |
1920 x 1080
|
| Aspect Ratio |
16:9
|
| Touchscreen |
Yes
|
| Maximum Brightness |
2500 nits / cd/m2
|
| Color Support |
1.07 Billion Colors (10-Bit)
|
| HDR Support |
Yes, HDR10/Hybrid Log Gamma
|
| Pixels Per Inch (ppi) |
440 ppi
|
| Color Gamut |
100% Rec. 709
100% Rec. 2020 |
| LUT Support |
Yes
|
| Image Controls |
Histogram, Picture-in-Picture, RGB Parade, Vectorscope, Waveform
|
| Video I/O |
1x HDMI 2.0a Input
1x Micro BNC (12G-SDI) Input 1x HDMI 2.0a Output 1x Micro BNC (12G-SDI) Output |
| Embedded Audio |
HDMI: 8-Channel
SDI: 16-Channel |
| Audio I/O |
1x 1/8" / 3.5 mm Headphone Output
|
| Built-In Speaker |
Mono
|
| Power I/O |
1x Barrel (12 VDC) Input
|
| Other I/O |
1x USB-C
|
| Media/Memory Card Slot |
Single Slot: SD/SDHC/SDXC (UHS-II)
|
| Wi-Fi |
No
|
| Bluetooth |
No
|
| Mobile App Compatible |
No
|
| Video Format |
SDI (10-Bit 4:2:2 RGB)
DCI 4K: 25/24/23.98 UHD 4K: 60/59.94/50/30/29.97/25/24/23.98 DCI 2K: 25/24/23.98 DCI 2K PsF: 25/24/23.98 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080PsF: 30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 576i: 50 480i: 59.94 HDMI (10-Bit) DCI 4K: 25/24/23.98 UHD 4K: 60/59.94/50/30/29.97/25/24/23.98 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 576i: 50 480i: 59.94 |
| Gamma Curve |
HDR-HLG, Rec709, Rec2020
|
| Timecode Support |
Yes
|
| Pre-Roll Record |
No
|
| Encoding Formats |
Up to 4096 x 2160
Blackmagic Raw ProRes 422, 422 HQ, LT, Proxy 10-Bit 4:2:2 at up to 60 fps DNxHD HQX, LB, LB MXF, SQ, SQ MXF 10-Bit 4:2:2 at up to 60 fps |
| Maximum Audio Tracks |
16
|
| Input Power |
100 to 240 VAC, 50 / 60 Hz
12 VDC |
| Built-In Battery |
No
|
| Battery Type |
2x L-Series
|
| Power Consumption |
36 W
|
