BLACKMAGIC DESIGN BMD-BDLKMINIMON3G DECKLINK MINI MONITOR HD.

Black Magic Design

SKU

BMD-BDLKMINIMON3G

MFR#

BMD-BDLKMINIMON3G

$129.00

Availability: Out of stock

BLACKMAGIC DESIGN DECKLINK MINI MONITOR HD.

Be the first to review this product

Description

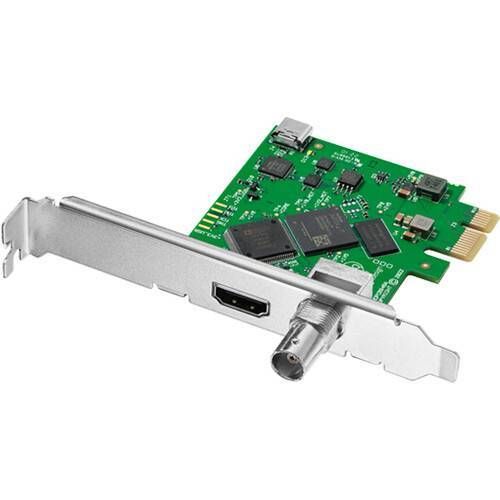

Monitor your computer's video output via SDI or HDMI with the Blackmagic Design DeckLink Mini Monitor HD. This 1-lane PCIe slot playback card with SDI and HDMI outputs, compatible with 1-, 4-, 8-, and 16-lane PCIe slots, providing you with just the playback and monitoring functionality for delivering broadcast-quality video via HDMI or SDI monitors.

The card supports up to DCI 2k formats and is compatible with such software packages as DaVinci Resolve and Final Cut Pro. In addition, the card supports hardware-based real-time color space conversion. The card also automatically switches between SD and HD formats, so it'll handle all common video formats as well as HDR.

Rating & Review

Product Details

Mini Monitor HD Specs

System Connection	(Length Unspecified)
Video Outputs	1 x BNC (3G-SDI) (Monitor) 1 x HDMI (HDMI 2.0) (Monitor)
Audio Outputs	None

Format Support

Output Video Format

SDI (8/10/12-Bit 4:4:4 RGB)
1080p at 23.98/24/25/29.97/30 fps
1080PsF at 23.98/24/25/29.97/30/50/59.94/60 fps
1080i at 50/59.94/60 fps
720p at 50/59.94/60 fps
576i / 625 lines at 50 fps
480i / 525 lines 59.94 fps
SDI (8/10-Bit 4:2:2 YUV)
DCI 2K at 23.98/24/25/29.97/30/50/59.94/60 fps
DCI 2KPsF at 23.98/24/25/29.97/30 fps
1080p at 23.98/24/25/29.97/30/50/59.94/60 fps
1080PsF at 23.98/24/25/29.97/30 fps
1080i at 50/59.94/60 fps
720p at 50/59.94/60 fps
576i / 625 lines at 50 fps
480i / 525 lines at 59.94 fps
HDMI (10/12-Bit 4:4:4 RGB)
1080p at 23.98/24/25/29.97/30 fps
1080i at 50/59.94/60 fps
720p at 50/59.94/60 fps
576i / 625 lines at 50 fps
480i / 525 lines at 59.94 fps
HDMI (8-Bit 4:4:4 RGB)
1080p at 23.98/24/25/29.97/30/50/59.94/60 fps
1080i at 50/59.94/60 fps
720p at 50/59.94/60 fps
576i / 625 lines at 50 fps
480i / 525 lines at 59.94 fps
HDMI (12-Bit 4:2:2 YUV)
1080p at 23.98/24/25/29.97/30/50/59.94/60 fps
1080i at 50/59.94/60 fps
720p at 50/59.94/60 fps
576i / 625 lines at 50 fps
480i / 525 lines at 59.94 fps

Embedded Audio

SDI: 16-Channel
HDMI: 8-Channel

Standards

Video Standard Compliance	SMPTE 259M/274M/296M/424M/425M-A/425M-B/ST-2108-1
HDR Compatibility	Not Specified by Manufacturer

Hardware

OS Compatibility	macOS 11.1 macOS 12.0 or Later Windows 10 Windows 11 Linux *As of July 2022: Check with the manufacturer for the most up-to-date compatibility
Power Consumption	Device: 3 W

Environmental

Operating Temperature	37 to 72°F / 5 to 40°C
Storage Temperature	-4 to 113°F / -20 to 45°C
Operating Humidity	0 to 90% (Non-Condensing)
Storage Humidity	0 to 90% (Non-Condensing)
