BLACKMAGIC DESIGN DECKLINK MINI RECORDER HD
SKU
BMD-BDLKMINIREC3G
MFR#
BMD-BDLKMINIREC3G
$129.00
Availability:
Out of stock

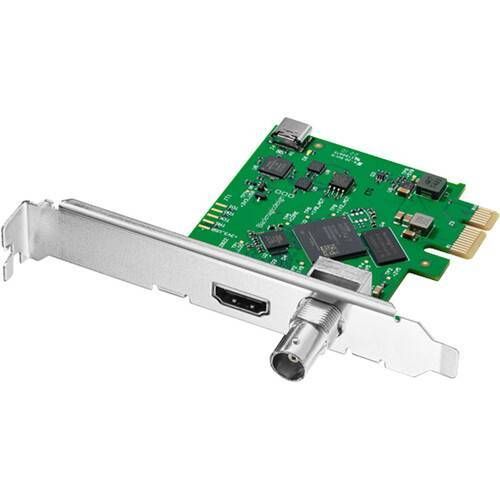

BLACKMAGIC DESIGN DECKLINK MINI RECORDER HD
Record HD video over SDI or HDMI with the Blackmagic Design DeckLink Mini Recorder HD. This 1-lane PCIe slot playback card with SDI and HDMI inputs is, compatible with 1-, 4-, 8-, and 16-lane PCIe slots, allowing you to capture up to DCI 2K video over SDI, and HD video over HDMI 2.0.
The card is compatible with such software packages as Wirecast, vMix, and OBS. In addition, the card supports hardware-based real-time color space conversion. The card also automatically switches between SD and HD formats, so it'll handle all common video formats as well as HDR.
Mini Recorder HD Specs
| System Connection | (Length Unspecified) |
| Video Inputs | 1 x BNC (3G-SDI) 1 x HDMI (HDMI 2.0) |
| Audio Inputs | None |
| Simultaneous Multi-Input Support | Not Specified by Manufacturer |
Format Support
| Input Video Format | SDI (8/10/12-Bit 4:4:4 RGB) 1080p at 23.98/24/25/29.97/30 fps 720p at 50/59.94/60 fps 576i / 625 lines at 50 fps 480i / 525 lines at 59.94 fps SDI (8/10-Bit 4:2:2 YUV) DCI 2K at 23.98/24/25/29.97/30/50/59.94/60 fps DCI 2KPsF at 23.98/24/25/29.97/30 fps 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps 1080PsF at 23.98/24/25/29.97/30 fps 1080i at 50/59.94/60 fps 576i / 625 lines at 50 fps 480i / 525 lines at 59.94 fps HDMI (8-Bit 4:4:4 RGB, YUV) 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps 1080i at 50/59.94/60 fps 720p at 50/59.94/60 fps 576i / 625 lines at 50 fps 480i / 525 lines at 59.94 fps HDMI (12-Bit 4:4:4 YUV) 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps 1080i at 50/59.94/60 fps 720p at 50/59.94/60 fps 576i / 625 lines at 50 fps 480i / 525 lines at 59.94 fps |
| Embedded Audio | SDI: 16-Channel HDMI: 8-Channel |
Standards
| Video Standard Compliance | SMPTE 259M/274M/296M/424M/425M-A/425M-B/ST-2108-1 |
| HDR Compatibility | Not Specified by Manufacturer |
Hardware
| OS Compatibility | macOS 11.1 macOS 12.0 or Later Windows 10 Windows 11 Linux *As of July, 2022: Check with manufacturer for the most up-to-date compatibility |
| Power Consumption | Device: 3 W |
Environmental
| Operating Temperature | 37 to 72°F / 5 to 40°C |
| Storage Temperature | -4 to 113°F / -20 to 45°C |
| Operating Humidity | 0 to 90% (Non-Condensing) |
| Storage Humidity | 0 to 90% (Non-Condensing) |
General
| Dimensions | 3.62" / 91.95 mm |
| Weight | 1.98 oz / 56 g |
