The Blackmagic Design SmartView 4K 2 is a professional 15.6" TFT LCD monitor with a native resolution of 3840 x 2160 and two multi-rate 12G-SDI inputs. The inputs automatically switch between SD, HD, and 4K formats, including up to DCI 4K (4096 x 2160) at 60 fps. An SMPTE-compatible optical fiber socket enables you to add a separate module for SDI fiber input.
When monitoring SD, 720p, or 1080p SDI sources, the built-in Teranex processor uses Blackmagic's PixelMotion algorithms to automatically deinterlace and scale video up to UHD 4K. This gives users optimum image quality, even when working with lower-resolution images.
Built-In Control Buttons and Customizable Frame Markers

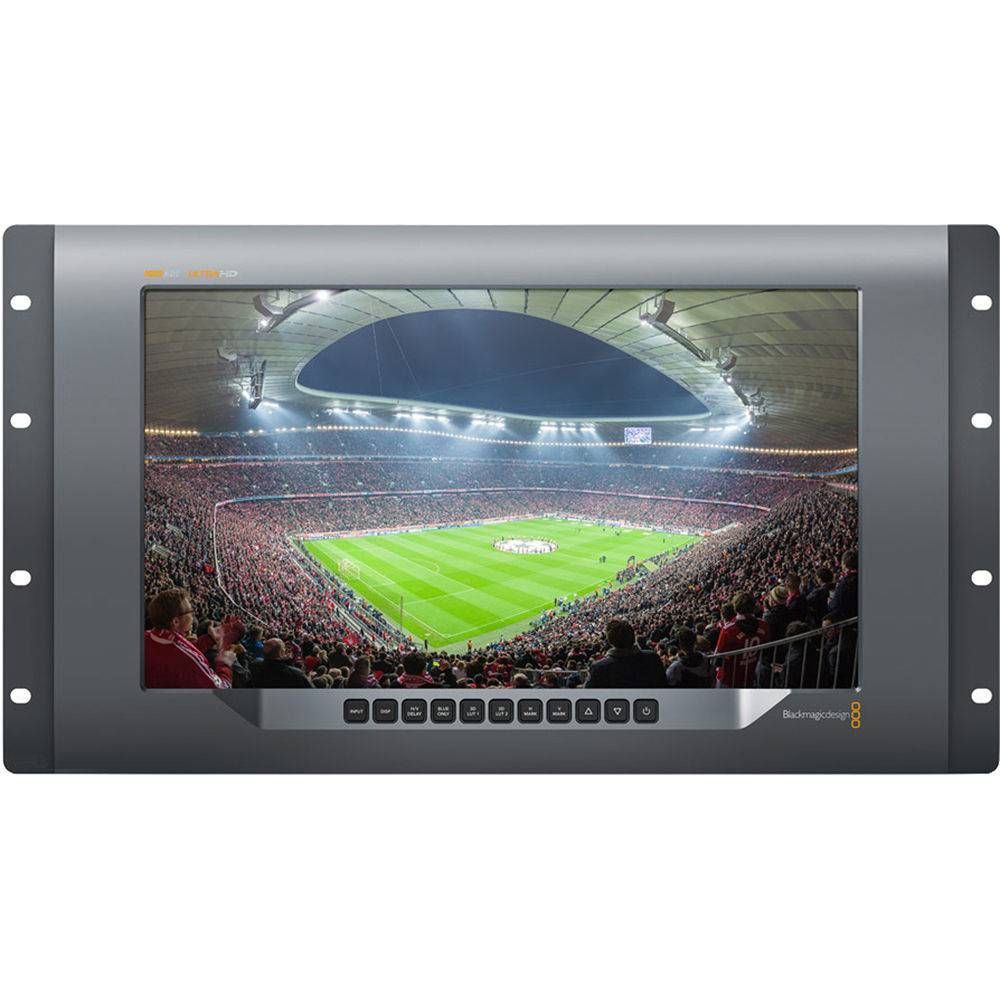

The SmartView 4K 2's machined metal frame provides built-in control buttons for access to advanced broadcast features including 3D LUTs, H/V delay, blue channel only, and customizable frame markers. The chassis is rack-mountable (6 RU) and also has VESA mounting holes for installation on articulating arms.
Local and Remote Control
In addition to the front panel buttons, the monitor can be controlled remotely via the rear Ethernet connection using the downloadable Mac or Windows software, ideal for hard-to-reach setups. With both AC power as well as 12 VDC power inputs, the SmartView 4K is well suited for use in the studio or on the set.
BLACKMAGIC DESIGN SMARTVIEW 4K 2 15.6 " DCI 4K BROADCAST MONITOR (6RU) Features
General
Panel Type | TFT LCD |
Display Size | 15.6" / 39.6 cm |
Resolution | 3840 x 2160 |
Aspect Ratio | 16:9 |
Touchscreen | No |
Contrast Ratio | 1000:1 |
Bit Depth / Color Support | 8-Bit (16.7 Million Colors) |
Pixels Per Inch (PPI) | 282 ppi |
Response Time | 25 ms |
Color Gamut | 100% Rec. 709 |
Real-Time LUT Monitoring | SDR, HDR |
Image Controls | Blue Only, Focus Peaking, H/V Delay, Pixel Zoom |
Video I/O | 2 x BNC (12G-SDI) Input 1 x BNC (12G-SDI) Output |
Embedded Audio | SDI: 16-Channel |
Audio I/O | None |
Built-In Speaker | None |

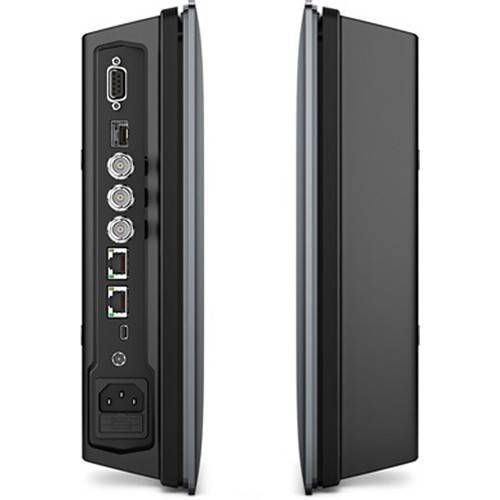

Other I/O | 2 x RJ45 (LAN) 1 x DE-9/DB-9 (Tally) 1 x Mini-USB 2.0 |
Expansion Slots | 1 x SFP+ Slot |
Media/Memory Card Slot | None |
Format Support / Power
Video Format | SDI DCI 4K: 60/59.94/50/48/47.95/30/29.97/25/24/23.98 UHD 4K: 60/59.94/50/48/47.95/30/29.97/25/24/23.98 DCI 2K: 60/59.94/50/48/47.95/30/29.97/25/24/23.98 DCI 2K PsF: 30/29.97/25/24/23.98 1080p: 60/59.94/50/48/47.95/30/29.97/25/24/23.98 1080PsF: 30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 |
AC Input Power | 90 to 240 VAC, 50 / 60 Hz |
DC Input Power | 12 to 15 VDC |
Battery Type | None |
Power Consumption | 24 W (Maximum) |
Environmental
Operating Temperature | 32 to 104°F / 0 to 40°C |
Operating Humidity | 0 to 90% |
Storage Temperature | -4 to 140°F / -20 to 60°C |
Material of Construction | Metal |
Dimensions | 18.98 x 10.47 x 2.75" / 48.21 x 26.59 x 6.96 cm |
Weight | 7.94 lb / 3.60 kg |
