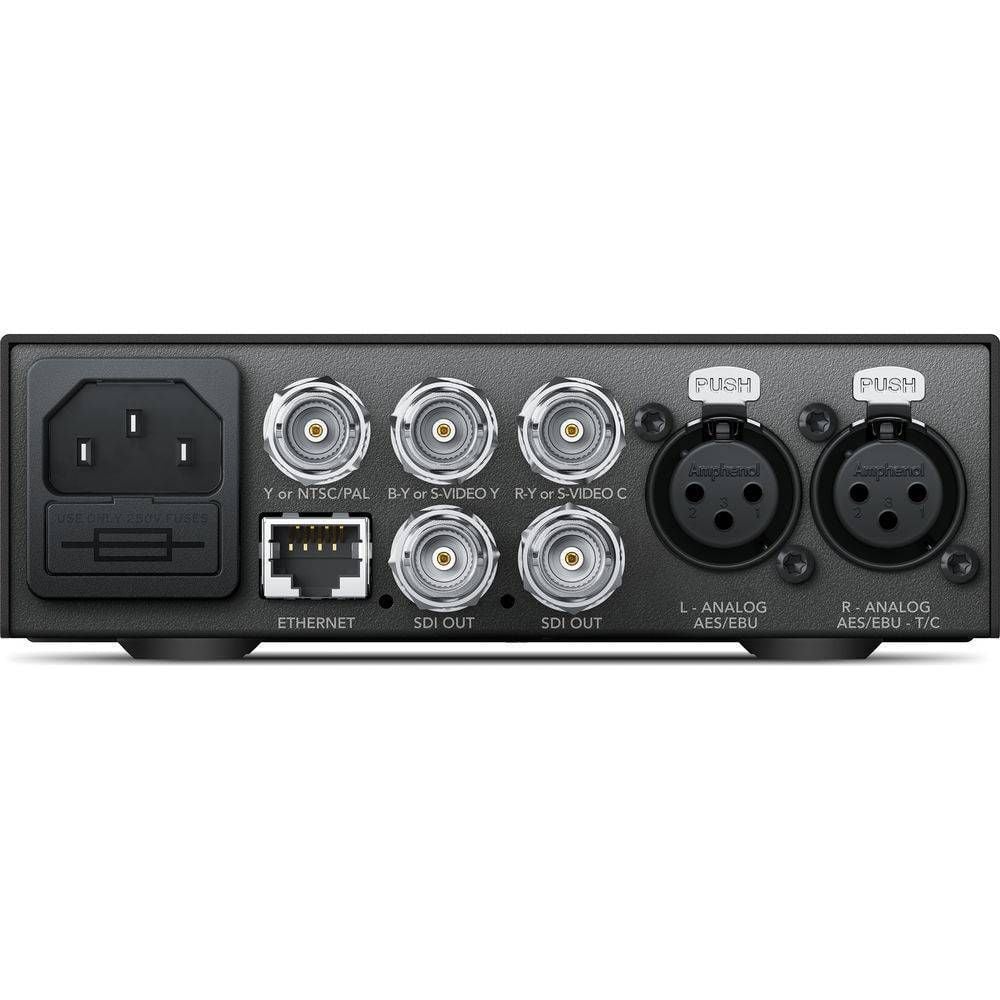

BLACKMAGIC DESIGN TERANEX MINI - ANALOG TO SDI 12G
Supporting up to 12G-SDI data rates with intelligent heat dissipation, and offering features such as XLR connections and an Ethernet control and PoE port, the Teranex Mini Analog to SDI 12G Converter, from Blackmagic Design, is a highly improved solution for rack-mount as well as cable duct and desktop installations. Upconvert an analog video signal to up to Full 4K DCI 4096x2160p and route it out over up to two independent 12G-SDI outputs in SD, HD, 6G, or 12G-SDI formats. Run 4096x2160p signals approximately 70 ft using 6G-SDI cables, and carry lower-resolution signals, like 3G-SDI or HD-SDI, for much longer than standard lengths. When 12G-SDI cables will be available on the market, you'll be able to extend 4K DCI 4096x2160p signals for over 250 ft. You can also connect separate audio via full-size XLR inputs that are switchable between balanced analog and AES/EBU digital audio.
Teranex Mini Analog to SDI 12G Converter Features
- Advanced High-Data Rate Signal Converter
- Upconvert Analog to 4K DCI 4096x2160p
- Two Independent 12G-SDI Outputs
- Run 4096x2160p 70 ft Using 6G-SDI Cables
- XLR Inputs Switchable to AES/EBU
- Ethernet Port for Remote Control or PoE
- Supports Optional LCD Smart Front Panel
- Intelligent Thermal Heat Dissipation
- 3 Units 1U Rack-Mountable in 19" Rack
- Manage Numerous Units from a Mac or PC
General
| Analog Video Input | Component SD/HD, NTSC, PAL, and S‑Video |
| SDI Video Output | 2x SDI on BNC (automatically matches SD, HD, 3G, 6G, 12G-SDI HDMI video input) |
| Analog Audio Input | 2 channels professional balanced analog audio via XLR connectors Right XLR can be configured for timecode input |
| AES/EBU Audio Input | 4 channels professional 110 ohm balanced digital audio via XLR connectors Right XLR can be configured for timecode input |
| Multi Rate Support | SDI output switchable between HD for composite and S-Video and 4K for component HD |
| Updates and Configuration | USB or Ethernet |
| Re-Clocking | Yes |
| SDI Format Support | 525/29.97 NTSC, 625/25 PAL, 1280 x 720p50, 1280 x 720p59.94, 1280 x 720p60, 1920 x 1080i50, 1920 x 1080i59.94, 1920 x 1080i60, 1920 x 1080p23.98, 1920 x 1080p24, 1920 x 1080p25, 1920 x 1080p29.97, 1920 x 1080p30, 1920 x 1080p50, 1920 x 1080p59.94, 1920 x 1080p60, 2048 x 1080PsF23.98, 2048 x 1080PsF24, 2048 x 1080PsF25, 2048 x 1080p23.98, 2048 x 1080p24, 2048 x 1080p25, 3840 x 2160p23.98, 3840 x 2160p24, 3840 x 2160p25, 3840 x 2160p29.97, 3840 x 2160p30, 3840 x 2160p50, 3840 x 2160p59.94, 3840 x 2160p60, 4096 x 2160p23.98, 4096 x 2160p24, 4096 x 2160p25, 4096 x 2160p29.97, 4096 x 2160p30, 4096 x 2160p50, 4096 x 2160p59.94, 4096 x 2160p60 |
| Analog Format Support | 625/25 PAL, 525/23.98 NTSC, 525/29.97 NTSC, 1920 x 1080i50, 1920 x 1080i59.94, 1920 x 1080i60, 1280 x 720p50, 1280 x 720p59.94, 1280 x 720p60 |
| SDI Compliance | SMPTE 292M, SMPTE 259M, SMPTE 296M, SMPTE 424M-B, ITU-R BT.656, and ITU-R BT.601 |
| SDI Video Rates | SDI video connections are switchable between standard definition and high definition |
| SDI Video Sampling | 4:2:2 and 4:4:4 |
| SDI Audio Sampling | Television standard sample rate of 48 kHz and 24-bit |
| SDI Color Precision | YUV 4:2:2 and RGB 4:4:4 in HD, 2K, and 4K |
| SDI Color Space | REC 601, REC 709 |
| Analog Color Space | REC 601, REC 709 |
| Analog Color Precision | 4:2:2 |
| Software Control | Mac OS X and Windows software upgrade via USB and Ethernet |
| Internal Software Upgrade | Via included updater application |
| Basic Settings Control | Mini Switches, USB, and Ethernet via free software utility |
| Power Supply | 1x built-in international AC power supply with IEC C14 inlet IEC power cable required (not included) 90 - 240 VAC input |
| Power Over Ethernet | Can be powered via 48 VDC using PoE (Power-over-Ethernet) |
| Power Consumption | 15 W |
| Operational Voltage Range | 90 - 240 VAC |
| Operating Temperature | 32 to 104°F (0 to 40°C) |
| Storage Temperature | -4 to 140°F (-20 to 60°C) |
| Relative Humidity | 0 to 90% non-condensing |
| Dimensions | W x H x D: 5.5 x 1.8 x 6.7" (14 x 4.6 x 17 cm) (with SDI port included) |
| Weight | 1.4 lb (0.63 kg) |
