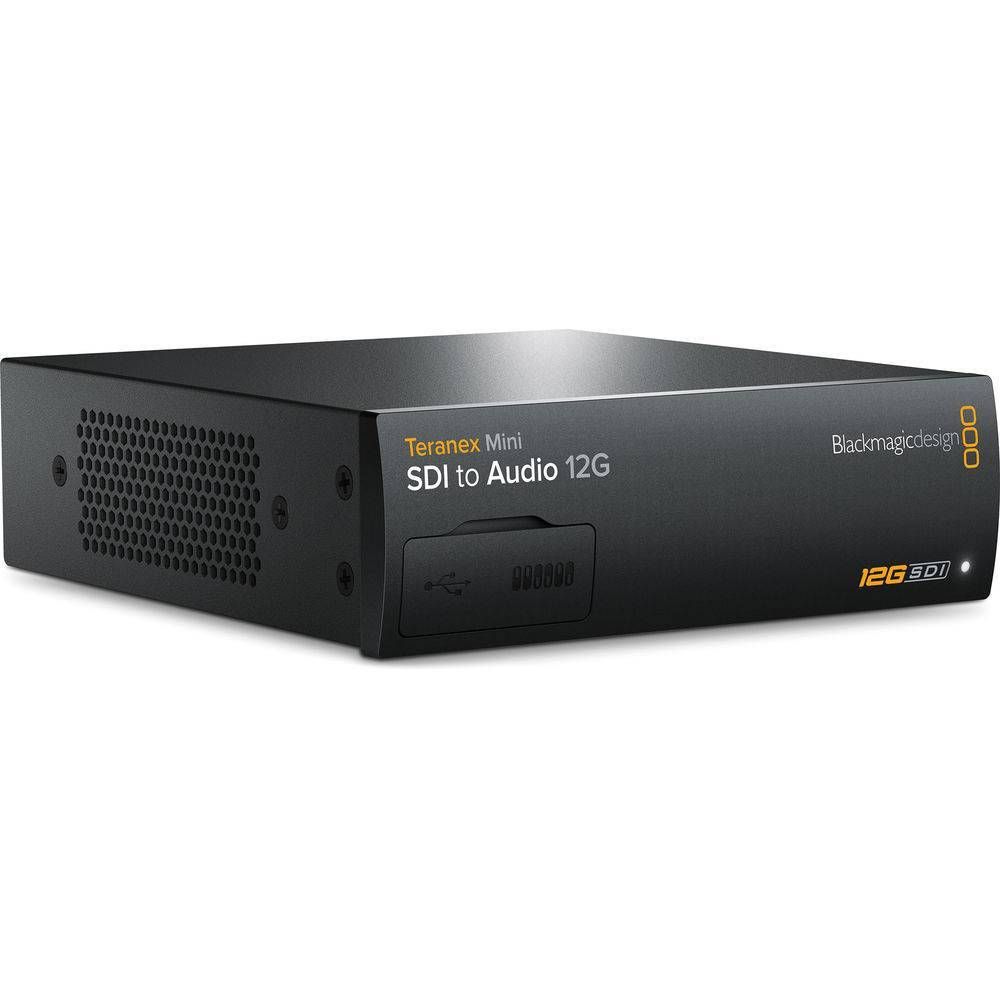

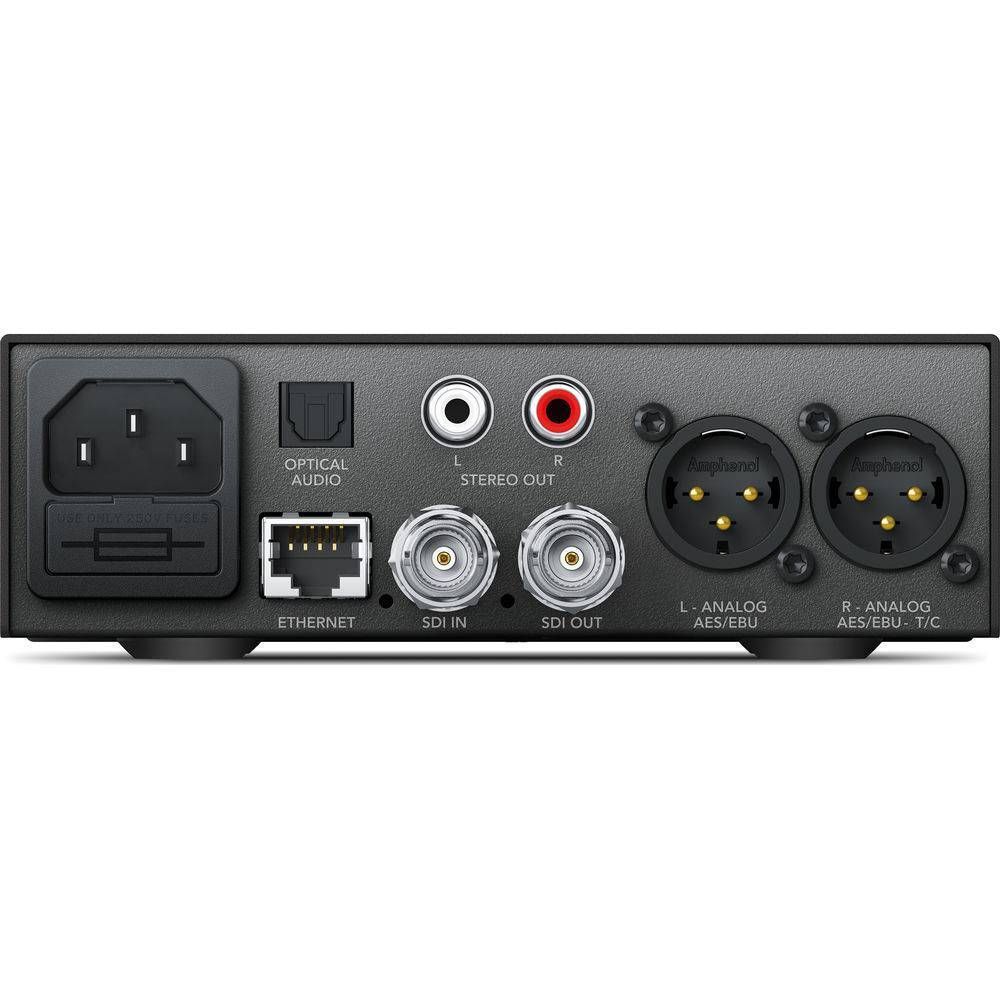

Supporting up to 12G-SDI data rates with intelligent heat dissipation, and offering multiple audio output connections and an Ethernet control and PoE port, the Teranex Mini SDI to Audio 12G Converter, from Blackmagic Design, is a highly improved solution for rack-mount as well as cable duct and desktop installations. Connect any SDI signal in up to Full 4K DCI 4096x2160p resolution via a 12G-SDI input, and de-embed audio from the signal and output it via a diverse set of audio connections. Output two channels of analog audio or up to four channels of AES/EBU digital audio via full-size, professional balanced XLR ports, two channels of unbalanced analog line-level audio via RCA connectors, or optical S/PDIF audio via a TOSLINK output. Connect the audio signal to a wide range of audio equipment, such as mixers, decks, and audio monitors. There's also a 12G-SDI output for routing the original signal. Route 4096x2160p signals approximately 70 ft using 6G-SDI cables, and run lower-resolution signals, such as 3G-SDI or HD-SDI, for much longer than standard lengths. When 12G-SDI cables will be available on the market, you'll be able to run 4096x2160p signals for over 250 ft.
Teranex Mini SDI to Audio 12G Converter Features
General
SDI Video Input | 1x 12G-SDI SD/HD/2K/4K auto switching |
SDI Video Output | 1x 12G-SDI output |
Analog Audio Output | 2 channels professional balanced analog audio via XLR connectors 2-channel unbalanced analog line level via RCA connectors Right XLR can be configured for timecode output |
AES/EBU Audio Output | 4 channels professional 110 ohm balanced digital audio via XLR connectors Right XLR can be configured for timecode output |
Optical Audio Output | S/PDIF signal with TOSLINK connector |
Multi Rate Support | Automatic switching between SD/HD/2K and 4K |
Updates and Configuration | USB or Ethernet |
Re-Clocking | Yes |
SD Format Support | 525/29.97 NTSC, 625/25 PAL |
HD Format Support | 1280 x 720p50, 1280 x 720p59.94, 1280 x 720p60, 1920 x 1080i50, 1920 x 1080i59.94, 1920 x 1080i60, 1920 x 1080PsF23.98, 1920 x 1080PsF24, 1920 x 1080p23.98, 1920 x 1080p24, 1920 x 1080p25, 1920 x 1080p29.97, 1920 x 1080p30, 1920 x 1080p50, 1920 x 1080p59.94, 1920 x 1080p60 |
2K Format Support | 2048 x 1080p23.98, 2048 x 1080p24, 2048 x 1080p25, 2048 x 1080PsF23.98, 2048 x 1080PsF24, 2048 x 1080PsF25 |
4K Format Support | 3840 x 2160p23.98, 3840 x 2160p24, 3840 x 2160p25, 3840 x 2160p29.97, 3840 x 2160p30, 3840 x 2160p50, 3840 x 2160p59.94, 3840 x 2160p60, 4096 x 2160p23.98, 4096 x 2160p24, 4096 x 2160p25, 4096 x 2160p29.97, 4096 x 2160p30, 4096 x 2160p50, 4096 x 2160p59.94, 4096 x 2160p60 |
SDI Compliance | SMPTE 292M, SMPTE 259M, SMPTE 296M, SMPTE 372M, SMPTE424M-B, SMPTE 425M, ITU-R BT.656, ITU-R BT.601, SMPTE ST-2036 |
SDI Video Rates | SDI video connections are auto-switching between SD-SDI, HD-SDI, high definition level B 3G-SDI, 6G-SDI, and 12G-SDI |
SDI Video Sampling | 4:2:2 and 4:4:4 |
SDI Audio Sampling | Television standard sample rate of 48 kHz and 24-bit |
SDI Color Precision | YUV 4:2:2 and RGB 4:4:4 in HD, 2K, and 4K |
SDI Color Space | REC 601, REC 709 |
Software Control | Mac OS X and Windows software upgrade via USB and Ethernet |
Internal Software Upgrade | Via included updater application |
Basic Settings Control | Mini Switches, USB, and Ethernet via free software utility |
Power Supply | 1x built-in international AC power supply with IEC C14 inlet IEC power cable required (not included) 90 - 240 VAC input |
Power Over Ethernet | Can be powered via 48 VDC using PoE (Power-over-Ethernet) |
Power Consumption | 15 W |
Operational Voltage Range | 90 - 240 VAC |
Operating Temperature | 32 to 104°F (0 to 40°C) |
Storage Temperature | -4 to 140°F (-20 to 60°C) |
Relative Humidity | 0 to 90% non-condensing |
Dimensions | W x H x D: 5.5 x 1.8 x 6.7" (14 x 4.6 x 17 cm) (with SDI port included) |
Weight | 1.3 lb (0.6 kg) |
