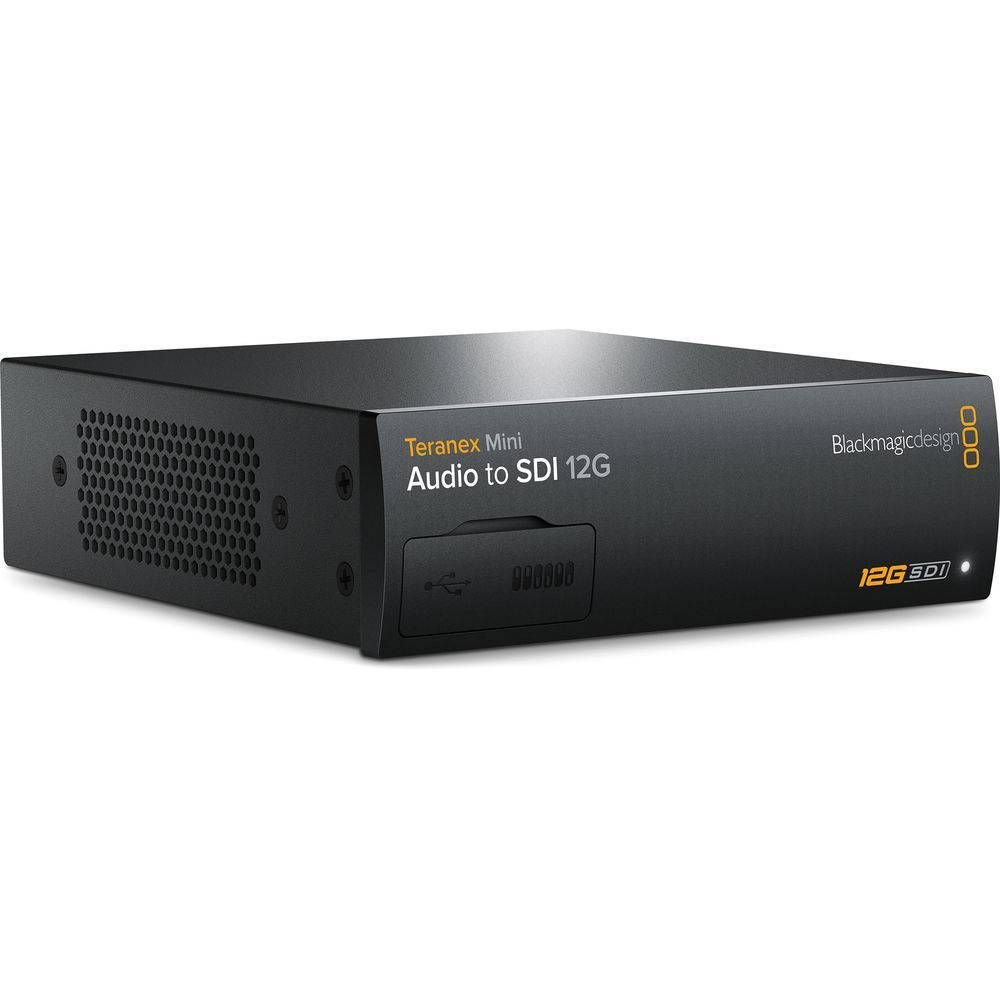

Supporting up to 12G-SDI data rates with intelligent heat dissipation, and offering multiple audio input connections and an Ethernet control and PoE port, the Teranex Mini Audio to SDI 12G Converter, from Blackmagic Design, is a highly improved solution for rack-mount as well as cable duct and desktop installations. Connect any SDI signal in up to Full 4K DCI 4096x2160p resolution via a 12G-SDI input, and embed audio into the signal from a diverse set of audio connections. Embed two channels of analog audio or up to four channels of AES/EBU digital audio via full-size, professional, balanced XLR ports, two channels of unbalanced analog line-level audio via RCA connectors, or optical S/PDIF audio via a TOSLINK input. Then output the combined signal via a 12G-SDI output. Output 4096x2160p signals approximately 70 ft using 6G-SDI cables, and run lower-resolution signals, such as 3G-SDI or HD-SDI, for much longer than standard lengths. When 12G-SDI cables will be available on the market, you'll be able to run 4096x2160p signals for over 250 ft.
Teranex Mini Audio to SDI 12G Converter Features
Inputs / Outputs
Video Inputs | 1 x BNC (12G-SDI) |

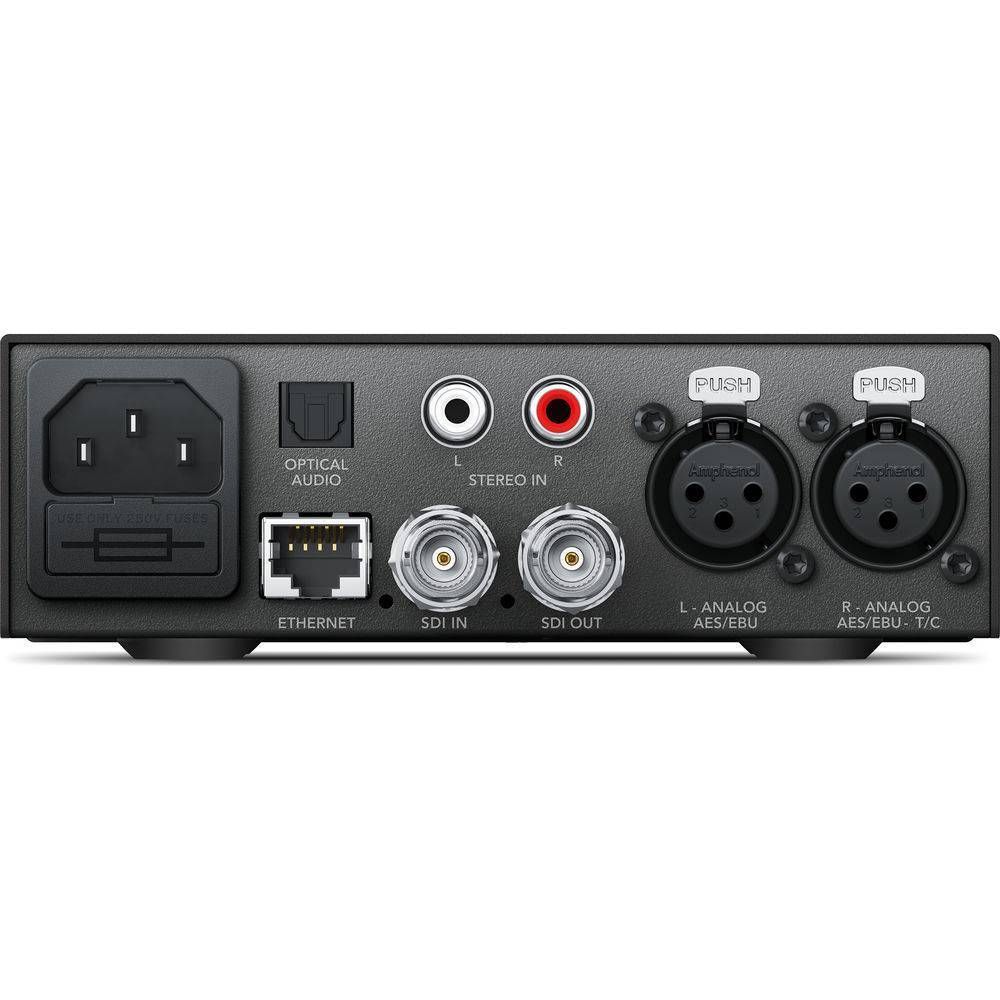

Audio Inputs | 2 x XLR 3-Pin Analog Female 1 x 2RCA Analog Female 1 x TOSLINK S/PDIF Female |
Video Outputs | 1 x BNC (12G-SDI) |
Audio Outputs | None |
Other I/O | 1 x XLR 3-Pin Timecode Input (Shared With Right XLR Input) 1 x RJ45 Control, Firmware, PoE |
Expansion Slots | None |
Format Support
Input Audio Format | Analog S/PDIF AES/EBU |
Output Video Format | SDI DCI 4K 23.98/24/25 fps UHD 4K 23.98/24/25/29.97/30/50/59.94/60 fps DCI 2K 23.98/24/25 fps DCI 2KPsF 23.98/24/25 fps 1080p 23.98/24/25/29.97/30/50/59.94/60 fps 1080PsF 23.98/24/25/29.97/30 fps 1080i 50/59.94/60 fps 720p 50/59.94/60 fps 576i / 625 lines 480i / 525 lines |
Embedded Audio | SDI: 16-Channel |
HDR Compatibility | Not Specified by Manufacturer |
Wi-Fi | None |
OS Compatibility | Windows 10 (64-Bit Only) macOS 10.15 to 11.1 *As of February, 2023: Check with manufacturer for the most up-to-date compatibility |
Power
Power I/O | 1 x IEC C14 (100 to 240 VAC) Input |
PoE Support | PoE+ 802.3at |
Power Consumption | 16 W |
Environmental
Operating Temperature | 32 to 104°F / 0 to 40°C |
Storage Temperature | -4 to 140°F / -20 to 60°C |
Operating Humidity | 0 to 90% (Non-Condensing) |
