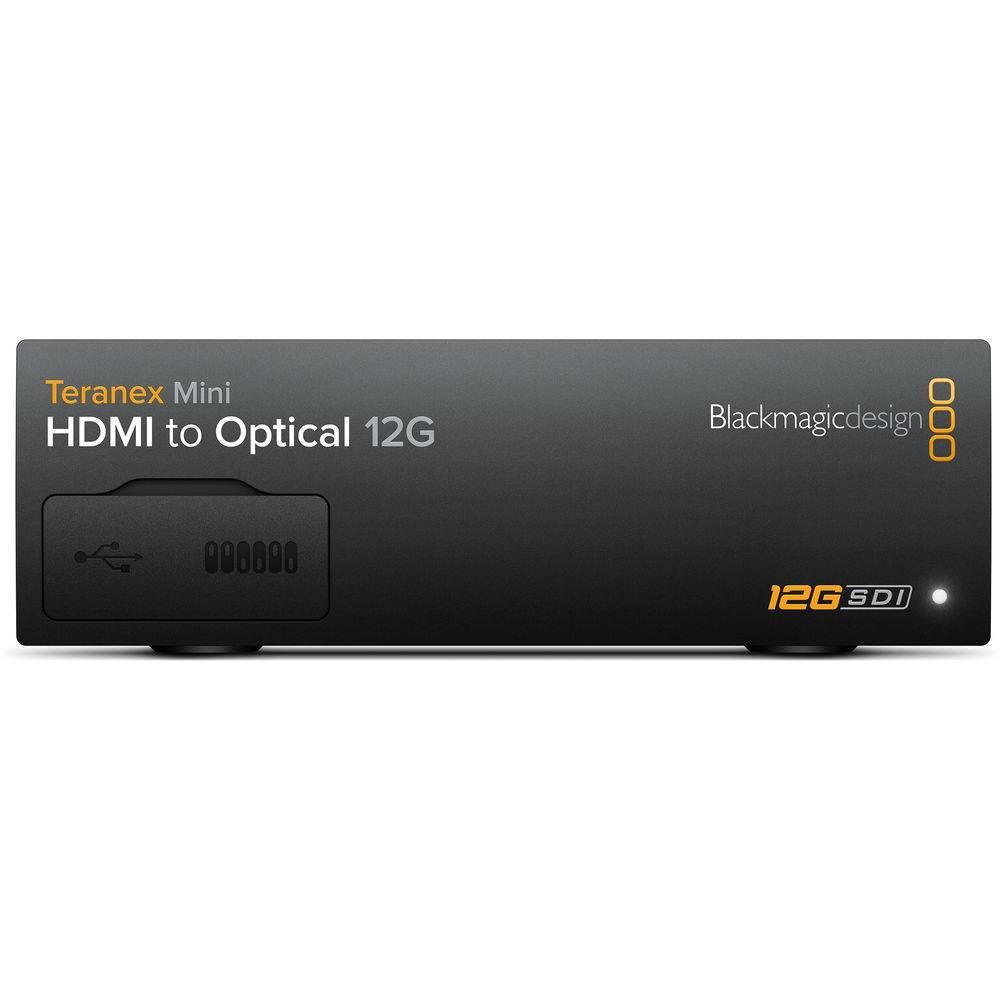

BLACKMAGIC DESIGN TERANEX MINI - HDMI TO OPTICAL 12G
The Teranex Mini HDMI to Optical 12G Converter from Blackmagic Design allows you to convert an HDMI signal to a 12G-SDI output, or install an optional optical fiber module and convert an HDMI signal to fiber. In either case, the output will automatically match the HDMI input resolution. Up to DCI 4K (4096 x 2160), 60p resolution is supported on both input and output.
An optical fiber module is not included but is supported on the rear. 3G and 6G modules are currently available (model #s ADPT-3GBI/OPT and ADPT-6GBI/OPT), and 12G modules are in the works.
Teranex Mini HDMI to Optical 12G Converter Features
- Convert an HDMI Signal to 12G-SDI
- Convert HDMI to Optical Fiber (Optional)
- Up to DCI 4K/60p Support on Input/Output
- XLR Inputs Switchable to AES/EBU
- Ethernet Port for Remote Control or PoE
- Built-In 90-240V Power Supply
- Rack-Mount, Duct or Desktop Installation
- Install up to 3 Units in Single 19" Rack
- Supports Optional LCD Smart Front Panel
- Intelligent Thermal Heat Dissipation
General
| Optical Fiber Support | Supports optional optical fiber module |
| SDI Video Input | 1x SDI on BNC 12G-SDI SD/HD/2K/4K auto switching |
| HDMI Output | 1x HDMI 2.0 type A |
| Analog Audio Output | 2 channels professional balanced analog audio via XLR connectors Right XLR can be configured for timecode output |
| AES/EBU Audio Output | 4 channels professional 110 ohm balanced digital audio via XLR connectors Right XLR can be configured for timecode output |
| Multi Rate Support | Automatic switching between SD, HD, 2K, and 4K |
| Updates and Configuration | USB or Ethernet |
| Re-Clocking | Yes |
| SD Format Support | 525/29.97 NTSC, 625/25 PAL |
| HD Format Support | 1280 x 720p50, 1280 x 720p59.94, 1280 x 720p60, 1920 x 1080i50, 1920 x 1080i59.94, 1920 x 1080i60, 1920 x 1080p23.98, 1920 x 1080p24, 1920 x 1080p25, 1920 x 1080p29.97, 1920 x 1080p30, 1920 x 1080p50, 1920 x 1080p59.94, 1920 x 1080p60 |
| 2K Format Support | 2048 x 1080PsF23.98, 2048 x 1080PsF24, 2048 x 1080PsF25, 2048 x 1080p23.98, 2048 x 1080p24, 2048 x 1080p25 |
| 4K Format Support | 3840 x 2160p23.98, 3840 x 2160p24, 3840 x 2160p25, 3840 x 2160p29.97, 3840 x 2160p30, 3840 x 2160p50, 3840 x 2160p59.94, 3840 x 2160p60, 4096 x 2160p23.98, 4096 x 2160p24, 4096 x 2160p25, 4096 x 2160p29.97, 4096 x 2160p30, 4096 x 2160p50, 4096 x 2160p59.94, 4096 x 2160p60 |
| SDI Compliance | SMPTE 292M, SMPTE 259M, SMPTE 296M, SMPTE 372M, SMPTE 424M-B, SMPTE 425M, SMPTE 297M for Optical Fiber SDI |
| SDI Video Rates | SDI video connections are auto switching between SD-SDI, HD-SDI, high definition level B 3G-SDI, 6G-SDI, and 12G-SDI |
| SDI Video Sampling | 4:2:2 and 4:4:4 |
| SDI Audio Sampling | Television standard sample rate of 48 kHz and 24-bit |
| SDI Color Precision | 4:2:2 and 4:4:4 |
| SDI Color Space | YUV and RGB |
| HDMI Format Support | 525/29.97 NTSC, 625/25 PAL, 1280 x 720p50, 1280 x 720p59.94, 1280 x 720p60, 1920 x 1080i50, 1920 x 1080i59.94, 1920 x 1080i60, 1920 x 1080p23.98, 1920 x 1080p24, 1920 x 1080p25, 1920 x 1080p29.97, 1920 x 1080p30, 1920 x 1080p50, 1920 x 1080p59.94, 1920 x 1080p60, 2048 x 1080p23.98, 2048 x 1080p24, 2048 x 1080p25, 3840 x 2160p23.98, 3840 x 2160p24, 3840 x 2160p25, 3840 x 2160p29.97, 3840 x 2160p30, 3840 x 2160p50, 3840 x 2160p59.94, 3840 x 2160p60, 4096 x 2160p23.98, 4096 x 2160p24, 4096 x 2160p25, 4096 x 2160p29.97, 4096 x 2160p30, 4096 x 2160p50, 4096 x 2160p59.94, 4096 x 2160p60 |
| HDMI Color Space | REC 601, REC 709 |
| HDMI Color Precision | YUV 4:2:2 and RGB 4:4:4 in HD, 2K, and 4K |
| Software Control | Mac OS X and Windows software upgrade via USB and Ethernet |
| Internal Software Upgrade | Via included updater application |
| Basic Settings Control | Mini Switches, USB, and Ethernet via free software utility |
| Power Supply | 1x built-in international AC power supply with IEC C14 inlet IEC power cable required (not included) 90 - 240 VAC input |
| Power Over Ethernet | Can be powered via 48 VDC using PoE (Power-over-Ethernet) |
| Power Consumption | 15 W |
| Operational Voltage Range | 90 - 240 VAC |
| Operating Temperature | 32 to 104°F (0 to 40°C) |
| Storage Temperature | -4 to 140°F (-20 to 60°C) |
| Relative Humidity | 0 to 90% non-condensing |
| Dimensions | W x H x D: 5.5 x 1.8 x 6.7" (14 x 4.6 x 17 cm) (with SDI port included) |
| Weight | 1.3 lb (0.6 kg) |
