BLACKMAGIC DESIGN TERANEX MINI IP VIDEO 12G
SKU
BMD-CONVNTRM/OB/IPV
$545.00
Availability:
In stock

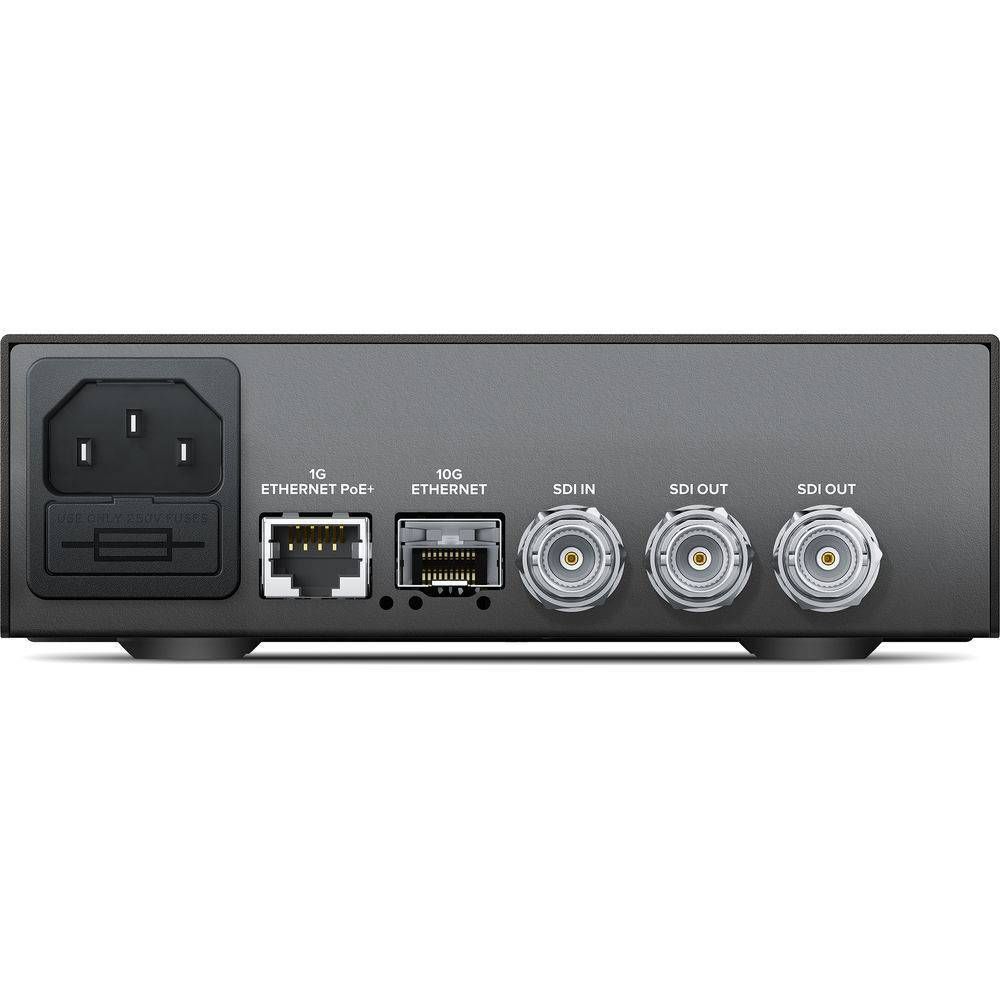

BLACKMAGIC DESIGN TERANEX MINI IP VIDEO 12G
Supporting up to 12G-SDI data rates, the Teranex Mini IP Video 12G from Blackmagic Design is a 12G-SDI/Ethernet encoder/decoder that supports TICO encoding for high-quaity video over Ethernet transmission. The compact size of the Teranex Mini makes it very useful for portable racks at live events or in broadcast trucks. One unit is required at each end—multiple units can be used on the same network—controlled by a Mac or Windows computer using the included Blackmagic Video Hub software.
Design Teranex Mini IP Video 12G Features
- Advanced High-Data Rate Signal Converter
- TICO Encoder / Decoder
- Supports up to 4K DCI 4096x2160p Signals
- Two Independent 12G-SDI 10-Bit Outputs
- Gigabit Ethernet for up to 1080p60
- Optional 10G Optical Ethernet Support
- Supports Optional LCD Smart Front Panel
- Intelligent Thermal Heat Dissipation
- Manage Numerous Units from a Mac or PC
General
| Video Inputs | 1 x BNC (12G-SDI) |
| Video Outputs | 2 x BNC (12G-SDI) |
| Other I/O | 1 x RJ45 Input/Output |
| Expansion Slots | 1 x SFP Slot |
| Input Video Format | SDI (10-Bit 4:4:4/4:2:2 RGB, YUV) DCI 4K at 23.98/24/25 fps UHD 4K 23.98/24/25/29.97/30/50/59.94/60 fps DCI 2K 23.98/24/25 fps DCI 2KPsF 23.98/24/25 fps 1080p 23.98/24/25/29.97/30/50/59.94/60 fps 1080PsF 23.98/24 fps 1080i 50/59.94/60 fps 720p 50/59.94/60 fps |
| Output Video Format | SDI (10-Bit 4:4:4/4:2:2 YUV) DCI 4K at 23.98/24/25 fps UHD 4K 23.98/24/25/29.97/30/50/59.94/60 fps DCI 2K 23.98/24/25 fps DCI 2KPsF 23.98/24/25 fps 1080p 23.98/24/25/29.97/30/50/59.94/60 fps 1080PsF 23.98/24 fps 1080i 50/59.94/60 fps 720p 50/59.94/60 fps |
| Embedded Audio | SDI/LAN (RJ45) |
| Video Standard Compliance | SMPTE 259M/292M/296M/310M/425M ITU -R BT.601/BT.656 |
IP Streaming
| Video IP Encoding | TICO: 4096 x 2160 |
| Video IP Decoding | TICO: 4096 x 2160 |
Hardware
| Media Card Reader | 1 x SD (Unspecified Type) |
| Wi-Fi | Yes |
| OS Compatibility | macOS Windows *As of August 2019: Check with the manufacturer for the most up-to-date compatibility |
Power
| Power I/O | 1 x RJ45 (48 VDC) Input 1 x IEC C14 Input |
| Power Consumption | Device: 90 to 240 VAC (16 W) |
Environmental
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Storage Temperature | -20 to 140°F / -28 to 60°C |
| Operating Humidity | 0 to 90% |
