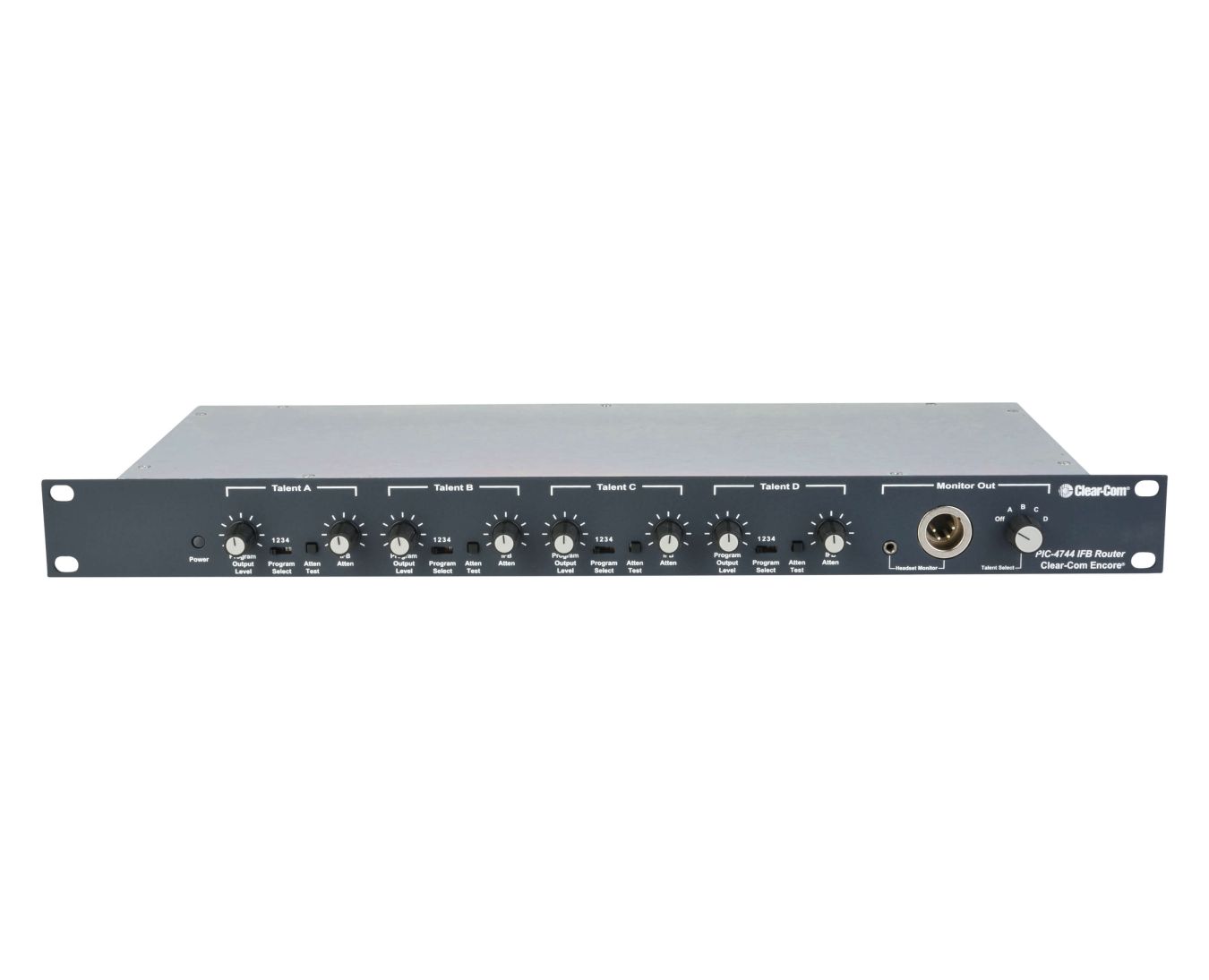

CLEAR COM PIC-4744 ENCORE IFB CONTROLLER: 4CH, 1RU WITH (4) PROGRAM AUDIO, (4) OUTPUTS 0525
Clear-Com's PIC-4744 is an analog partyline controller that provides four XLR3M analog partyline level audio outputs (Talent channels) and four XLR3F analog line level audio inputs (Program channels). Each Talent channel can select and place one of the four program sources to the output. A front panel variable trim pot is supplied for adjusting the source level to the output.
Connections to control stations, typically used for a director to cue talent, are provided for interrupting the source input to the audio output. The PIC-4744 can interrupt the program source with variable attenuation. Each Talent channel carries a composite of three signals; the program audio, the cue audio and the dip or mute control. Plus, multiple PIC-4744 panels can be used together if more than four audio outputs are needed.
Features:
- Four separate Program channels and Talent channels
- Wet/Dry switch to access 3rd party wireless IFB, console input, recording devices, etc.
- Program attenuation individually adjustable for each talent output
- Tally lights indicate IFB channels in use
- All IFB button simultaneously access all IFB channels
- Powered by the intercom line
Specifications:
| Program Line Input | |
| Max Level Before Clipping | ≥ 20 dBu |
| Input Impedance | < 10 kΩ |
| Audio | |
| Output Level for Talent | Clear-Com Partyline Level (approx. -10 dBu) |
| Program Source Adjustable Range | +20 dBu |
| Attenuation Adjustable Range | 50 dBu |
| Frequency Response | |
| Panel Input – Talent | 200 – 18 kHz +3 dB |
| Maximum Distortion | |
| Program Input – Talent | ≤ 0.1% |
| Noise | |
| Program Input – Talent | < -85 dBu |
| Power Requirements | |
| Input Voltage Range | 20 – 30 V DC |
| Input Current | ≤ 90 mA |
| Rear Panel Connectors | |
| IFB Inputs | (2) XLR6F – Switchcraft pin layout* |
| Power Loop Through | (1) XLR3M, (1) XLR3F |
| Talent Output | (4) XLR3M |
| Program Input | (4) XLR3F |
| Wet/Dry Switch | (4) |
| Front Panel | |
| Indicators | (1) Power LED |
| Controls | (4) Program Output Level Controls(4) Program Select Switches(4) Attenuation Test Buttons(4) Attenuation Level Controls(1) Monitor Select Switch |
| Monitor Ports | (2) Headset Monitor Ports (3.5mm and XLR) |
| Environmental | 32° – 122°F (0° – 50°C) |
| Dimensions | 19 x 1.75 x 7.5 in (W x H x D) / 483 x 44 x 190 mm |
| Weight | 5.76 lbs (2.6 kg) |
