CLEAR-COM RM-704 ENCORE REMOTE STATION : 4 CH, 1RU WITH STAGE ANNOUNCE, 5 PROGRAM AUDIO HOT-MIC 0525
SKU
CLE-RM-704
MFR#
RM-704
$2,235.00
Availability:
Out of stock
CLEAR-COM RM-704 ENCORE REMOTE STATION : 4 CH, 1RU WITH STAGE ANNOUNCE, 5 PROGRAM AUDIO HOT-MIC 0525

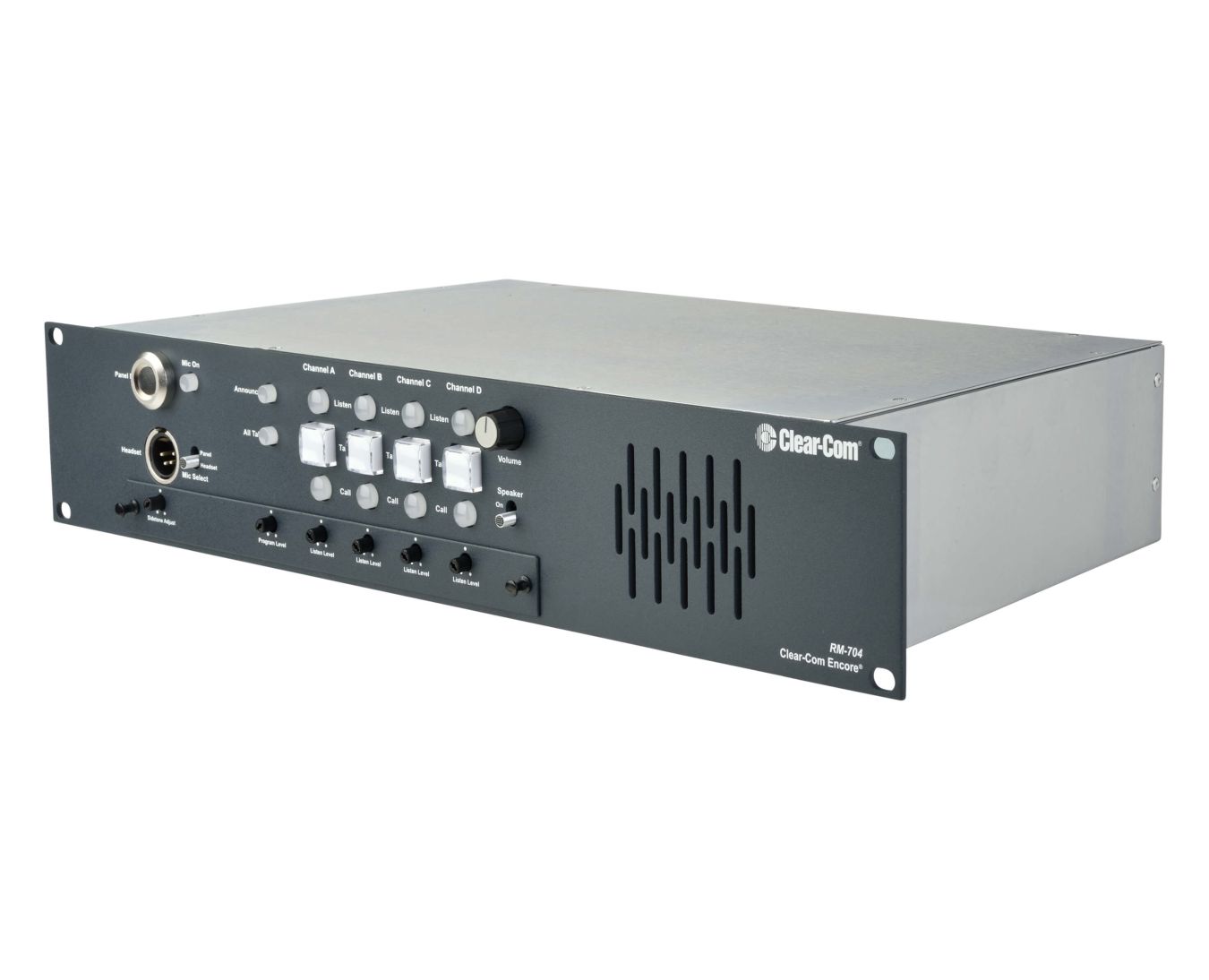

The ClearCom Encore RM-704 is a 2RU four-channel intercom remote station with programmable front panel buttons and individual channel volume control. The RM-704 is powered directly from the intercom line and requires no external AC power. Encore™ is a 2-wire analog partyline system with intuitive plug-and-play design and superior "Clear-Com Sound" audio quality. The RM-704 is powered directly from the intercom line and requires no external AC power.
The RM-704 can monitor intercom activity on one or all channels with individual volume level controls. Monitoring intercom activity is possible through a headset or the internal high sensitivity loudspeaker. The RM-704 has mic pre-amps with limiters and individual electronic momentary/latching Talk button on each channel. The channels can be accessed separately or simultaneously without tying them together. A selector switch toggles between the headset or microphone.
Features:
- Four-channel remote station
- Dual-action electronic momentary/latching Talk buttons
- Individual listen volume controls
- Balanced audio input with program interrupt (IFB)
- Call signal buttons for each channel
- Microphone limiting
- Volume controls for each channel
- Visual and audible Tone Alert signaling
- Hot mic and line-level outputs
- Built-in speaker
- External switchable line termination on each channel
Specifications:
| Panel Microphone Input | |
| Input Type | Electret |
| Input Impedance | ≥ 2 kΩ |
| Mic Limiter Threshold | 0 dBu ± 3 dB |
| Mic Limiter Range | ≥ 17 dB |
| Program Line Input | |
| Max Level Before Clipping | ≥ 20 dBu |
| Input Impedance | ≥ 5 kΩ |
| Headset Output | |
| Load Impedance | ≥ 8 Ω |
| Output Impedance | ≤ 25 Ω |
| Output Limiter Threshold | +5 dBu ± 3 dB |
| Max Output Level | ≥ 17 dBu |
| Speaker Output | |
| Load Impedance | ≥ 4 Ω |
| Max Output Level | 20 dBu ± 2 dBu |
| Partyline Output | |
| Output Noise | < -74 dBu |
| Output Impedance | > 10 kΩ |
| Partyline Input | |
| Crosstalk | < -60 dB |
| Max Level Before Clipping | ≥ 12 dBu |
| Sidetone Null Capability | > 25 dB |
| Stage Announce / Line Out | |
| Type | Balanced |
| Output Impedance | ≥ 200 Ω |
| Load Impedance | ≥ 600 Ω |
| IFB / Hot Mic Output | |
| Type | Unbalanced |
| Output Impedance | 150 Ω |
| Load Impedance | ≥ 600 Ω |
| Frequency Response | |
| Panel Mic – Partyline | 600 – 10 kHz ± 3 dB |
| Headset Mic – Partyline | 200 – 12 kHz ± 3 dB |
| Headset Mic – Line Out | 200 – 12 kHz ± 3 dB |
| Program Input – Partyline | 100 – 17 kHz ± 3 dB |
| Program Input – Headset Out | 200 – 10 kHz ± 3 dB |
| Program Input – Speaker Out | 300 – 10 kHz ± 3 dB |
| Partyline – Headset Out | 200 – 10 kHz ± 3 dB |
| Partyline – Speaker Out | 300 – 10 kHz ± 3 dB |
| Maximum Distortion | |
| Panel Mic – Partyline | ≤ 0.5% |
| Headset Mic – Partyline | ≤ 0.5% |
| Headset Mic – Line Out | ≤ 0.5% |
| Program Input – Partyline | ≤ 0.2% |
| Program Input – Headset Out | ≤ 0.2% |
| Program Input – Speaker Out | ≤ 0.5% |
| Partyline – Headset Out | ≤ 0.2% |
| Partyline – Speaker Out | ≤ 0.5% |
| Noise | |
| Panel Mic – Partyline | < -65 dBu |
| Headset Mic – Partyline | < -70 dBu |
| Headset Mic – Line Out | < -55 dBu |
| Program Input – Partyline | < -85 dBu |
| Program Input – Headset Out | < -60 dBu |
| Program Input – Speaker Out | < -60 dBu |
| Partyline – Headset Out | < -50 dBu |
| Partyline – Speaker Out | < -50 dBu |
| Maximum Gain | |
| Panel Mic – Partyline | ≥ 37 dB |
| Headset Mic – Partyline | 41 dB ± 2 dB |
| Headset Mic – Hot Mic Out | 55 dB ± 3 dB |
| Headset Mic – Announce Out | 55 dB ± 3 dB |
| Program Input – Partyline | ≥ -16 dB |
| Program Input – Headset Out | ≥ 18 dB |
| Program Input – Speaker Out | ≥ 24 dB |
| Partyline – Headset Out | ≥ 34 dB |
| Partyline – Speaker Out | ≥ 40 dB |
| Minimum Gain | Panel Mic – Partyline: ≤ 25 dB |
| Power Requirements | |
| Input Voltage Range | 20 – 30 V DC |
| Input Current (Idle) | ≤ 165 mA |
| Input Current (Max) | ≤ 195 mA |
| Environmental | 32° – 122°F (0° – 50°C) |
| Dimensions | 19 x 3.5 x 10.5 in (W x H x D) / 483 x 88 x 267 mm |
| Weight | 10.9 lbs (4.9 kg) |
