CLEAR-COM RM-702 ENCORE REMOTE STATION : 2CH, 1RU WITH STAGE ANNOUNCE, PROGRAM AUDIO HOT-MIC 0525
SKU
CLE-RM-702
MFR#
RM-702
$1,775.00
Availability:
Out of stock
CLEAR-COM RM-702 ENCORE REMOTE STATION : 2CH, 1RU WITH STAGE ANNOUNCE, PROGRAM AUDIO HOT-MIC 0525

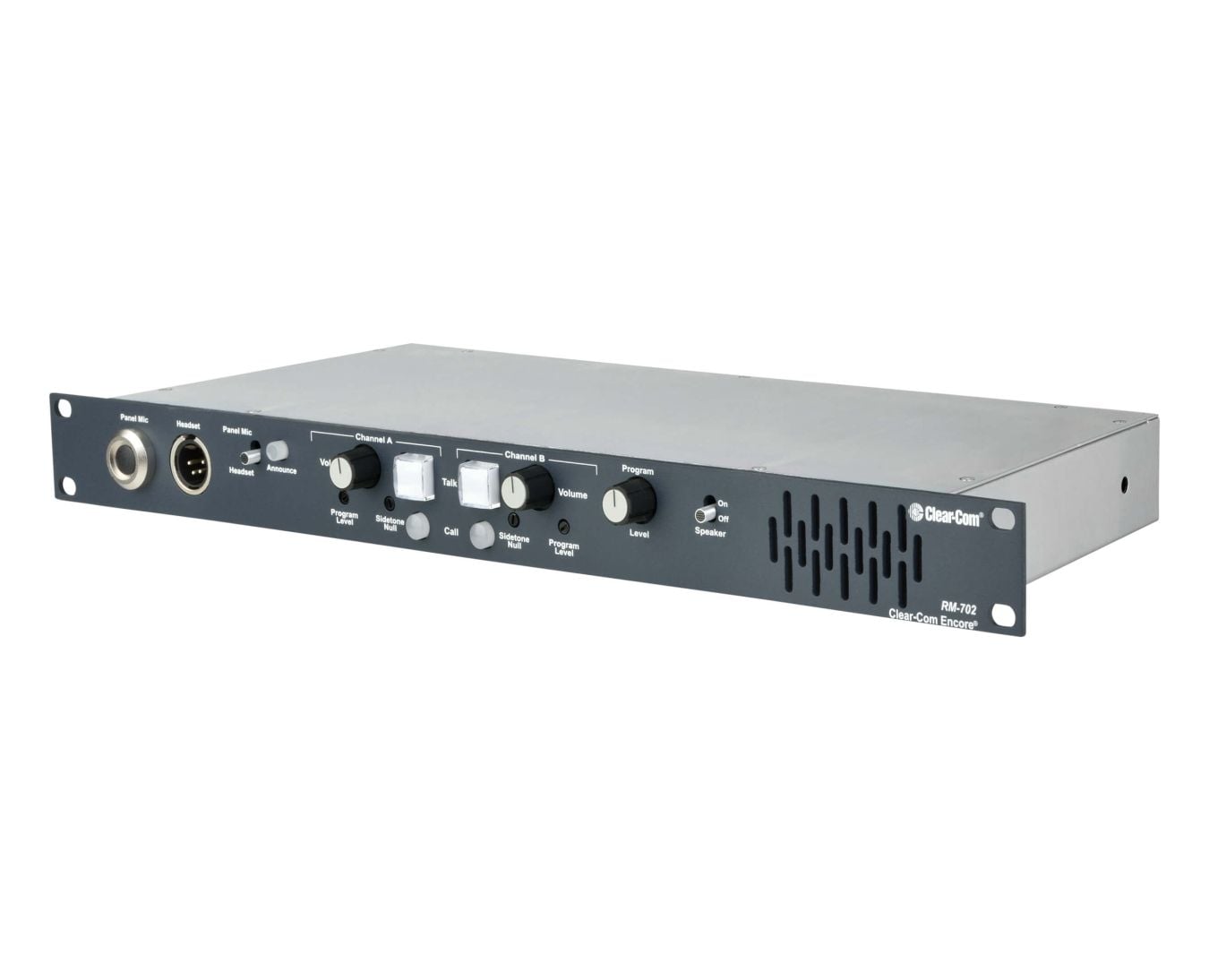

The Clearcom RM-702 is a 1RU two-channel remote station with programmable front panel buttons and individual channel volume control designed as part of the Encore Analog Partyline Intercom System. The RM-702 is powered directly from the intercom line and requires no external AC power.
Easy to install and connect over standard, two-conductor shielded mic cable. Clear-Com Encore systems have front-panel key controls or ergonomically-designed beltpacks for intuitive operations - even by the novice user.
Clear-Com Encore provides you with fast, simple and instant access to the person or persons you need to speak to the most on any given intercom channel. Unlike other communication options, this full-duplex platform allows people (on their independent user devices) on the same channel to carry out bi-directional, conversational-style communication, without being concerned with the quality of the connection or sound. The system can scale over standard mic cable or over IP interfaces.
Features:
- 2-Channel 1RU Remote Station with built-in Speaker
- Selectable one- or two-channel communication
- Momentary/Latching talk buttons
- Individual call buttons
- Visual and audible call signaling
- Balanced audio input with program interrupt (IFB)
- Hot mic and line-level outputs
- Stage announce output with relay
- Built-in speaker
Specifications:
| Panel Microphone Input | |
| Input Type | Electret |
| Input Impedance | ≥ 2 kΩ |
| Mic Limiter Threshold | 0 dBu ± 3 dB |
| Mic Limiter Range | ≥ 20 dB |
| Headset Microphone Input | |
| Input Type | Dynamic |
| Input Impedance | ≥ 1 kΩ |
| Mic Limiter Threshold | 0 dBu ± 3 dB |
| Mic Limiter Range | ≥ 15 dB |
| Program Line Input | |
| Max Level Before Clipping | ≥ 20 dBu |
| Input Impedance | ≥ 5 kΩ |
| Headset Output | |
| Load Impedance | ≥ 8 Ω |
| Output Impedance | ≤ 25 Ω |
| Output Limiter Threshold | +5 dBu ± 3 dB |
| Max Output Level Before Distortion | ≥ 17 dBu |
| Speaker Output | |
| Load Impedance | ≥ 4 Ω |
| Max Output Level Before 1% Distortion | 20 dBu ± 2 dBu |
| Partyline Output | |
| Output Noise | < -74 dBu |
| Output Impedance | > 10 kΩ |
| Partyline Input | |
| Crosstalk | < -60 dB |
| Max Level Before Clipping | ≥ 12 dBu |
| Sidetone Null Capability | > 25 dB |
| Stage Announce / Line Out | |
| Type | Balanced |
| Output Impedance | ≥ 200 Ω |
| Load Impedance | ≥ 600 Ω |
| IFB / Hot Mic Output | |
| Type | Unbalanced |
| Output Impedance | 180 Ω |
| Load Impedance | ≥ 600 Ω |
| Frequency Response | |
| Panel Mic – Partyline | 600 – 10 kHz ± 3 dB |
| Headset Mic – Partyline | 200 – 12 kHz ± 3 dB |
| Headset Mic – Line Out | 200 – 12 kHz ± 3 dB |
| Program Input – Partyline | 100 – 17 kHz ± 3 dB |
| Program Input – Headset Out | 200 – 10 kHz ± 3 dB |
| Program Input – Speaker Out | 300 – 10 kHz ± 3 dB |
| Partyline – Headset Out | 200 – 10 kHz ± 3 dB |
| Partyline – Speaker Out | 300 – 10 kHz ± 3 dB |
| Maximum Distortion | |
| Panel Mic – Partyline | ≤ 0.5% |
| Headset Mic – Partyline | ≤ 0.5% |
| Headset Mic – Line Out | ≤ 0.5% |
| Program Input – Partyline | ≤ 0.2% |
| Program Input – Headset Out | ≤ 0.2% |
| Program Input – Speaker Out | ≤ 0.5% |
| Partyline – Headset Out | ≤ 0.2% |
| Partyline – Speaker Out | ≤ 0.5% |
| Noise | |
| Panel Mic – Partyline | < -65 dBu |
| Headset Mic – Partyline | < -70 dBu |
| Headset Mic – Line Out | < -55 dBu |
| Program Input – Partyline | < -85 dBu |
| Program Input – Headset Out | < -60 dBu |
| Program Input – Speaker Out | < -60 dBu |
| Partyline – Headset Out | < -50 dBu |
| Partyline – Speaker Out | < -50 dBu |
| Maximum Gain | |
| Panel Mic – Partyline | ≥ 37 dB |
| Headset Mic – Partyline | 41 dB ± 2 dB |
| Headset Mic – Hot Mic Out | 55 dB ± 3 dB |
| Headset Mic – Announce Out | 55 dB ± 3 dB |
| Program Input – Partyline | ≥ -16 dB |
| Program Input – Headset Out | ≥ 18 dB |
| Program Input – Speaker Out | ≥ 24 dB |
| Partyline – Headset Out | ≥ 34 dB |
| Partyline – Speaker Out | ≥ 40 dB |
| Minimum Gain | Panel Mic – Partyline: ≤ 25 dB |
| Power Requirements | |
| Input Voltage Range | 20 – 30 V DC |
| Input Current (Idle) | ≤ 90 mA |
| Input Current (Max) | ≤ 110 mA |
| Environmental | 32° – 122°F (0° – 50°C) |
| Dimensions | 1.75 x 19 x 7.0 in (H x W x D) / 44 x 483 x 178 mm |
| Weight | 5.2 lbs (2.4 kg) |
