CLEAR-COM U-BOX-X3 ENCORE SURFACE MOUNT: 1 CH, DESK/WALL FOR KB SPEAKER STATIONS 0525
SKU
CLE-U-BOX-X3
MFR#
U-BOX-X3
$345.00
Availability:
Out of stock
CLEAR-COM U-BOX-X3 ENCORE SURFACE MOUNT: 1 CH, DESK/WALL FOR KB SPEAKER STATIONS 0525

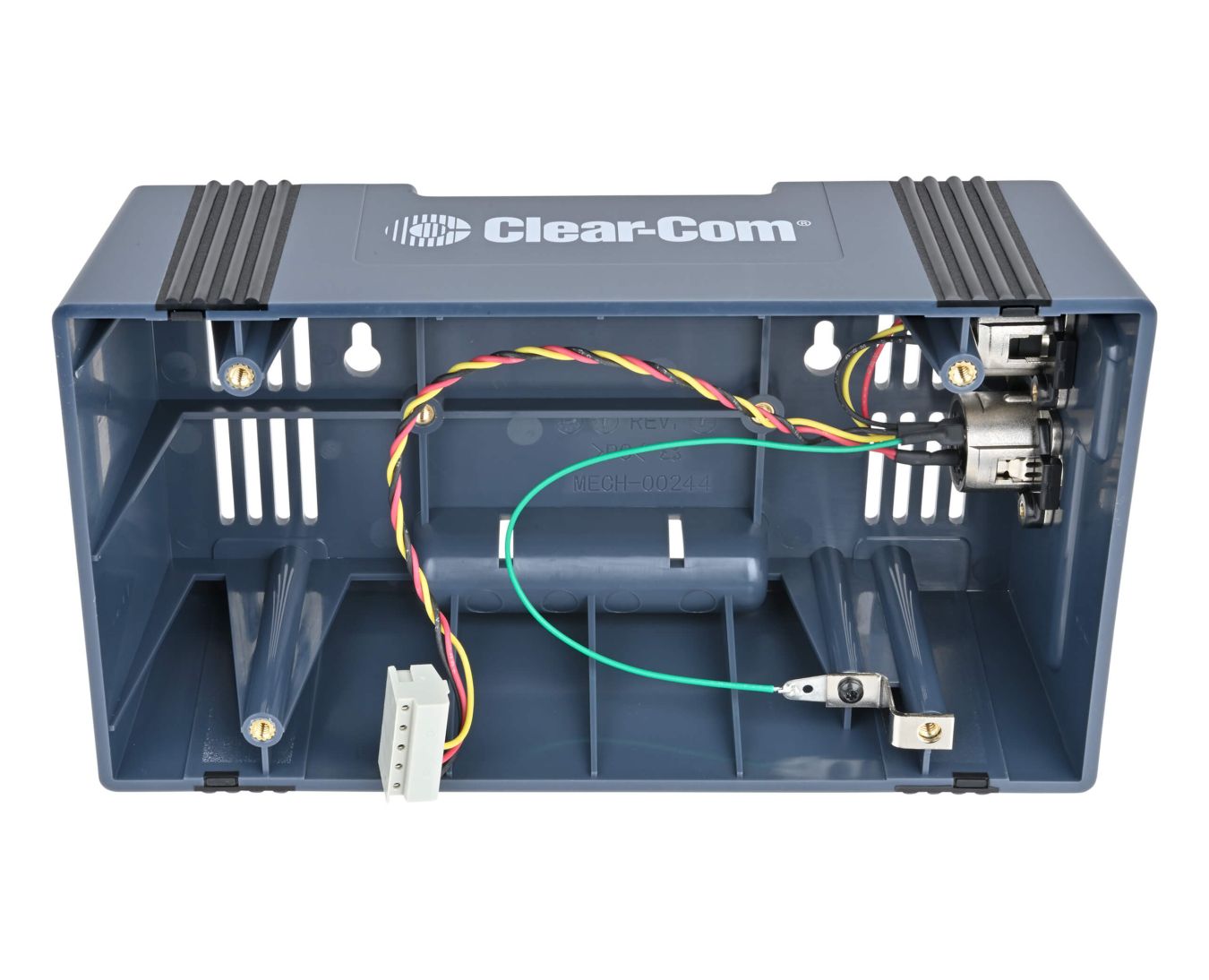

The Clear-Com U-Box is a heavy-duty enclosure to convert any Clear-Com KB 4-Gang sized speaker station into a desktop, shelf, or wall-mounted unit for portable or permanent installation.
Features:
- Enclosure for KB speaker station
- Permanently installed or portable
- Integrated handles
- Vertical or angled KB installation
- Desktop or wall mount
- VESA 75 mounting option
- Rugged enclosure
- Available wired for single or dual-channel partyline and 4-wire
Specifications:
| Connectors | |
| U-Box-X3 XLR Partyline | 3-pin XLR-M/F |
| U-Box-X6 XLR Partyline | "Switchcraft-style" 6-pin XLR-M/F |
| U-Box-RJ45 Four-Wire | etherCON RJ45 |
| Input Power Connector | DC 2.1 mm Co-axial |
| Environmental | |
| Operating Temperature Range | 32° – 158°F (0° – 70°C) |
| Mounting | |
| U-Box Keyholes Center-to-Center | 4.0 in (101.6 mm) |
| Keyhole Diameter | 0.318 – 0.159 in (8.08 – 4.04 mm) |
| VESA Sockets Center-to-Center | 2.95 in (75 mm) |
| VESA Thread Type | M4x10 |
| Mounting Bracket Keyholes Center-to-Center | 5.9 in (149.9 mm) |
| Dimensions | |
| U-Box | 4.5 x 8.2 x 2.8 in (HxWxD)113.79 x 208.79 x 70.23 mm |
| U-Box in Mounting Bracket | 5.4 x 8.3 x 6.1 in (HxWxD)136.19 x 209.55 x 154.37 mm |
| Weight | |
| U-Box | 0.71 lbs (0.32 kg) |
