HOLLYLAND MARS 4K SDI/HDMI WIRELESS VIDEO TRANSMISSION SYSTEM
SKU
HOL-MARS-4K
MFR#
HL-MARS-4K
$649.00
Availability:
Out of stock

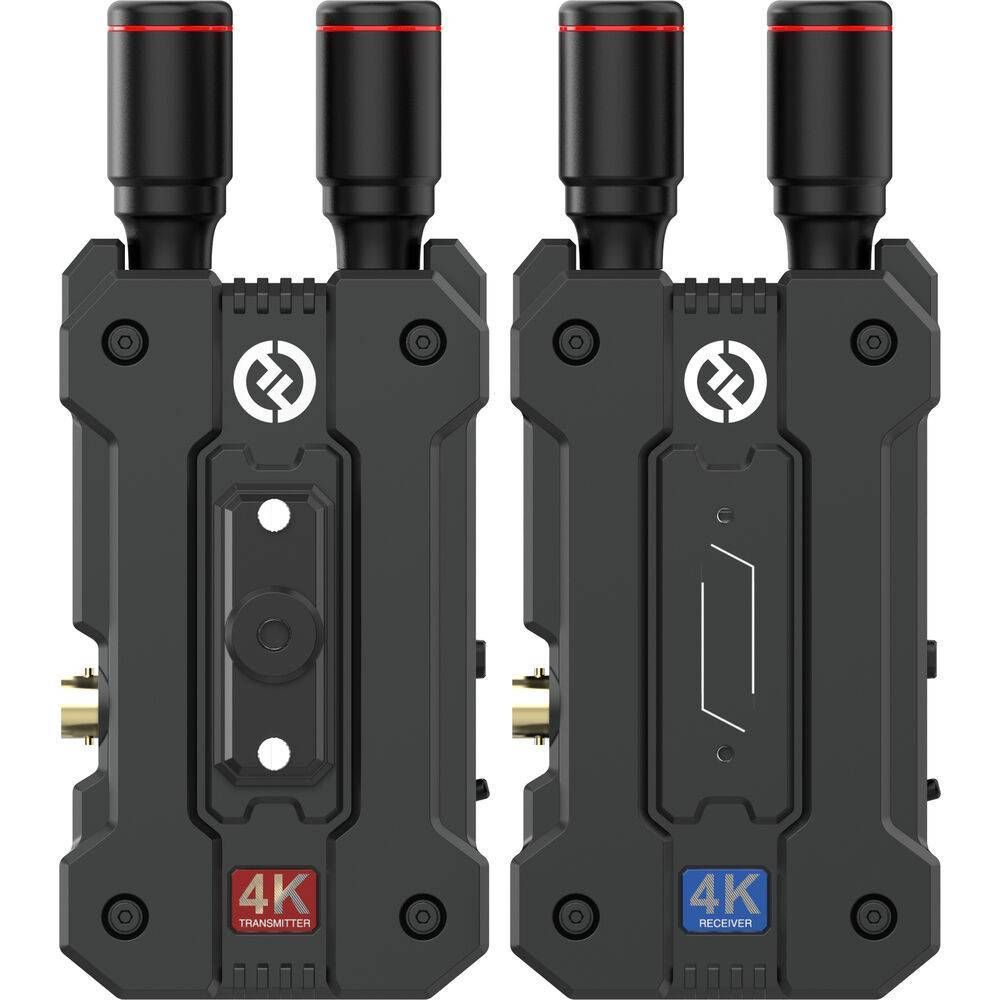

HOLLYLAND MARS 4K SDI/HDMI WIRELESS VIDEO TRANSMISSION SYSTEM
Add up to 4K30 wireless video transmission to your gimbal, mirrorless, or DSLR camera rig using the lightweight Mars 4K Wireless Video Transmission System from Hollyland. The transmitter provides HDMI and SDI inputs and the receiver offers SDI and HDMI outputs. It features extremely low 0.06s latency with line-of-sight transmission up to 450' to the receiver. Using the Hollyview app for iOS or Android, you can monitor your video transmission in real time via a Wi-Fi connection to your tablet or smartphone. The units also feature a built-in frequency scanner to select the clearest frequency for your transmission. The Mars 4K transmitter and receiver are compact in size, feature a bright touchscreen LCD display for configuration, and are built with a corrosion-resistant housing.
Key Features
- Multi-Cam Transmitter and Control System
- 1080p60 Transmitter/Receiver 1800' Range
- 4 x Transmitters to 1 x Receiver
- SDI/HDMI Input and Output
- Ethernet Pass-Through for RTSP Streaming
- 0.07 Second Latency
- IP/RS-422/485 PTZ Camera Control
- Supports Tally and Tally Lights
- Built-In Battery Plates
Specs
| Antenna I/O |
Transmitter/Receiver: 4 x RP-SMA Female
|
| Video I/O |
Transmitter: 1 x HDMI Input
Transmitter: 1 x BNC Input Receiver: 4 x HDMI Output Receiver: 4 x BNC Output |
| HDCP Support |
Not Specified by Manufacturer
|
| Embedded Audio |
SDI
HDMI |
| Audio I/O |
No
|
| Power |
Transmitter/Receiver: 1 x (Unspecified Type) 2-Pin (36 VDC) Input
|
| Other I/O |
Transmitter: 1 x USB-C Input
Receiver: 1 x USB-A Input Transmitter/Receiver: 1 x RJ45 (LAN) Input/Output Transmitter/Receiver: 1 x Proprietary (RS-422/RS-485) Input/Output |
| Wireless Range |
1800' / 548.64 m (Line-of-Sight)
|
| Channel Bandwidth |
40 MHz
|
| Frequency Range |
US: 5.1 to 5.9 GHz
|
| Latency |
< 0.07 sec
|
| RF Power |
≤ 22 dBm
|
| RF Sensitivity |
-90 dBm
|
| Wi-Fi |
Yes
|
| Bluetooth |
No
|
| Video Format |
HDMI
1080p: 60/50/30/25/24 1080i: 60/50 720p: 60/50 576p: 50 480p: 60 SDI 1080p: 60/50/30/25/24 1080i: 60/50 720p: 60/50 576p: 50 480p: 60 |
| Audio Format |
Not Specified by Manufacturer
|
| Timecode Support |
Yes
|
| DC Input Power |
36 VDC
|
| Battery Type |
Transmitter: 1 x L-Series
Receiver: 1 x V-Mount |
| Power Consumption |
Transmitter: 12 W
Receiver: 32 W |
| Mounting |
1 x 1/4"-20 Female
1 x 3/8"-16 Female |
| Material of Construction |
Metal
|
| Dimensions |
Transmitter: 5.7 x 3.5 x 1.2" / 144 x 88 x 30 mm
Receiver: 9.5 x 5.8 x 2.4" / 242 x 148 x 62 mm |
| Weight |
Transmitter: 15.2 oz / 431.5 g, Including Antenna, Battery Plate
Receiver: 3.6 lb / 1621 g, Including Antenna, Battery Plate |
