HOLLYLAND MARS 4K-TRANSMITER TX SDI/HDMI WIRELESS VIDEO TRANSMISSION SYSTEM
SKU
HOL-MARS-4K-TX
MFR#
HL-MARS-4K-TRANSMITER
$349.00
Availability:
Out of stock

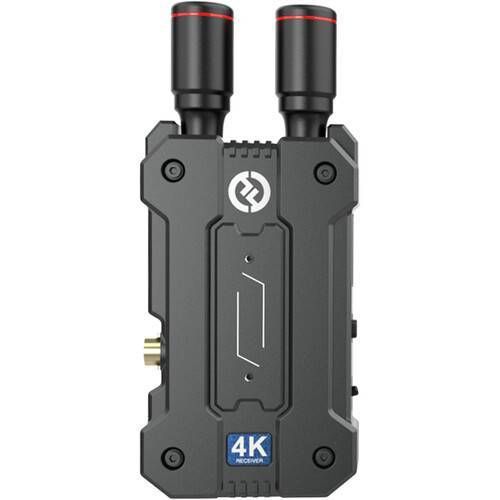

HOLLYLAND MARS 4K-TRANSMITER TX SDI/HDMI WIRELESS VIDEO TRANSMISSION SYSTEM
Add up to 4K30 wireless video transmission to your gimbal, mirrorless, or DSLR camera rig using the lightweight Mars 4K Wireless Video Receiver from Hollyland. The receiver provides HDMI and SDI outputs and features extremely low 66 ms latency with line-of-sight transmission up to 450' to an optional receiver.
The unit features a built-in frequency scanner to select the clearest frequency for your transmission. The Mars 4K receiver is compact in size, features a bright touchscreen LCD display for configuration, and is built with a corrosion-resistant housing. The unit can be powered using a USB-C source, the included locking DC power adapter, or by using a separately available L-series type battery using an optional battery plate.
Key Features
- Professional Video Receiver
- Receive up to UHD 4K30 Video up to 450'
- SDI & HDMI Outputs, 5 GHz Frequency Band
- Smart Channel Scanning, Touchscreen LCD
- Low 66 ms Latency, 12 Mb/s Data Rate
- DC, L-Series & USB-C Power Options
Specs
| Antenna I/O |
2 x RP-SMA Male
|
| Video I/O |
1 x HDMI Output
1 x BNC Output |
| Embedded Audio |
HDMI/SDI
|
| Audio I/O |
No
|
| Power I/O |
1 x Barrel Input
1 x USB-C Input |
| Wireless Range |
450' / 137.2 m (Line-of-Sight)
|
| Channel Bandwidth |
20 MHz
|
| Frequency Range |
US: 5.1 to 5.8 GHz
|
| Latency |
66 ms
|
| RF Power |
21 dBm
|
| RF Sensitivity |
-90 dBm
|
| Wi-Fi |
Wi-Fi 4 (802.11n)
|
| Bluetooth |
No
|
| Mobile App Compatible |
Yes
|
| Video Format |
HDMI
UHD 4K: 30 1080p: 60/30/24 SDI 1080p: 60/59.94/30/29.97/24/23.98 |
| Timecode Support |
Yes
|
| DC Input Power |
6 to 16 VDC
|
| Power Consumption |
8.5 W
|
| Environmental Protection |
No
|
| Operating Temperature |
14 to 140°F / -10 to 60°C
|
| Storage Temperature |
-40 to 140°F / -40 to 60°C
|
| Dimensions |
4.5 x 2.6 x 1.3" / 115 x 65 x 32 mm
|
| Weight |
7.9 oz / 223 g, Excluding Antenna
|
