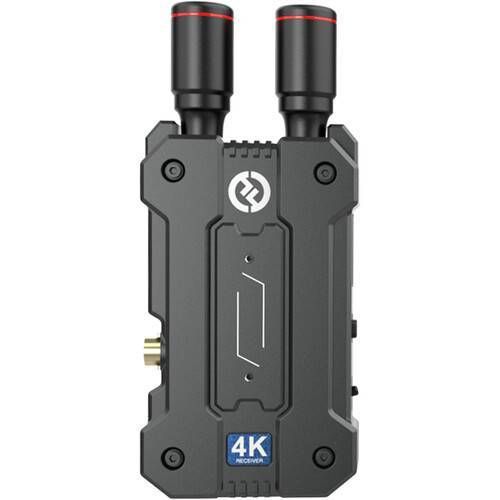

Add up to 4K30 wireless video transmission to your gimbal, mirrorless, or DSLR camera rig using the lightweight Mars 4K Wireless Video Receiver from Hollyland. The receiver provides HDMI and SDI outputs and features extremely low 66 ms latency with line-of-sight transmission up to 450' to an optional receiver.
The unit features a built-in frequency scanner to select the clearest frequency for your transmission. The Mars 4K receiver is compact in size, features a bright touchscreen LCD display for configuration, and is built with a corrosion-resistant housing. The unit can be powered using a USB-C source, the included locking DC power adapter, or by using a separately available L-series type battery using an optional battery plate.
Specs
Antenna I/O |
2 x RP-SMA Male
|
Video I/O |
1 x HDMI Output
1 x BNC Output |
Embedded Audio |
HDMI/SDI
|
Audio I/O |
No
|
Power I/O |
1 x Barrel Input
1 x USB-C Input |
Wireless Range |
450' / 137.2 m (Line-of-Sight)
|
Channel Bandwidth |
20 MHz
|
Frequency Range |
US: 5.1 to 5.8 GHz
|
Latency |
66 ms
|
RF Power |
21 dBm
|
RF Sensitivity |
-90 dBm
|
Wi-Fi |
Wi-Fi 4 (802.11n)
|
Bluetooth |
No
|
Mobile App Compatible |
Yes
|
Video Format |
HDMI
UHD 4K: 30 1080p: 60/30/24 SDI 1080p: 60/59.94/30/29.97/24/23.98 |
Timecode Support |
Yes
|
DC Input Power |
6 to 16 VDC
|
Power Consumption |
8.5 W
|
Environmental Protection |
No
|
Operating Temperature |
14 to 140°F / -10 to 60°C
|
Storage Temperature |
-40 to 140°F / -40 to 60°C
|
Dimensions |
4.5 x 2.6 x 1.3" / 115 x 65 x 32 mm
|
Weight |
7.9 oz / 223 g, Excluding Antenna
|
