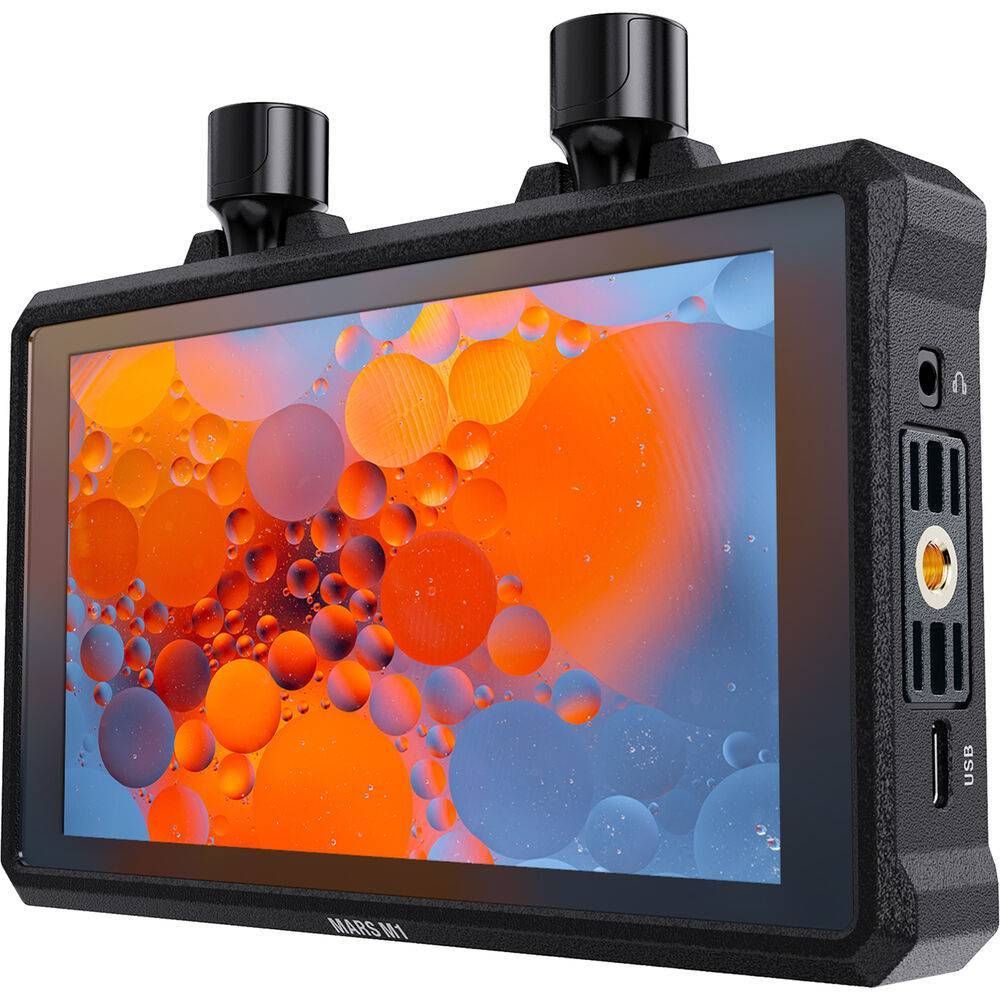

Transmit, receive, and monitor high-quality wireless video transmissions using this compact Mars M1 Enhanced 5.5" Wireless Transceiver Monitor from Hollyland. The Mars M1 Enhanced provides new features including a record/playback review feature that can review up to 2 minutes of video for instant review, and it features a new low-profile capsule antenna design. As with the original M1, it features a 5.5" touchscreen display that provides a sharp resolution and 1000 cd/m² brightness for follow focus and director's monitoring applications. Its built-in wireless transmitter and receiver allow you to send and receive video between M1 units as well as to/from the Mars 400S Pro, Mars 300 Pro, and Mars 4K wireless transmitters/receivers at a distance of up to 450'. You can also monitor video from the M1 Enhanced on smartphones and tablets running the companion HollyView app.
Specs
Panel Type |
LCD
|
Display Size |
5.5" / 14.0 cm
|
Resolution |
1920 x 1080
|
Aspect Ratio |
16:9
|
Touchscreen |
Yes
|
Image Controls |
Focus Peaking, Waveform
|
Antenna I/O |
2 x RP-SMA Male
|
Video I/O |
1 x HDMI (Unspecified Signal) Input
1 x BNC (3G-SDI) Input 1 x HDMI (Unspecified Signal) Loop Output |
Embedded Audio |
HDMI/SDI
|
Audio I/O |
1 x 1/8" / 3.5 mm Headphone Output
|
Power I/O |
1 x Barrel (16 VDC) Input
1 x Barrel Output |
Other I/O |
1 x USB-C (Firmware) Input
|
Encryption |
No
|
Wireless Range |
450' / 137.2 m (Line-of-Sight)
|
Channel Bandwidth |
20 MHz
|
Frequency Range |
US: 5.15 to 5.25 GHz
US: 5.25 to 5.35 GHz US: 5.47 to 5.725 GHz US: 5.725 to 5.85 GHz |
Latency |
No
|
RF Power |
21 dBm
|
Wi-Fi |
No
|
Bluetooth |
No
|
Mobile App Compatible |
Yes, Required: Android & iOS
App Name: HollyView Functionality: Adjust Settings, Firmware Update, Remote Control, Setup, View Live Feed *As of October, 2023: Check with manufacturer for the most up-to-date compatibility |
Cellular Support |
No
|
Video Format |
HDMI
DCI 4K: 30/29.97/25/24/23.98 UHD 4K: 30/29.97/25/24/23.98 1080p: 60/59.94/50/30/29.97/25/24 1080i: 60/59.94/50 720p: 60/59.94/50 SDI 1080p: 60/59.94/30/29.97/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 |
Wireless Video Compression |
Compressed
|
Timecode Support |
Yes
|
DC Input Power |
7 to 16 VDC
|
Battery Type |
1 x L-Series
|
Power Consumption |
16 W (Maximum)
|
