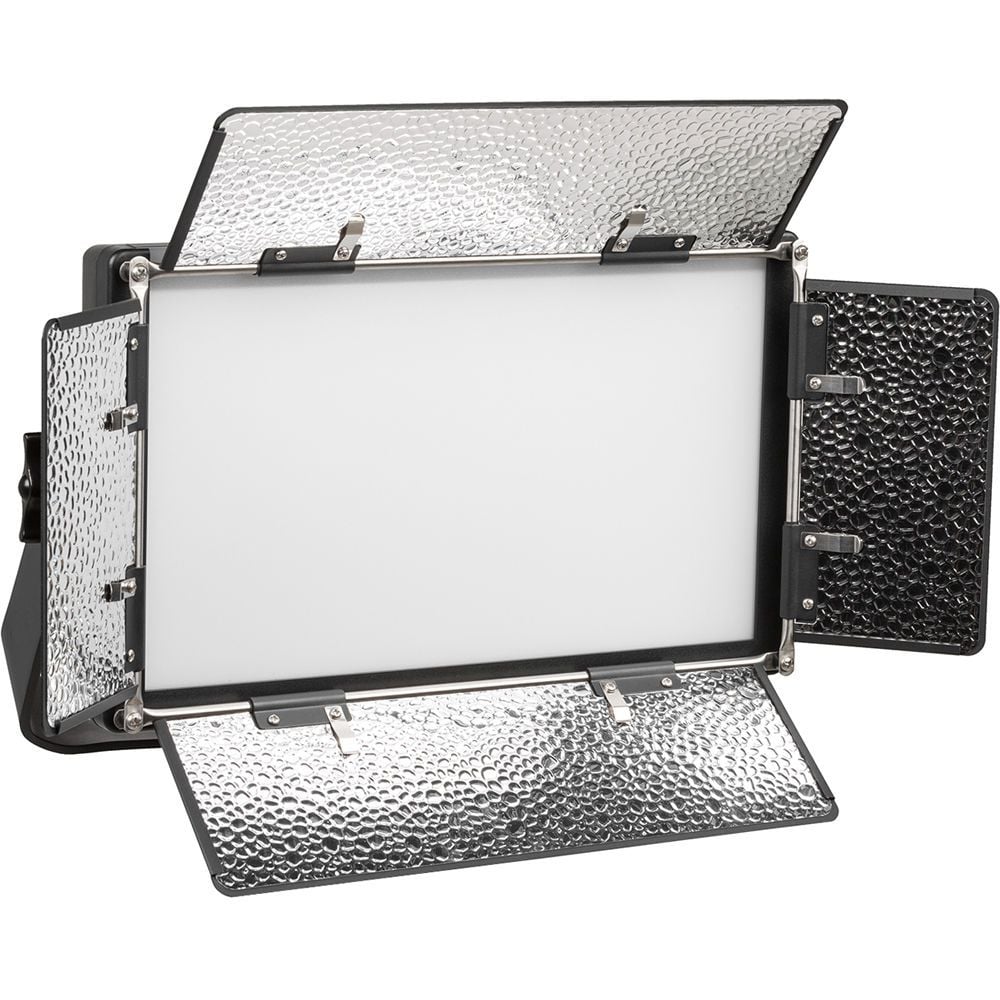

IKAN LBX5 LYRA HALF X 1 BI-COLOR STUDIO PANEL SOFT LED LIGHT W/ DMX CONTROL
The Lyra LBX5 Bi-Color Soft LED Panel (with DMX) from ikan is built into a heavy-duty molded plastic chassis providing a lightweight yet strong variable color fixture with enhanced features such as 100-10% flicker-free dimming locally or via DMX and an LCD display. It features an integrated 1/2 stop diffuser for extra softness, while its 510 LEDs produce a 110° beam spread with a high CRI of 96 and a TLCI of 98 for precise color rendering. The fixture produces a soft single-source shadow pattern owing to the integrated diffusion.
The Lyra employs a 110-220 VAC power supply for worldwide use, while the four-leaf barndoors provide control over light spill, and feature removable light intensifiers to suit your taste. The yoke is angled forward 30°, which allows you to open the barndoors all the way without hitting the yoke when the light is pointed straight forward. The fixture also has a combo Baby receiver/Junior pin on the yoke so you can mount it on a stand or hang it from a grid with optional clamps.
Ikan LBX5 Specs
| Item Type |
1x LED Light Panel
|
| Included Light Modifier |
1x Barndoors (Built-In)
|
| Included Filters |
Soft Diffusion (Built-In)
|
| Included Storage Case |
No
|
| Photometrics |
3200K:
106 fc / 1145 Lux at 3.3' / 1 m* 11 fc / 123 Lux at 9.8' / 3 m 5600K: 123 fc / 1327 Lux at 3.3' / 1 m* 13 fc / 140 Lux at 9.8' / 3 m *Standardized Measurement Calculated Internally Based on Closest Distance |
| Color Temperature |
3200 to 5600K
|
| Color Accuracy Standard |
CRI 96 at 3200K
CRI 96 at 5600K TLCI 98 at 3200K TLCI 98 at 5600K |
| Dimming |
Built-In Dimmer
|
| Cooling System |
Passive
|
| Beam Angle |
110°
|
| Built-In Flash |
No
|
| Preprogrammed Effects |
No
|
| Umbrella Mount |
No
|
| Front Accessory Mount |
Proprietary
|
| Mobile App Compatible |
No
|
| Power Source |
AC to DC Adapter (Included)
|
| Inputs/Outputs |
1x XLR 4-Pin Power Input
1x XLR 5-Pin DMX Input 1x XLR 5-Pin DMX Output |
| Input Power |
110 to 220 VAC, 50 / 60 Hz
18 VDC |
| Included Adapter / Cable |
1x USA Type-A/B to XLR 4-Pin AC to DC Adapter
• 15 VDC |
| Inline Switch |
No
|
| Power Pass-Thru |
No
|
| Power Consumption |
51 W
|
| Yoke Type |
Manually-Operated Yoke
|
| Fixture Mounting |
1x 1-1/8" Stud with 5/8" Receiver (Via Yoke Mount)
|
