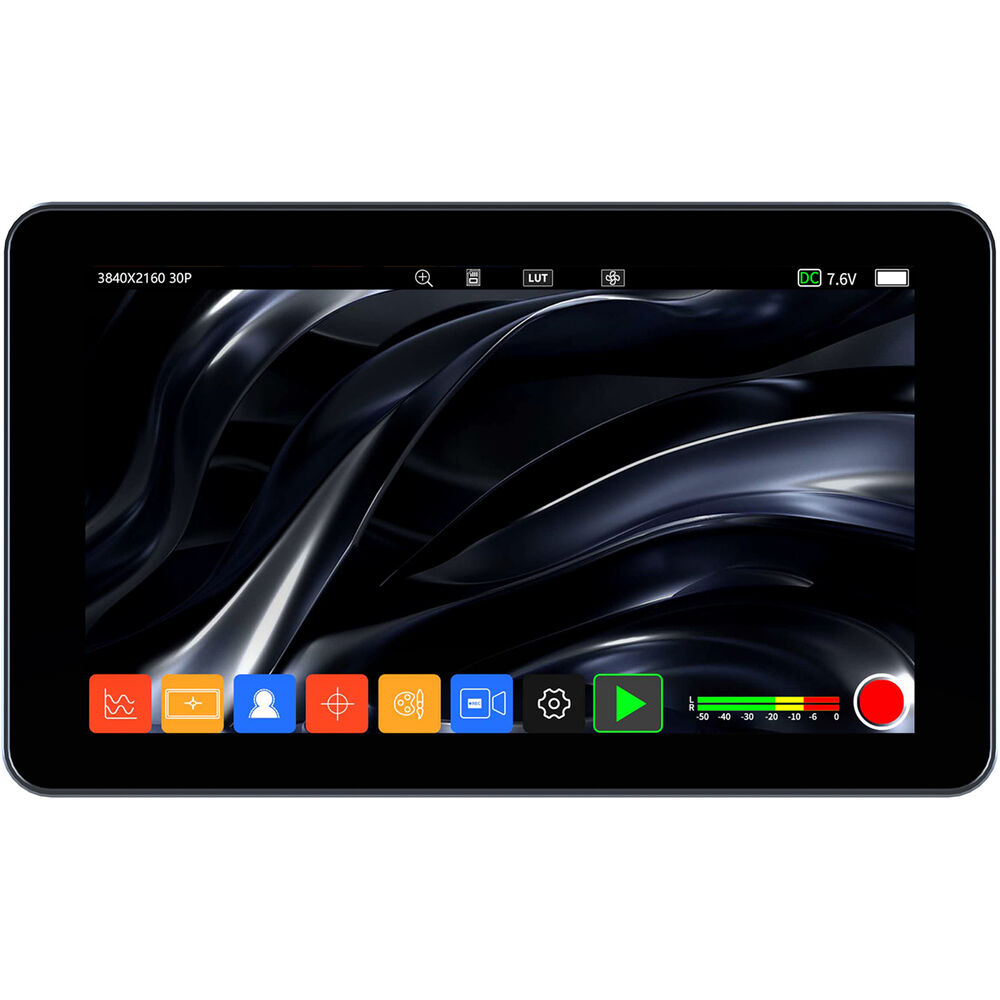

The Memory I 5.5" 4K HDMI Touchscreen Recorder/Monitor from Shimbol enables you to view up to DCI 4K25 input and capture 1080p60 video with an applied 3D LUT. This monitor features a 5.5" 1920 x 1080 touchscreen display, one HDMI 2.0 input, and a 3.5mm headphone jack for outputting embedded audio. Monitor features include 2000 cd/m² brightness, HDR and 3D LUTs, a luma waveform, vectorscope, zoom, focus peaking, and additional display functions.
Specs
Panel Type |
LCD
|
Display Size |
5.5" / 14.0 cm
|
Resolution |
1920 x 1080
|
Aspect Ratio |
16:9
|
Touchscreen |
Yes
|
Maximum Brightness |
2000 nits / cd/m2
|
Contrast Ratio |
1200:1
|
HDR Compatibility |
Hybrid Log Gamma
|
Pixels Per Inch (ppi) |
400 ppi
|
Real-Time LUT Monitoring |
HDR
|
Image Controls |
False Color, Focus Peaking, Histogram, RGB Parade, Vectorscope, Waveform, Zebra
|
Video I/O |
1 x HDMI Input
1 x HDMI Output |
Embedded Audio |
HDMI
|
Audio I/O |
1 x 1/8" / 3.5 mm Headphone Output
|
Built-In Speaker |
None
|
Media/Memory Card Slot |
Single Slot: SD/SDHC/SDXC
|
Wi-Fi |
None
|
Bluetooth |
None
|
Mobile App Compatible |
No
*As of January, 2023: Check with manufacturer for the most up-to-date compatibility |
Video Format |
HDMI
DCI 4K: 25/24/23.98 UHD 4K: 30/29.97/25/24/23.98 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 |
Gamma Curve |
Rec709
|
Timecode Support |
Yes
|
Pulldown Conversion |
None
|
Camera Trigger |
None
|
Pre-Roll Record |
None
|
Encoding Formats |
Up to 1920 x 1080
H.264 8-Bit 4:2:2 at up to 60 fps |
DC Input Power |
6.5 to 16.8 VDC
|
Built-In Battery |
None
|
Battery Type |
1 x L-Series
|
Power Consumption |
9 W (Maximum)
|
Mounting |
1 x 1/4"-20 Female
|
