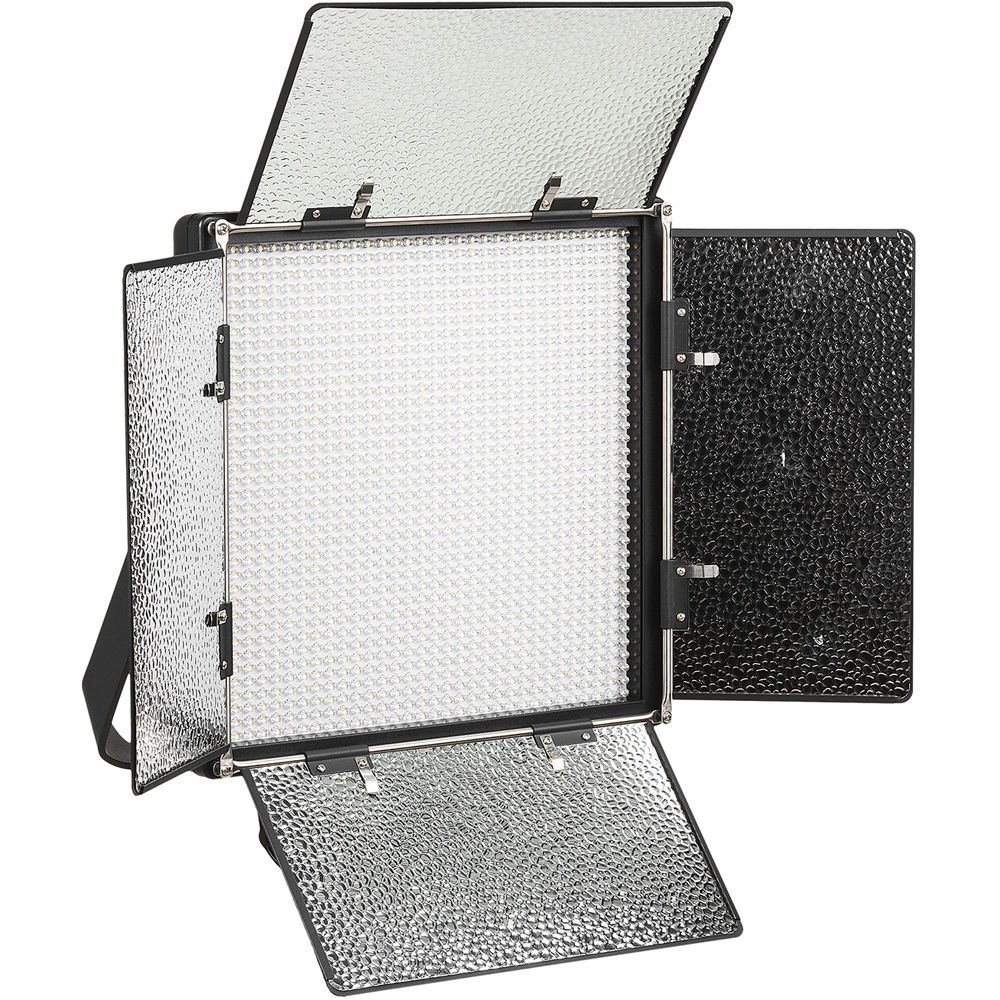

IKAN RBX10 RAYDEN 1 X 1 BI-COLOR STUDIO LIGHT W/ DMX CONTROL
The Rayden RBX10 1 x 1 Bi-Color Studio LED Light with DMX from ikan employs s heavy-duty molded resin chassis to provide a lightweight yet rugged fixture with enhanced features such as flicker-free dimming, an LED display and onboard DMX for remote control of light intensity as well as color temperature from 3200 to 5600K. You can also make these changes on the unit with a single knob, while your settings are displayed on an the LED screen. Known for its power, the Rayden's 1184 LEDs produce a tight 50° beam spread with a high CRI and TLCI and output the tungsten equivalent of 800W while drawing only 71W and running barely warm to the touch. That translates to a comfortable shoot for the talent and a quick return on your investment.
The RBX10's four-leaf barndoors provide selective control of the beam while containing spill light. The barndoors feature textured silver light intensifiers to maximize output. The yoke is angled forward 30°, which allows you to open the barndoors all the way without hitting the it when the light is pointed straight forward. The RBX10 also has a combo baby receiver / junior pin on the yoke so you can mount it on a stand or hang it from a grid with optional clamps.
Ikan RBX10 Specs
| Item Type |
1x LED Light Panel
|
| Included Light Modifier |
1x Barndoors
|
| Included Storage Case |
No
|
| Photometrics |
3200K:
663 fc / 7143 Lux at 3.3' / 1 m* 294 fc / 3175 Lux at 4.9' / 1.5 m 70 fc / 764 Lux at 9.8' / 3 m 5600K: 697 fc / 7506 Lux at 3.3' / 1 m* 309 fc / 3336 Lux at 4.9' / 1.5 m 73 fc / 789 Lux at 9.8' / 3 m *Standardized Measurement Calculated Internally Based on Closest Distance |
| Color Temperature |
3200 to 5600K
|
| Color Modes |
Daylight, Tungsten
|
| Color Accuracy Standard |
CRI 97 at 3200K
CRI 96 at 5600K TLCI 97 at 3200K TLCI 98 at 5600K |
| Dimming |
Built-In Dimmer
|
| Cooling System |
Passive
|
| Beam Angle |
50°
|
| Built-In Flash |
No
|
| Preprogrammed Effects |
No
|
| Umbrella Mount |
No
|
| Front Accessory Mount |
Proprietary
|
| Mobile App Compatible |
No
|
| Power Source |
AC to DC Adapter (Included)
|
| Inputs/Outputs |
1x XLR 4-Pin Power Input
1x XLR 5-Pin DMX Input 1x XLR 5-Pin DMX Output |
| Input Power |
110 to 220 VAC, 50 / 60 Hz
14 to 18 VDC |
| Included Adapter / Cable |
1x USA Type-A/B to XLR 4-Pin AC to DC Adapter
• 15 VDC |
| Inline Switch |
No
|
| Power Pass-Thru |
No
|
| Power Consumption |
71 W
|
| Yoke Type |
Manually-Operated Yoke
|
| Fixture Mounting |
1x 1-1/8" Stud with 5/8" Receiver (Via Yoke Mount)
|
| Display |
No
|
| Environmental Resistance |
No
|
| Materials |
Resin (Housing)
|
| Dimensions |
14 x 14 x 3" / 35.5 x 35.5 x 7.6 cm (Fixture)
|
| Weight |
6 lb / 2.7 kg
|
