SHURE AD610 SHOWLINK® 2.4 GHZ ACCESS POINT, WITHOUT POWER SUPPLY

Shure
SKU
SHU-AD610
MFR#
AD610
was $635.00 Special Price $508.00
Availability: Out of stock

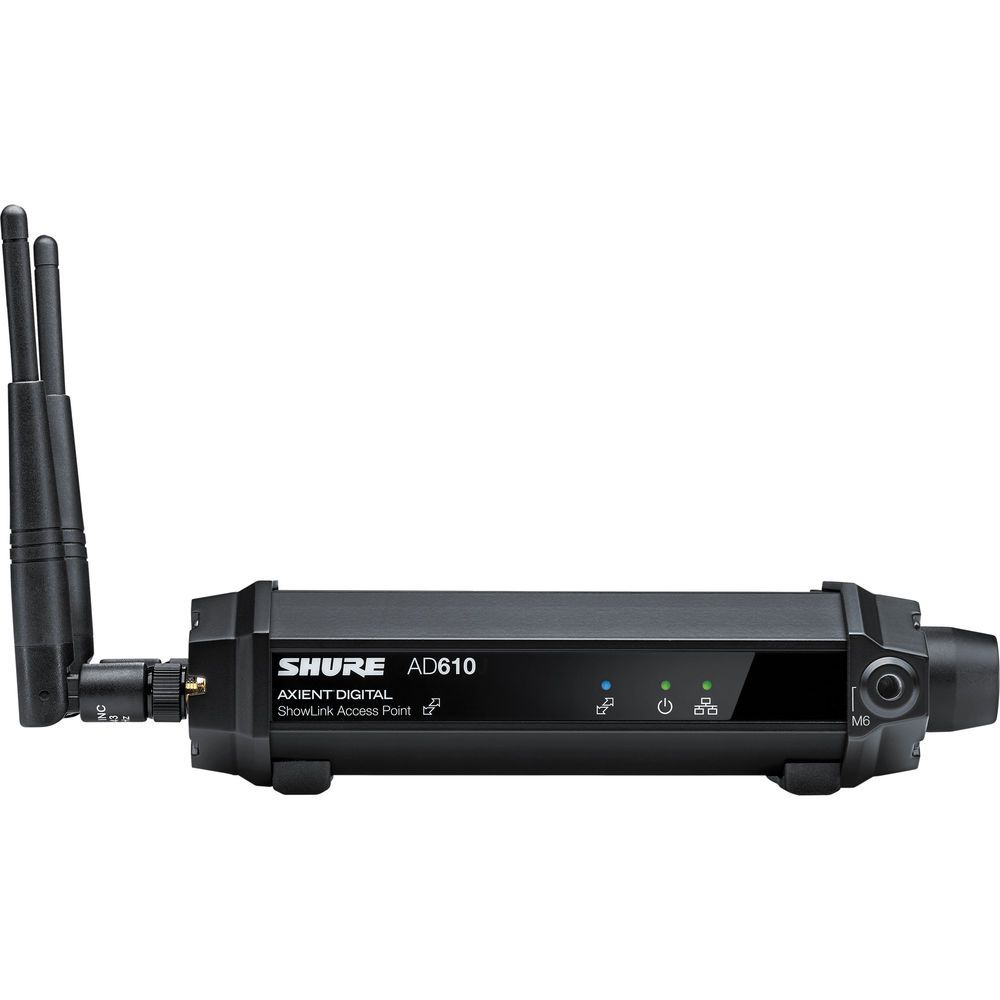

SHURE AD610 SHOWLINK® 2.4 GHZ ACCESS POINT, WITHOUT POWER SUPPLY
Be the first to review this product
Add to Wish List:

SPECIAL SHIPPING RATES

On orders over $1000

WHOLESALING PRICING

Ask us how to become a Wholesaler

SECURED PAYMENT

Guaranteed safe payment options

The AD610 ShowLink Wireless Access Point from Shure enables real-time remote control of all ShowLink-enabled Axient transmitters, including both ADX and AXT series models. The access point allows comprehensive management of transmitter parameters from the receiver or Wireless Workbench using 2.4 GHz (IEEE 802.15.4) wireless communication. All parameter changes occur without interruption to the performer.

Multiple access points can extend the operational range or increase the number of transmitters supported on the ShowLink network. The access point features true diversity antenna inputs along with mounting points for 1/4"-20 and M6 x 1.0 threads. A power supply is not included.

Your Rating
Features:
  • For ADX and AXT Transmitters
  • 2.4 GHz Wireless Communication
  • Up to 24 Transmitters per Access Point

Specifications:

Antennas
2 x Omnidirectional 2.4 GHz
Capacity
24 Axient ShowLink transmitters (AXT or ADX models)
Network Type
IEEE 802.15.4
Frequency Range
2.40 to 2.4835 GHz (16 channels)
RF Output Power
10 dBm ERP / 20 dBm ERP
Working Range
500 to 1600' / 150 to 500 m
Antenna Connector
2 x SMA
Antenna Impedance
50 Ohms
RF Sensitivity
-106 dBm, typical (integrated antenna)
Network Interface
Ethernet 10/100 Mb/s
Network Addressing Capability
DHCP or manual IP address
Mounting
WA371 microphone clip or 1/4"-20 thread mount
Power Requirement
Power over Ethernet (PoE) Class 1: 36 to 57 VDC/VAC
External Power Supply: 15 VDC, 600 mA, double insulated
Certifications
WEEE Directive 2002/96/EC, as amended by 2008/34/EC
RoHS Directive 2011/65/EU
Housing
Extruded aluminum
Protection Rating
IPX3
Operating Temperature
0 to 140°F / -18 to 60°C
Storage Temperature
-20 to 165°F / -29 to 74°C
Dimensions
7.4 x 4.0 x 1.8" / 19.0 x 10.2 x 4.7 cm without antennas
Weight
16.3 oz / 464 g without antennas
