LIBEC QD-10 TRIPOD SYSTEM WITH FLOOR SPREADER INCL: QH1-HEAD / T150B -TRIPOD / SP-15B- SPREADER PAYLOAD 40 KG/ 88 LB
SKU
LIB-QD-10
MFR#
QD-10
was
$10,130.00
Special Price
$9,119.00
Availability:
Out of stock
LIBEC QH1 / T150B / SP-15B

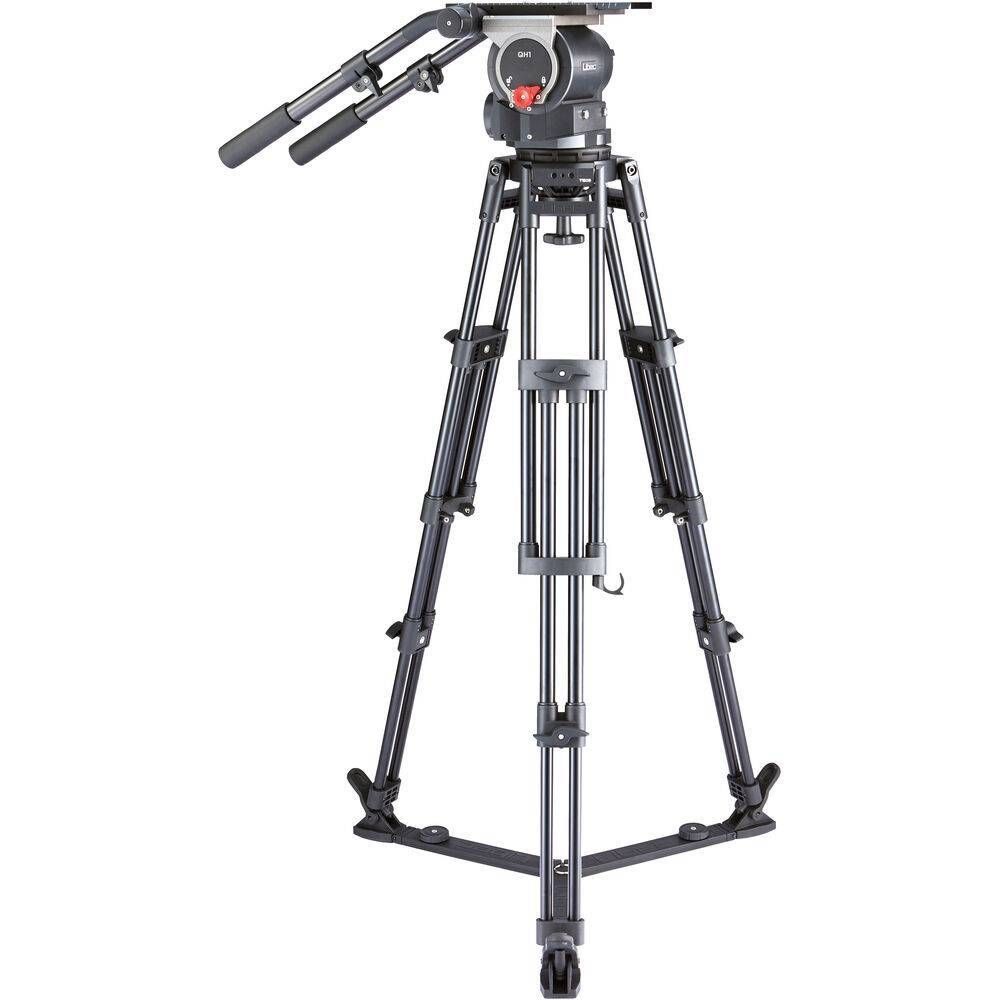

The Libec QD-10 Tripod System features the pedestal-capable QH1 4-bolt flat base fluid head and the T150B 2-stage aluminum tripod. The system is complete with the SP-15B Ground Spreader, which has individually adjustable arms. The QH1 head attaches to the tripod via an included 150mm half-ball adapter and supports up to 88 lb. It has a side-mount camera plate system and comes with two telescoping pan bars. For attaching accessories, the T150B tripod offers a total of six 1/4"-20 and 3/8"-16 mounting threads around the bowl base.
Key Features
- QH1 4-Bolt Flat Base Fluid Head
- T150B 2-Stage Aluminum Tripod
- 88 lb Payload, 32.5-73.5" Height Range
- SP-15B Ground Spreader
- 150mm Half-Ball Adapter
- Side-Mount Camera Plate System
- Two 2-Piece Telescoping Pan Bars
- Continuous Counterbalance
- 7-Step Drag
- Made in Japan
Libec QH1
| Camera Plate Features |
Sliding Balance Plate
|
| Camera Mounting Screw |
2 x 3/8"-16 Male
|
| Balance Plate Sliding Range |
2.95" / 75 mm
|
| Base Mount |
4-Bolt Flat Base
|
| Counter Balance |
Continuous (33 to 77 lb / 14.97 to 34.93 kg)
|
| Center of Gravity |
4.92" / 125 mm
|
| Bubble Level |
1 x Illuminated
|
| Drag Control |
7-Step
|
| Vertical Tilt |
+90° to -70°
|
| Independent Pan Lock |
Yes
|
| Independent Tilt Lock |
Yes
|
| Load Capacity |
88 lb / 39.92 kg
|
| Operating Temperature |
12 to 92°F / -20 to 60°C
|
| Weight |
27.9 lb / 12.66 kg
|
Libec T150B
| Head Mount Type |
150 mm Bowl
|
| Maximum Working Height |
64" / 162.56 cm
|
| Minimum Working Height |
23" / 58.42 cm
|
| Closed Length |
Not Specified by Manufacturer
|
| Materials |
Aluminum
|
| Weight |
14.5 lb / 6.58 kg
|
| Leg Lock Type |
Twist Lock
|
| Leg Sections |
3
|
| Feet Features |
Spiked
|
| Spreader |
(Not Included)
|
