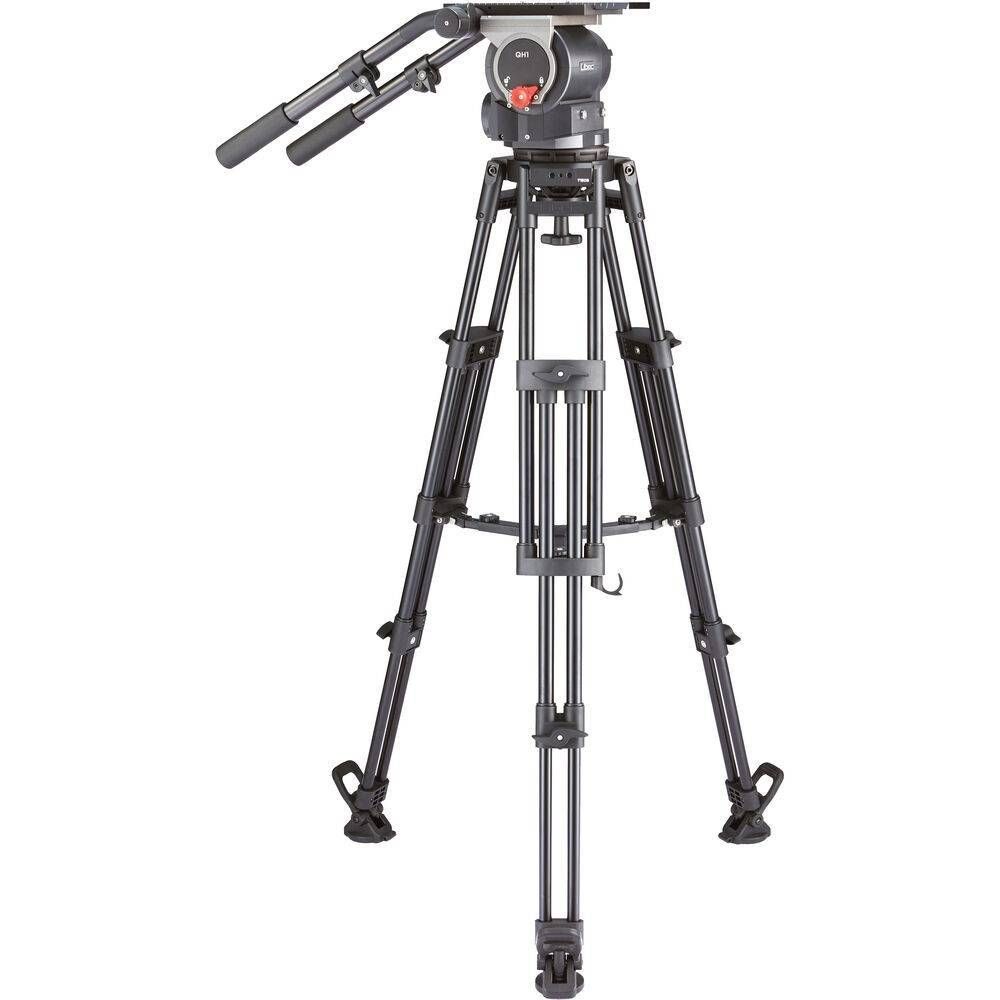

The Libec QD-10M Tripod System features the pedestal-capable QH1 4-bolt flat base fluid head and the T150B 2-stage aluminum tripod. The system is complete with a telescoping mid-level spreader and large rubber foot pads. The QH1 head attaches to the tripod via an included 150mm half-ball adapter and supports up to 88 lb. It has a side-mount camera plate system and comes with two telescoping pan bars. For attaching accessories, the T150B tripod offers a total of six 1/4"-20 and 3/8"-16 mounting threads around the bowl base.
Libec QH1
Camera Plate Features |
Sliding Balance Plate
|
Camera Mounting Screw |
2 x 3/8"-16 Male
|
Balance Plate Sliding Range |
2.95" / 75 mm
|
Base Mount |
4-Bolt Flat Base
|
Counter Balance |
Continuous (33 to 77 lb / 14.97 to 34.93 kg)
|
Center of Gravity |
4.92" / 125 mm
|
Bubble Level |
1 x Illuminated
|
Drag Control |
7-Step
|
Vertical Tilt |
+90° to -70°
|
Independent Pan Lock |
Yes
|
Independent Tilt Lock |
Yes
|
Load Capacity |
88 lb / 39.92 kg
|
Operating Temperature |
12 to 92°F / -20 to 60°C
|
Weight |
27.9 lb / 12.66 kg
|
Libec T150B
Head Mount Type |
150 mm Bowl
|
Maximum Working Height |
64" / 162.56 cm
|
Minimum Working Height |
23" / 58.42 cm
|
Closed Length |
Not Specified by Manufacturer
|
Materials |
Aluminum
|
Weight |
14.5 lb / 6.58 kg
|
Leg Lock Type |
Twist Lock
|
Leg Sections |
3
|
Feet Features |
Spiked
|
Spreader |
(Not Included)
|
Libec BR-6B
Sliding Range |
7.0-10.3" / 17.8-26.2 cm
|
Folded Length |
7" / 17.8 cm
|
Weight |
0.6 lb / 0.3 kg
|
