LINEAR ACOUSTIC AERO.10 PN 2001-00431-000 AERO AUDIO PROCESSOR
SKU
LIN-AERO.10
MFR#
2001-00431-000
was
$7,995.00
Special Price
$7,196.00
Availability:
Out of stock
LINEAR ACOUSTIC AERO.10 PN 2001-00431-000 AERO AUDIO PROCESSOR
Hybrid dynamic range and loudness control with Advanced ITU Limiter provide set-and-forget compliance and viewer-pleasing quality while included features deliver incredible cost-savings.
Handling up to 10 channels of PCM audio via AES, HD/SD-SDI, or analog stereo I/O, the Linear Acoustic® AERO.10 offers all-inclusive audio processing for situations where Dolby® coding, Nielsen® Watermark encoding, and the ability to add a second processing instance are not required.
Standard configurations are your choice of either a 5.1+2+2 or 2+2+2 channel configuration; a 2+2+2+2+2 channel configuration is optional.
AERO.10 Features
-
Linear Acoustic AEROMAX® loudness and dynamics control
-
UPMAX® II automatic upmixing and downmixing
-
Advanced ITU (AI) Limiter
-
Available in either a 5.1+2+2 or 2+2+2 channel configuration, or optionally, in a 2+2+2+2+2 channel configuration for processing up to 5 stereo programs
-
Auto SAP replacement can send main program downmix to SAP channel when no SAP audio is present
-
HD/SD-SDI I/O with included video delay
-
8 channels of AES I/O with reference input
-
Balanced +4dBu stereo analog inputs and outputs
-
Dual power supplies, autoranging for simple worldwide operation
-
Relay bypass of all I/O
-
Front panel GUI plus extensive TCP/IP and HTTP control
-
Logging of loudness and True Peak data
AERO.10 Specifications
Processing
-
Available in either a 5.1+2+2 or 2+2+2 channel configuration with Local/EAS insertion, or optionally in a 2+2+2+2+2 channel configuration for up to 5 stereo programs.
-
Dual UPMAX II two-channel to 5.1 channel upmixers plus main channel downmixing, automatic bypass of discrete content (in 5.1+2+2 configuration, downmix only in 2+2+2 processing configuration)
-
Advanced ITU (AI) Limiter
Sample Rate/Resolution/Frequency Response
- 48kHz, 24-bit, 20Hz to 20kHz below threshold

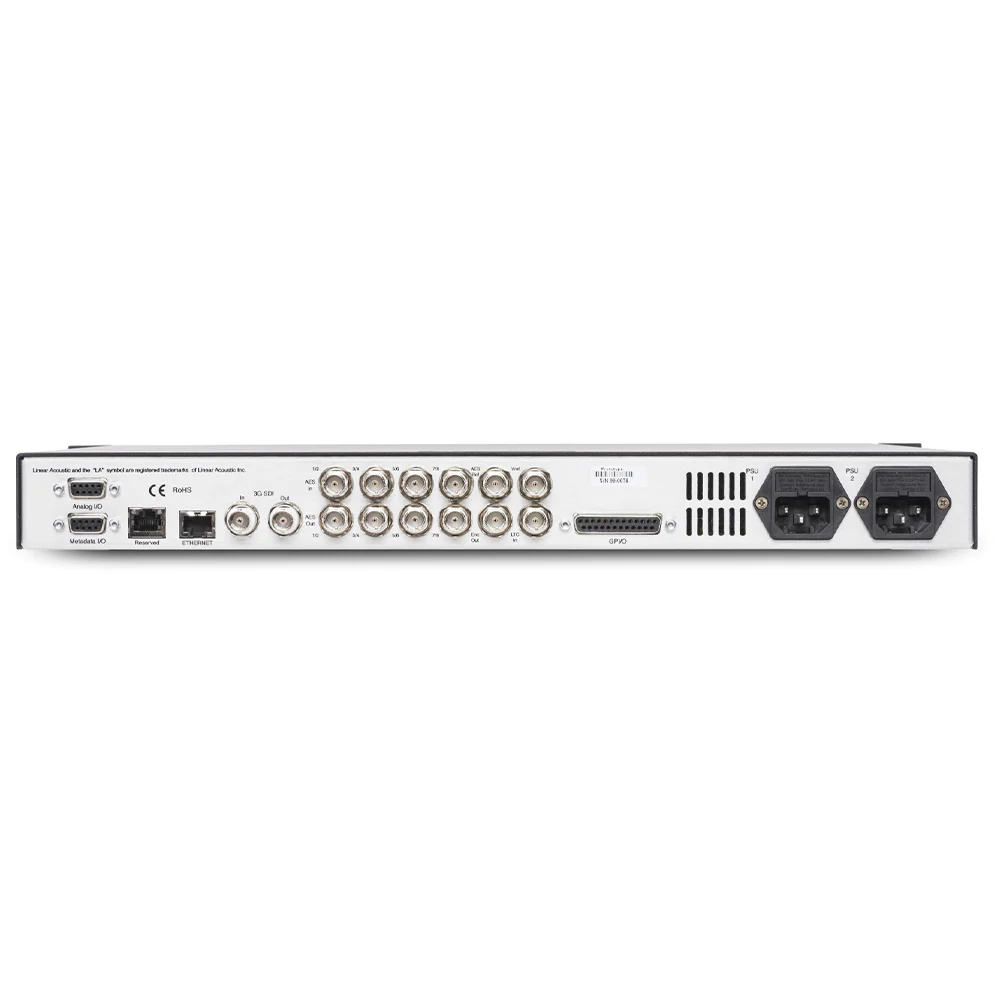

AES I/O
- Eight main inputs plus reference via 75-Ohm BNC female connectors, internally terminated; Eight main outputs; Signal levels per SMPTE 276M/AES-3ID-2001
SDI I/O
- Auto-sensing HD/SD-SDI (SMPTE 292M/259M) inputs, up to 1080i/60/59.94/50Hz, access to audio and VANC metadata
Analog I/O (stereo)
- 9-pin female D connector; 10K Ohm balanced stereo inputs; Balanced stereo outputs, +4dBu nominal,
+24dBu maximum into 600 Ohms.
Parallel GPI/O Control Port
- 25-pin female D connector, 0-5V TTL levels for 8 inputs and 8 outputs; controls simple preset recalls plus voiceover/EAS insertion
Ethernet Remote Control
- Gigabit Ethernet supports included TCP/IP remote control application; HTTP server included for get/
set control of all parameters.

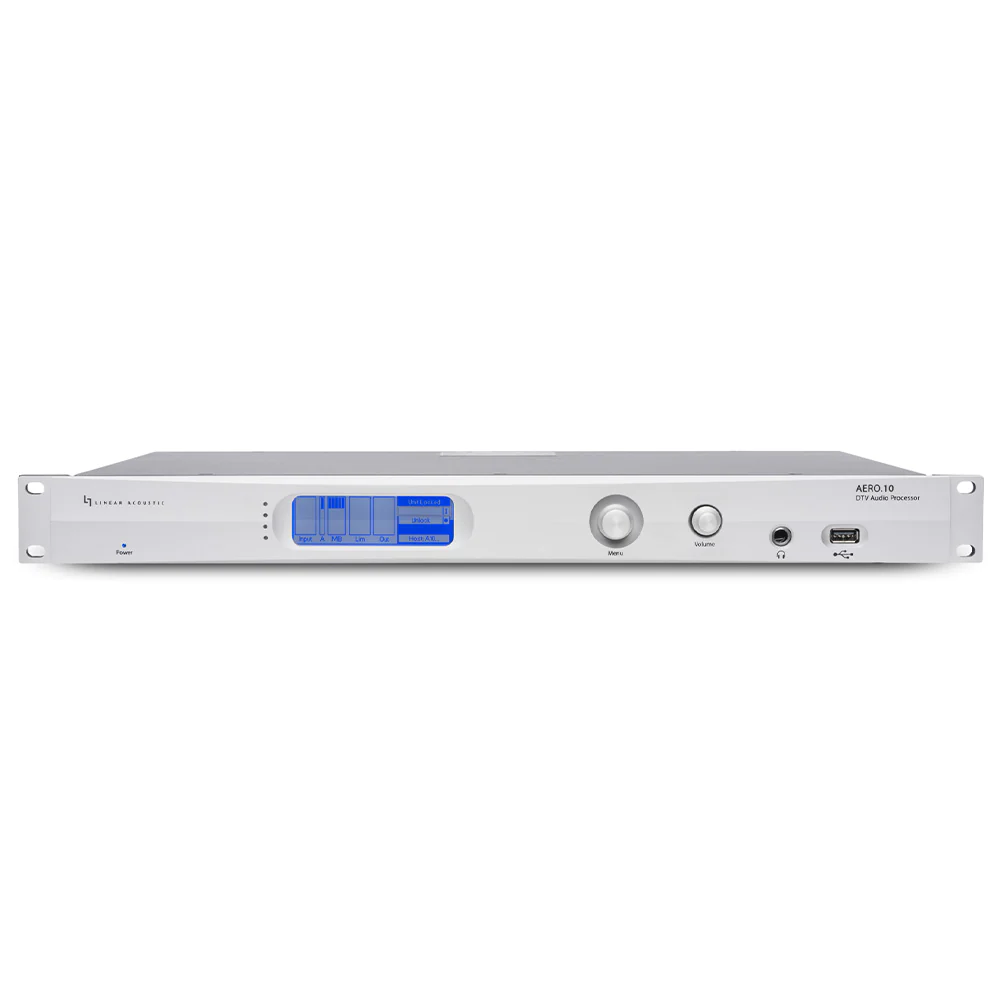

Front Panel Controls and Indicators
-
Rotary navigation cluster, Graphical LCD display, headphone volume control
-
6.3mm front panel headphone connector, +12dBu Max into 600 Ohms
Serial Metadata
- 9-pin female D connector; 115.2 kbps; pinout per SMPTE 207M (RS-485); Designed to directly interface with Dolby serial metadata (SMPTE RDD6)
Power Requirements
- Dual power supplies, each rated at 100-264 VAC, 50/60Hz, auto-sensing, 100W max. total
Dimensions and Weight
- One rack unit- 1.75”H x 19”W x 15.5”D (44 x 483 x 394 mm) Net weight: 9 lbs (4 kg); shipping: 12 lbs
(5.4 kg) approximate.
Environmental
- Fan cooled. Operating: 0 to 50 degrees C, non-operating –20 to 70 degrees C.
Regulatory
North America: FCC and CE tested and compliant, power supply is UL approved.
Europe: Complies with the European Union Directive 2002/95/EC on the restriction of the use of certain hazardous substances in electrical and electronic equipment (RoHS), as amended by Commission Decisions 2005/618/EC, 2005/717/ EC, 2005/747/EC (RoHS Directive), and WEEE.
