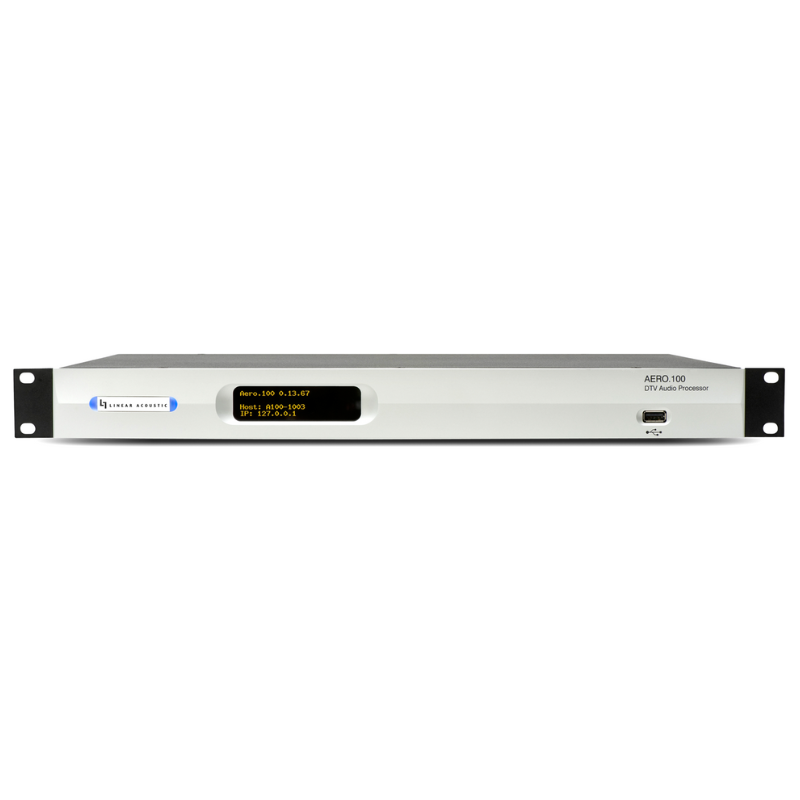

LINEAR ACOUSTIC AERO.100 PN 2001-00491-000 AUDIO PROCESSING PLATFORM

AERO.100 Features

• Compact, space-efficient 1RU loudness management platform

• Capable of hosting one or two AEROMAX® processing instances in AMX5.1, AMX2.0 or AMX5x2 configurations

• UPMAX®-II upmixing/downmixing with automatic detection and automatic downmix replacement

• Advanced ITU limiter to ensure compliance with the strictest loudness regulations

• Support for SAP/DVS

• Local audio insertion/replacement for EAS and local emergency audio

• Available Dolby® Digital/Dolby Digital Plus transcoding

• Available Nielsen® watermark encoding including N2, N6, and CBET

• Supports 8 audio pairs via SDI I/O with SDI video delay

• Supports 4 audio pairs via AES

• Dual power supplies and failover bypass relays

• Extensive TCP/IP remote control and configuration via NfRemote or http

AERO.100 Specifications

Processing

• One or two instances of AEROMAX® real time adaptive wideband and/or multiband processing including an advanced ITU limiter (at least one instance required)

• UPMAX®-II 2-channel to 5.1-channel upmixing/downmixing with automatic detection and automatic downmix replacement

• Auto SAP replacement can send main program downmix to SAP channel when no SAP audio is present

Audio Encoding/Decoding

• Available Dolby® Digital/Dolby Digital Plus transcoding

• Available Nielsen® watermark encoding including N2, N6, and CBET

Reference

• 48kHz via AES DARS (or any AES signal applied to the Ref In connector), AES In 1, SDI, or from the internal 48kHz clock (standalone use only)

Sample Rate/Resolution/Frequency Response

• 48kHz, 24-bit, 20Hz to 20kHz below threshold

AES I/O

• Eight main inputs plus reference via 75-Ohm BNC female connectors. Eight main outputs plus encoder output. All digital inputs are 75 Ohm internally terminated, unbalanced. Signal levels per SMPTE
  276M/ AES-3ID-2001

HD/SD-SDI I/O

• Auto-sensing HD/SD-SDI (SMPTE 292M/259M) inputs, up to 1080i/60/59.94/50Hz. De-embed up to 16 channels from applied SDI signal, process and/or encode, re-embed up to 16 channels. Supports SMPTE 2020 A and B VANC metadata

Parallel GPI/O Control Port

• 25-pin female D connector, 0-5V TTL levels for 8 inputs and 8 outputs; controls simple preset recalls plus voiceover/EAS insertion

Serial Metadata Input

• 9-pin female D connector; 115.2 kbps; pinout per SMPTE 207M (RS-485); Designed to directly interface with Dolby serial metadata (SMPTE RDD6)

Ethernet

• Gigabit Ethernet via RJ45 supports included TCP/IP remote control application; HTTP server included for get/set control of all parameters

Remote Control

• Windows®-compatible TCP/IP remote control Included application for full setup and control, ITU-R BS.1770 metering for all programs, encoder statistics, and return audio for remote monitoring (network speed permitting). HTTP server allows get/set control from PC

Front Panel Controls and Indicators

• Graphical OLED display

Power Requirements

• Dual power supplies, each rated at 100-264 VAC, 50/60Hz, auto-sensing, 150W max. total

Dimensions and Weight

• 1RU - 1.75”H x 19”W x 15.5”D (44 x 483 x 394 mm)

• Net weight: 9 lbs. (4 kg), approximate.

Shipping Dimensions and Weight

• 22”W x 20”D x 7”H (559 x 508 x 178 mm)

• Net weight: 15 lbs. (6.80 kg), approximate.

Environmental

• Fan cooled. Operating: 0 to 50 degrees C, non-operating -20 to 70 degrees C

Regulatory

North America: FCC and CE tested and compliant, power supply is UL approved.

Europe: Complies with the European Union Directive 2002/95/EC on the restriction of the use of certain hazardous substances in electrical and electronic equipment (RoHS), as amended by Commission Decisions 2005/618/EC, 2005/717/ EC, 2005/747/EC (RoHS Directive), and WEEE.
