PANASONIC AW-RP150GJ REMOTE CAMERA CONTROLLER WITH 7 INCH TOUCHSCREEN FEATURES :
SKU
PAN-AW-RP150GJ5
MFR#
AW-RP150GJ5
$3,476.00
Availability:
Out of stock

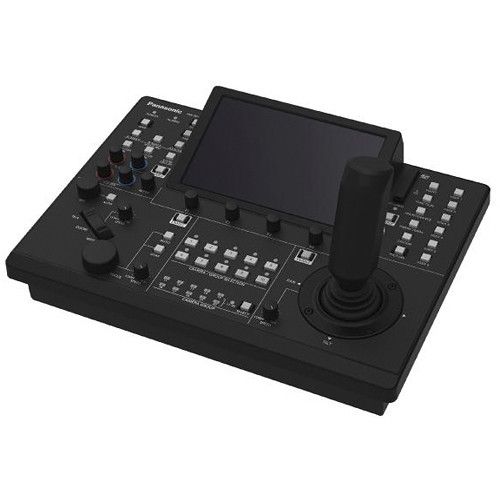

PANASONIC AW-RP150GJ REMOTE CAMERA CONTROLLER WITH 7 INCH TOUCHSCREEN FEATURES :
Panasonic's Touchscreen Remote Camera Controller allows you to control up to 200 compatible Panasonic PTZ cameras over IP via a switching hub. Or you can control five cameras via direct RS-422 connection. Please see the list of supported cameras in the Features section below. The controller features a zoom/focus rocker on the joystick for pan and tilt operations, many onboard buttons, and additional controls within the 7" touchscreen LCD. It also has an SD card slot, which allows saving scene files, system settings files, and other camera settings as well as copying settings over to other cameras. The controller can be powered over Power-over-Ethernet or a 12V, 4-pin XLR power supply, sold separately.
Key Features
- Control up to 200 Compatible PTZ Cameras
- Serial Control 5 Cameras Directly
- Zoom/Focus Rocker Joystick
- Touch Panel GUI, Touch Focus & More
Panasonic AW-RP150GJ Specs
| Number of Supported Cameras |
200 Channels via IP
5 Channels via RS-422 |
| Control I/O |
1x RJ45 (LAN)
|
| Other I/O |
2x D-Sub 25-Pin (GPI, Tally)
5x RJ45 (RS-422, Tally) |
| Video I/O |
1x BNC (3G-SDI) Input
1x BNC (3G-SDI) (Loop Output) |
| Controls |
10x Camera Selection Buttons
|
| Memory Card Slot |
1 x SDXC
|
| Display Size |
7"
|
| Native Resolution |
800 x 480
|
| Touchscreen |
Yes
|
| PoE Support |
PoH 802.3at
|
| Power Connectors |
1x XLR 4-Pin
|
| DC Input Power |
10.8 to 13.2 VDC at 1 A
|
| Operating Temperature |
32 to 104°F / 0 to 40°C
|
| Storage Temperature |
-4 to 122°F / -20 to 50°C
|
| Operating Humidity |
20 to 90%
|
